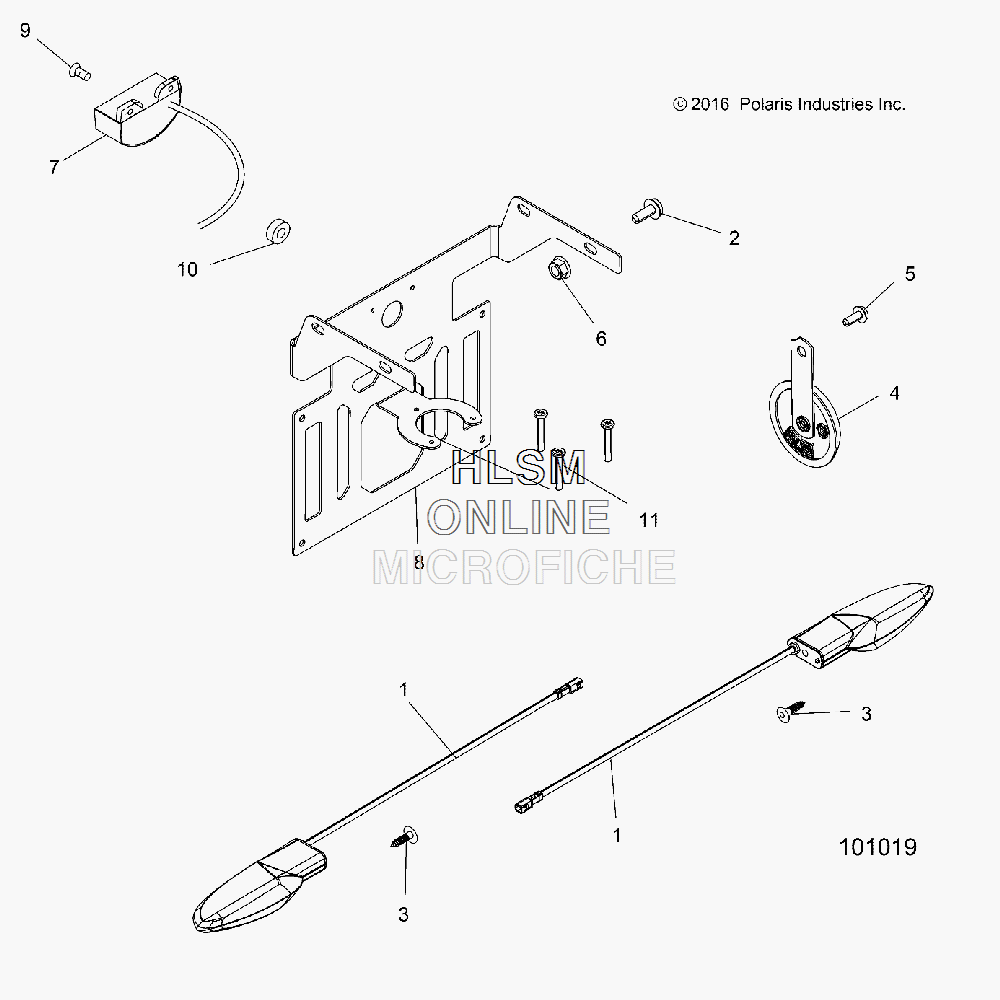

TURN SIGNALS- HORN- AND LICENSE PLATE LIGHT для Polaris SPORTSMAN TOURING 570 EPS WHITE LIGHTING [A17SDS57E2] - 2017 года выпуска
-
№АртикулНазвание
-
12413531 SIGNAL-TURN,FRONT,TRSIGNAL-TURN,FRONT,TR
-
27518341 SCR-HXFL-5/16-18X0.75 GR5 ZY3SCR-HXFL-5/16-18X0.75 GR5 ZY3
-
37518546 SCR-M6X1.0X20MM,TX,PH,8.8-BSCR-M6X1.0X20MM,TX,PH,8.8-B
-
44011579 HORNHORN
-
57518513 SCR-TFHFL M6X1.0X15 CHS ZODSCR-TFHFL M6X1.0X15 CHS ZOD
-
67542343 NUT, FLANGENUT, FLANGE
-
72411278 LIGHT, LICENSE PLATE [TO 2/1/2017]LIGHT, LICENSE PLATE [TO 2/1/2017]
-
72413838 LIGHT-LICENSE PLATE,TRACTR,BLK [FROM 2/1/2017]LIGHT-LICENSE PLATE,TRACTR,BLK [FROM 2/1/2017]
-
85263772-458 BRK-LIC.PLATE,RR,TRL-SKT,M.BLKBRK-LIC.PLATE,RR,TRL-SKT,M.BLK
-
97512018 SCREWSCREW
-
107555932 WASHER-.28 X.75 X.25-NYLON-BWASHER-.28 X.75 X.25-NYLON-B
-
117512025 SCR-10-24X1.25TFM PN TRX TRI-YSCR-10-24X1.25TFM PN TRX TRI-Y
