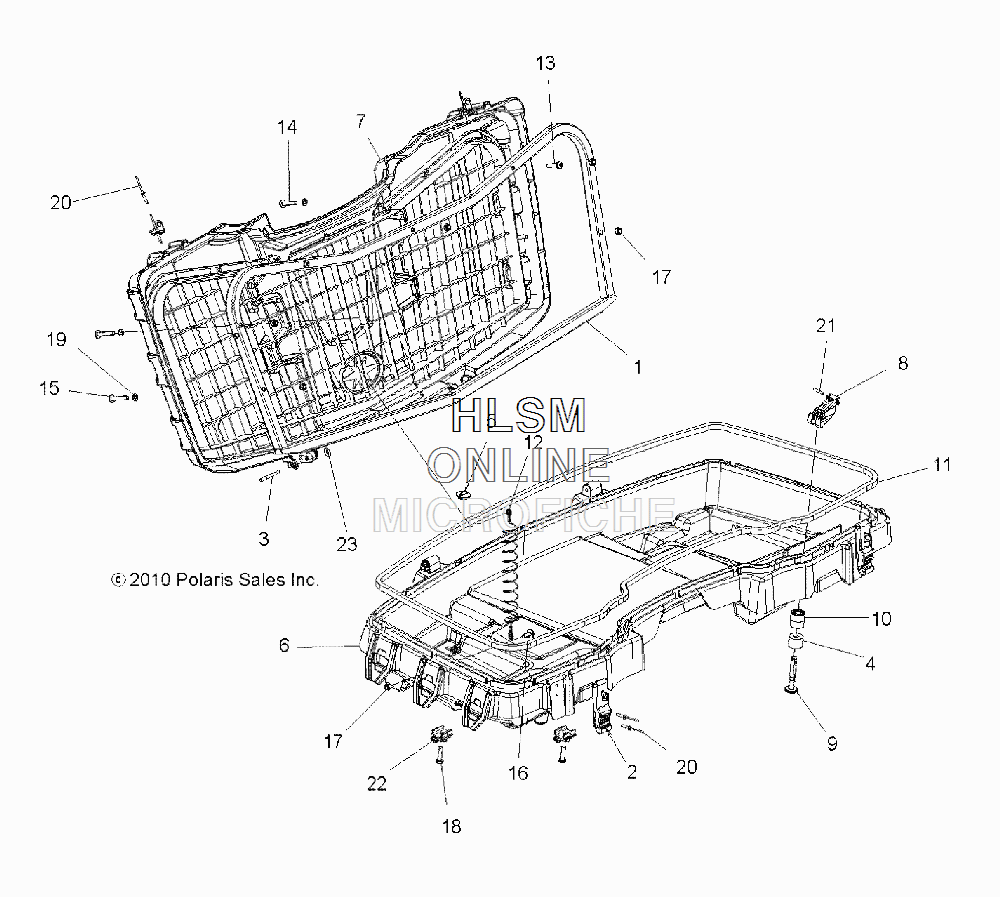

CARGO BOX - FRONT для Polaris SPORTSMAN TOURING TRACTOR 1000 BLACK PEARL [A17SYS95CK] - 2017 года выпуска
-
№АртикулНазвание
-
-2877951 KIT, CARGO BOX, FRONT [INCL. ALL]KIT, CARGO BOX, FRONT [INCL. ALL]
-
-2877784 KIT, LOCK AND RIDE ANCHOR, LONG [INCL. 4,8-10,21]KIT, LOCK AND RIDE ANCHOR, LONG [INCL. 4,8-10,21]
-
11016972 SUPPORT, LIDSUPPORT, LID
-
22877447 KIT, LATCHKIT, LATCH
-
35137573 PIN, HINGEPIN, HINGE
-
45413887 BUSHING, RUBBERBUSHING, RUBBER
-
55413899 PLUG, COMPARTMENTPLUG, COMPARTMENT
-
65437761 BOX, STORAGE, LOWERBOX, STORAGE, LOWER
-
75437762 BOX, STORAGE, UPPERBOX, STORAGE, UPPER
-
85438117 HANDLE, BLACKHANDLE, BLACK
-
95138410 SHAFT, LNR ANCHORSHAFT, LNR ANCHOR
-
105521796 SPACERSPACER
-
115521810 SEAL, BOX, FRONTSEAL, BOX, FRONT
-
127081638 CABLE, BOX LIMITERCABLE, BOX LIMITER
-
137519189 SCREWSCREW
-
147519190 BOLTBOLT
-
157519191 SCREWSCREW
-
167519192 SCREWSCREW
-
177547478 NUT, NYLOKNUT, NYLOK
-
187519189 SCREWSCREW
-
197556541 WASHER, SEALWASHER, SEAL
-
207661981 RIVETRIVET
-
217661982 PIN, DOWELPIN, DOWEL
-
225438790 GUIDE, RACKGUIDE, RACK
-
237710670 RING, RETAINING, E-CLIPRING, RETAINING, E-CLIP
