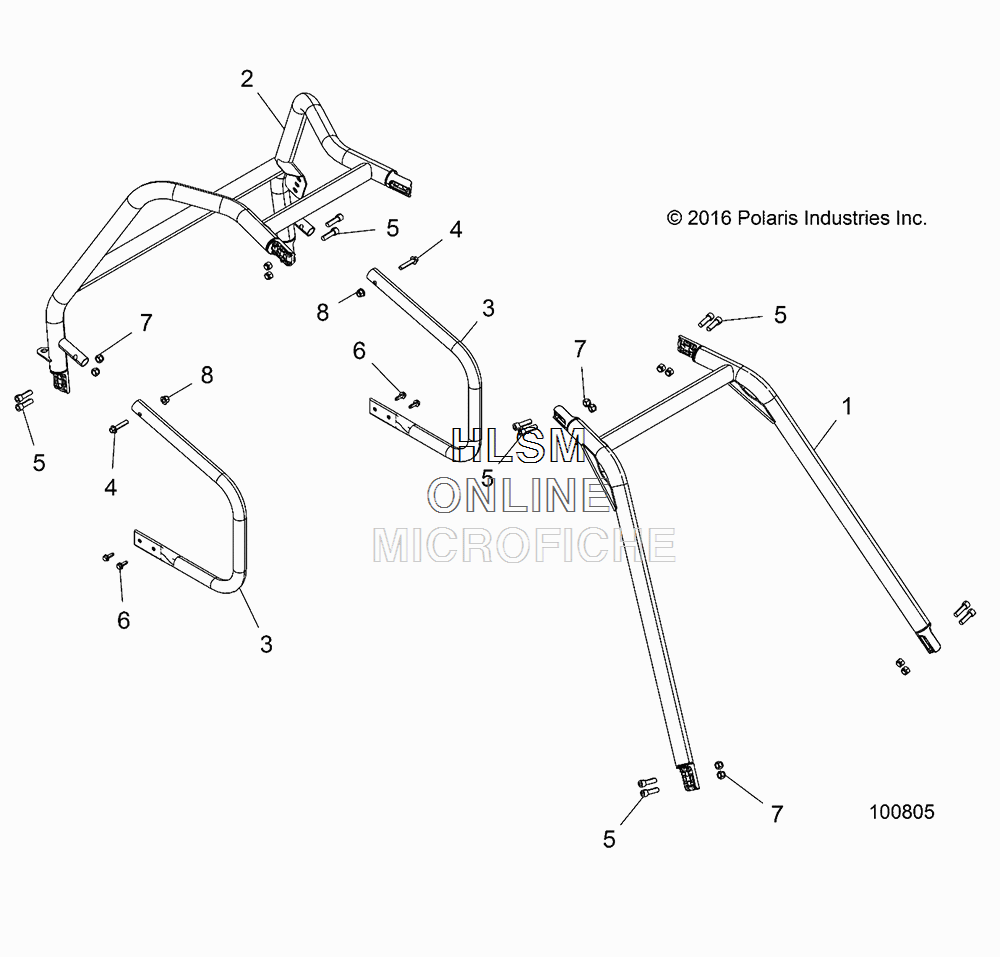

CAB FRAME AND SIDE BARS для Polaris ACE 150 EFI 501S (WHITE LIGHTING) [A18HAA15B2] - 2018 года выпуска
-
№АртикулНазвание
-
11022672-293 WELD-FRONT, ROPS, RED, WHITE LIGHTINGWELD-FRONT, ROPS, RED, WHITE LIGHTING
-
21022673-293 WELD-REAR ROPS, RED, WHITE LIGHTINGWELD-REAR ROPS, RED, WHITE LIGHTING
-
35339876-293 TUBE-BOLSTER, RED, WHITE LIGHTINGTUBE-BOLSTER, RED, WHITE LIGHTING
-
35339876-293 TUBE-BOLSTER, RED, WHITE LIGHTINGTUBE-BOLSTER, RED, WHITE LIGHTING
-
47517881 SCR-HXFL-M8X1.25X40 8.8 ZPBSCR-HXFL-M8X1.25X40 8.8 ZPB
-
57517935 SCR-3/8, 16X1 1/4 HXSOC CS ZY3SCR-3/8, 16X1 1/4 HXSOC CS ZY3
-
67518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BLSCR-M6X1.0X20, HXHD, FLG, TDFM, BL
-
77542451 NUT-3/8-16 NYLOK-YNUT-3/8-16 NYLOK-Y
-
87547332 NUT-M8X1.25, FLG, NYLOC-OLIVE DNUT-M8X1.25, FLG, NYLOC-OLIVE D
