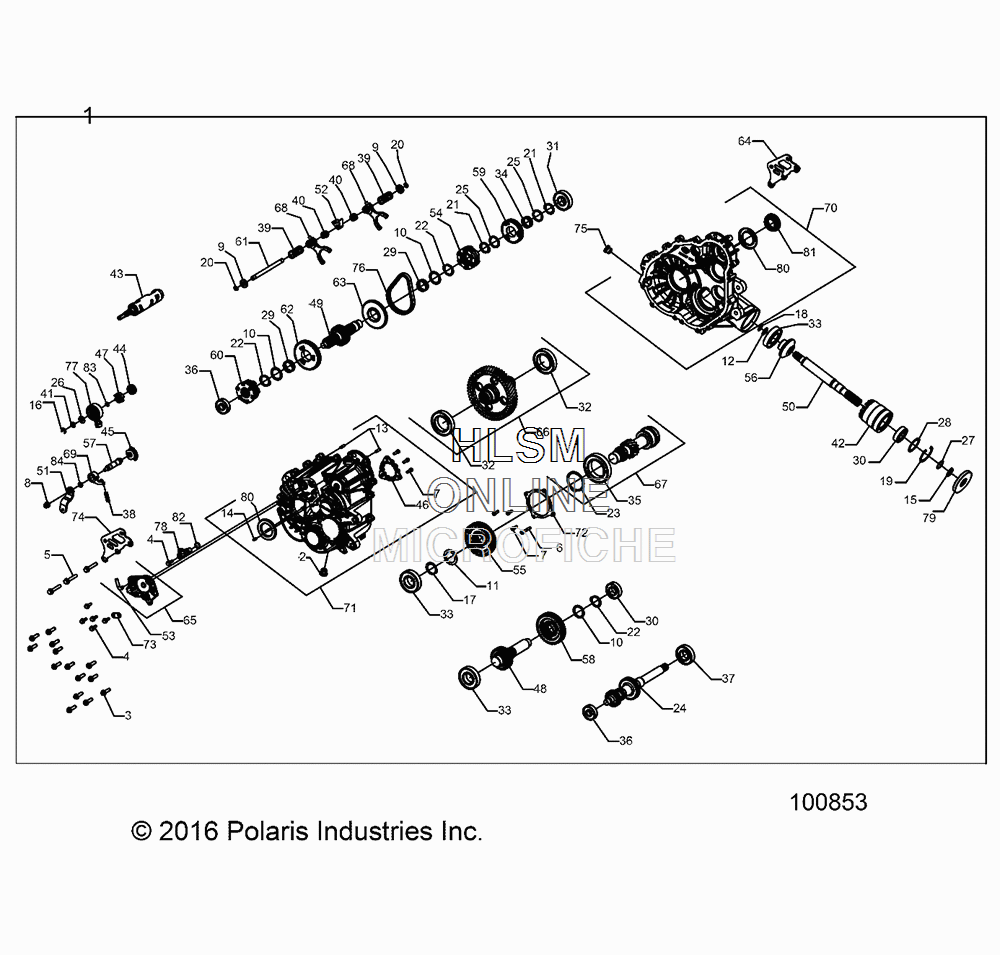

GEARCASE для Polaris ACE 570 [A18DAE57B2] - 2018 года выпуска
-
№АртикулНазвание
-
11333732 ASM-GEARCASE, 30MM BLW (INCL. ALL)ASM-GEARCASE, 30MM BLW (INCL. ALL)
-
23234756 PLUG, M18 X 1.5, MAGNETICPLUG, M18 X 1.5, MAGNETIC
-
33234898 SCREW, HEX FLANGE HEAD M8 X 1.25 X 30SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
-
43235206 SCREW, HEX FLANGE HEAD M6 X 1 X 20SCREW, HEX FLANGE HEAD M6 X 1 X 20
-
53235207 SCREW HEX FLANGE M8 X 50SCREW HEX FLANGE M8 X 50
-
63235208 SCREW, SOCKET HEAD CAP, M6 X 1 X 40SCREW, SOCKET HEAD CAP, M6 X 1 X 40
-
73235332 SCREW, SOCKET HEAD CAP, M6 X 1 X 18SCREW, SOCKET HEAD CAP, M6 X 1 X 18
-
83235210 NUT, LOCK HEX FLANGE NYLON M8 X 1.25NUT, LOCK HEX FLANGE NYLON M8 X 1.25
-
93234091 WASHER, CUPWASHER, CUP
-
103235211 WASHER, 32.3 X 42 X 1.5WASHER, 32.3 X 42 X 1.5
-
113235212 WASHER, 35.6 X 50 X 1.5WASHER, 35.6 X 50 X 1.5
-
123235213 WASHER, 17.3 X 25 X 1.5WASHER, 17.3 X 25 X 1.5
-
133234330 PIN, DOWEL 6 X 20PIN, DOWEL 6 X 20
-
147043746 PIN, SPRING SLOTTED 6 X 12PIN, SPRING SLOTTED 6 X 12
-
153233106 RING, RETAINING BASIC EXTERNAL 0.984RING, RETAINING BASIC EXTERNAL 0.984
-
163233834 RING, SNAPRING, SNAP
-
173233364 RING, RETAINING SHAFT, DIA. 1.375RING, RETAINING SHAFT, DIA. 1.375
-
183234318 RING, RETAINING EXTERNAL SHR-66RING, RETAINING EXTERNAL SHR-66
-
193234269 RING, RETAINING BASIC INTERNAL 2.047RING, RETAINING BASIC INTERNAL 2.047
-
203234090 RING, RETAINING BASIC EXTERNAL 0.428RING, RETAINING BASIC EXTERNAL 0.428
-
213234205 RING, RETAININGRING, RETAINING
-
223235214 RING, EXTERNAL SNAP 32 X 2.4RING, EXTERNAL SNAP 32 X 2.4
-
233235216 RING, RETAINING VSH-237RING, RETAINING VSH-237
-
243235974 SHAFT, INPUT, HELICAL, 30MM, 45T/20T/31TSHAFT, INPUT, HELICAL, 30MM, 45T/20T/31T
-
253233378 WASHER, THRUST 1.187 X 1.5 X 0.06WASHER, THRUST 1.187 X 1.5 X 0.06
-
263234642 WASHER, THRUST 0.446 X 0.88 X 0.025WASHER, THRUST 0.446 X 0.88 X 0.025
-
273234272 SHIM, 1.18 OD X 0.995 IDSHIM, 1.18 OD X 0.995 ID
-
283234273 SHIM, 2.04 OD X 1.63 IDSHIM, 2.04 OD X 1.63 ID
-
293233014 BEARING, NEEDLE CAGE ASSYBEARING, NEEDLE CAGE ASSY
-
303233019 BEARING, BALL 6205 C3 25X52X15BEARING, BALL 6205 C3 25X52X15
-
313233020 BEARING, BALL 6305 C3, 25 X 62 X 17BEARING, BALL 6305 C3, 25 X 62 X 17
-
323233268 BEARING, BALL 6010 C3 50X80X16BEARING, BALL 6010 C3 50X80X16
-
333234065 BEARING, BALL 6207 C3 35X72X17BEARING, BALL 6207 C3 35X72X17
-
343233384 BEARING, NEEDLE CAGE ASSYBEARING, NEEDLE CAGE ASSY
-
353235218 BEARING, BALL 6012 C3 60 X 95 X 18BEARING, BALL 6012 C3 60 X 95 X 18
-
363234652 BEARING, BALL 6303 17 X 47 X 14BEARING, BALL 6303 17 X 47 X 14
-
373235496 BEARING, BALL 6206RSH2 STD 30 X 62 X 16BEARING, BALL 6206RSH2 STD 30 X 62 X 16
-
383233830 SPRING, COMPRESSION 0.36 OD X 1.125SPRING, COMPRESSION 0.36 OD X 1.125
-
393234078 SPRING, COMPRESSION 0.92 O.D. X 2SPRING, COMPRESSION 0.92 O.D. X 2
-
403234089 SPRING, COMPRESSION 0.46 I.D. X 0.73SPRING, COMPRESSION 0.46 I.D. X 0.73
-
413235327 SPRING, WASHERSPRING, WASHER
-
423234278 TUBE, SNORKEL MACHTUBE, SNORKEL MACH
-
433235463 DRUM, SHIFT MACHDRUM, SHIFT MACH
-
443233839 GEAR, SECTOR 16TGEAR, SECTOR 16T
-
453233832 GEAR, SECTOR 31TGEAR, SECTOR 31T
-
463235456 PLATE, PARK 12-FACEPLATE, PARK 12-FACE
-
473235603 STAR, DETENTSTAR, DETENT
-
483235223 SHAFT, IDLER 29TSHAFT, IDLER 29T
-
493235380 SHAFT, REVERSE 27TSHAFT, REVERSE 27T
-
503235394 SHAFT, FRONT OUTPUTSHAFT, FRONT OUTPUT
-
513235629 BELLCRANK DROIDBELLCRANK DROID
-
523234073 COLLAR, SHIFTCOLLAR, SHIFT
-
533234230 TUBE, VENT 90 -1/4 IN HOSETUBE, VENT 90 -1/4 IN HOSE
-
543235233 ENGAGEMENT DOG, 6-FACEENGAGEMENT DOG, 6-FACE
-
553235236 GEAR, 46T STAGE 3GEAR, 46T STAGE 3
-
563235237 GEAR, 13T SNORKELGEAR, 13T SNORKEL
-
573235238 SHAFT SHIFTSHAFT SHIFT
-
583235381 GEAR, 46T STAGE 2GEAR, 46T STAGE 2
-
593235396 GEAR, 49TGEAR, 49T
-
603235457 SHIFT DOG, PARKSHIFT DOG, PARK
-
613235542 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
623235561 GEAR, LOW 61TGEAR, LOW 61T
-
633235755 SPROCKET, 48T 6-FACESPROCKET, 48T 6-FACE
-
643236001 WELDMENT, REAR MOUNT BRACKETWELDMENT, REAR MOUNT BRACKET
-
653235713 SUBASSEMBLY, SECTOR COVERSUBASSEMBLY, SECTOR COVER
-
663235335 SUBASSEMBLY, OUTPUTSUBASSEMBLY, OUTPUT
-
673235336 SUBASSEMBLY, PINIONSUBASSEMBLY, PINION
-
683235454 SUBASSEMBLY, SHIFT FORKSUBASSEMBLY, SHIFT FORK
-
693235452 SUBASSEMBLY, PAWL DETENT, ROLLERSUBASSEMBLY, PAWL DETENT, ROLLER
-
703235491 SUBASSEMBLY, LH CASESUBASSEMBLY, LH CASE
-
713235756 SUBASSEMBLY, RH COVERSUBASSEMBLY, RH COVER
-
723235241 COVER, BEARING CENTER DRIVECOVER, BEARING CENTER DRIVE
-
733235350 BRACKET, WIRE HARNESSBRACKET, WIRE HARNESS
-
743235998 BRACKET, REAR MOUNTBRACKET, REAR MOUNT
-
753234755 PLUG, M18 X 1.5PLUG, M18 X 1.5
-
763234737 CHAIN, SILENT, TYPE 101 .25P X .40W X 58LCHAIN, SILENT, TYPE 101 .25P X .40W X 58L
-
777661999 SWITCH, ROTARY 2 PIN RESISTIVESWITCH, ROTARY 2 PIN RESISTIVE
-
784013908 SENSOR, SPEEDSENSOR, SPEED
-
793234113 SEAL, TRIPLE LIP 25 X 80 X 10SEAL, TRIPLE LIP 25 X 80 X 10
-
803235052 SEAL, TRIPLE LIP, VITON 40 X 70 X 7SEAL, TRIPLE LIP, VITON 40 X 70 X 7
-
813235495 SEAL, TRIPLE LIP, 30 X 47 VITONSEAL, TRIPLE LIP, 30 X 47 VITON
-
823234302 O-RINGO-RING
-
833233836 O-RING, -12 VITONO-RING, -12 VITON
-
843233828 O-RING, -14 VITONO-RING, -14 VITON
