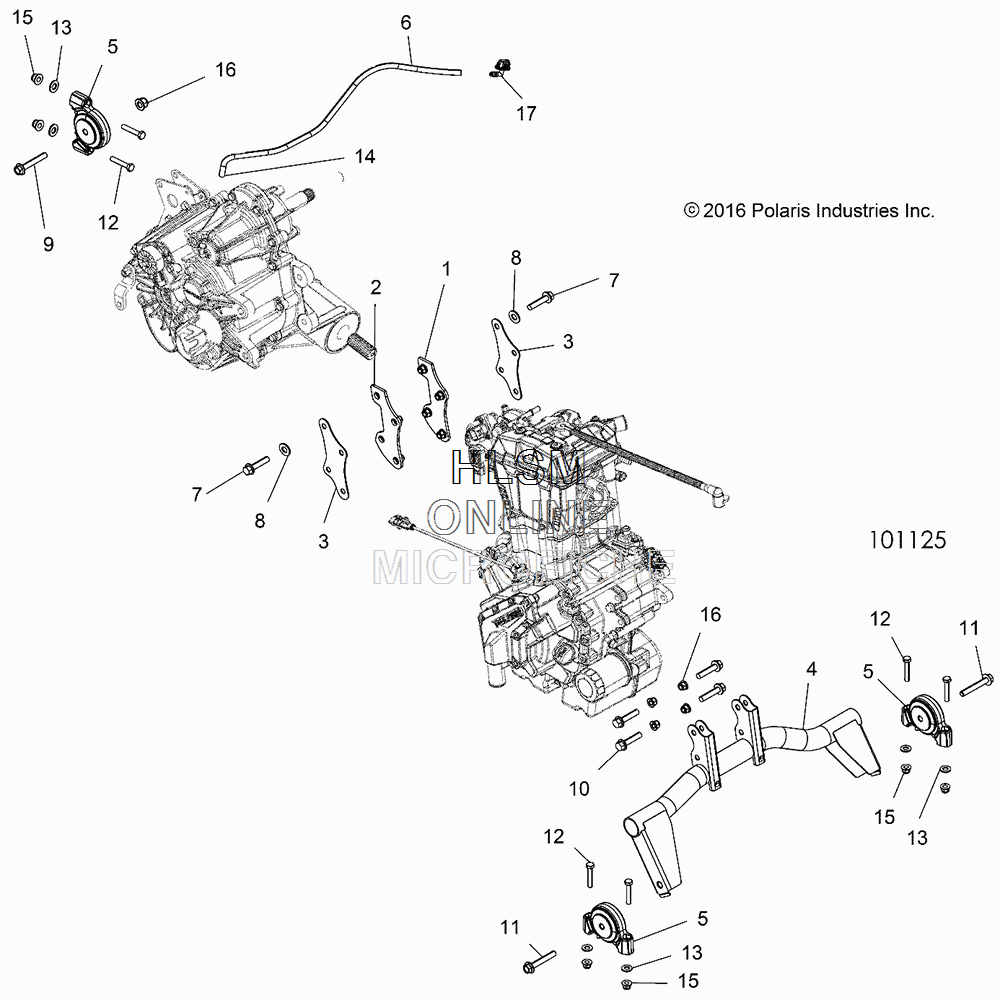

MOUNTING - ENGINE W/ TRANSMISSION для Polaris ACE 570 EFI PS HD (VELOCITY BLUE) [A18DAE57N5] - 2018 года выпуска
-
№АртикулНазвание
-
11018420 TRANSMISSION, INNER, LEFTTRANSMISSION, INNER, LEFT
-
21018421 TRANSMISSION, INNER, RIGHTTRANSMISSION, INNER, RIGHT
-
35255321 BRACKET, COUPLER, TRANSMISSION, OUTERBRACKET, COUPLER, TRANSMISSION, OUTER
-
41021995-329 MOUNT, ENGINE, FRONT, E-COATMOUNT, ENGINE, FRONT, E-COAT
-
51332955 MOUNT, ISOLATOR, DRIVELINEMOUNT, ISOLATOR, DRIVELINE
-
68450040-600 LINE, FUEL, 1/4 ID(600 CM.)LINE, FUEL, 1/4 ID(600 CM.)
-
67670102 CLIP-SILENCER BOX-C, 98 INDYCLIP-SILENCER BOX-C, 98 INDY
-
77518971 SCREWSCREW
-
87556153 WASHERWASHER
-
97518563 BOLTBOLT
-
107519332 SCREWSCREW
-
117556557 WASHER-0.62X0.330 X .060 FL-YWASHER-0.62X0.330 X .060 FL-Y
-
127519097 SCREWSCREW
-
137547030 NUT, PALNUT, PAL
-
147081432 CLAMP-HOSE, 17/32, GREENCLAMP-HOSE, 17/32, GREEN
-
157547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
167547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
175453464 FITTING-VENT LINE, 90FITTING-VENT LINE, 90
