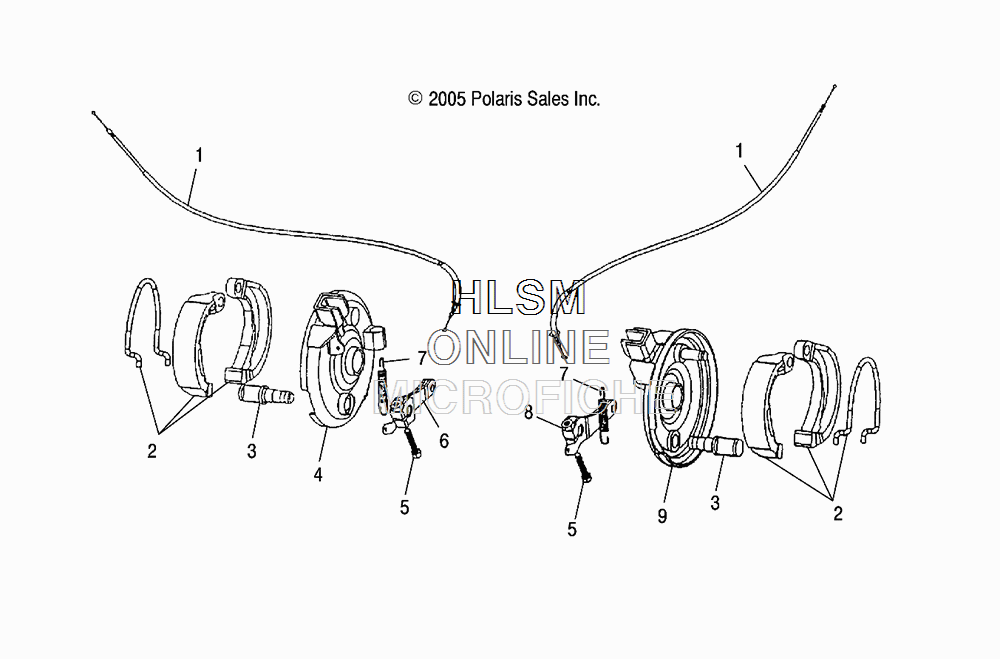

BRAKE - FRONT для Polaris OUTLAW 50 (LIME SQUEEZE) [A18YAK05B6] (EUROPE) - 2018 года выпуска
-
№АртикулНазвание
-
10453877 CABLE, FRONT BRAKE,PRED 50CABLE, FRONT BRAKE,PRED 50
-
20455315 SHOE-FRT BRKSHOE-FRT BRK
-
30450421 SHAFT, CAM, FRONT BRAKESHAFT, CAM, FRONT BRAKE
-
40450912 PLATE, HOUSING, BRAKE, RIGHT HANDPLATE, HOUSING, BRAKE, RIGHT HAND
-
50450424 SPRING-RETURN,FRTSPRING-RETURN,FRT
-
60450425 BOLT-HEX 96000-05024-CBOLT-HEX 96000-05024-C
-
70450913 ARM-FRNT BRAKE,RIGHT HANDARM-FRNT BRAKE,RIGHT HAND
-
80450911 ARM-FRNT BRAKE,LEFT HANDARM-FRNT BRAKE,LEFT HAND
-
90450910 PLATE- FRONT BRAKE, LEFT HANDPLATE- FRONT BRAKE, LEFT HAND
