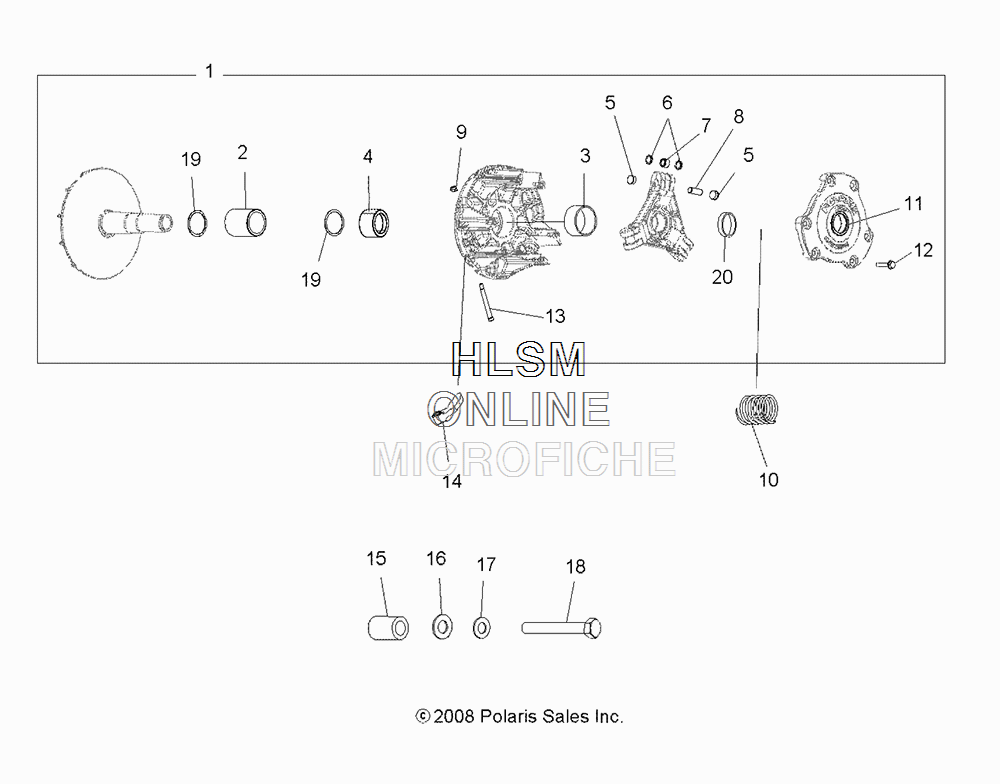

CLUTCH - PRIMARY для Polaris SCRAMBLER 1000 TRACTOR (HAVASU RED PEARL) [A18SVS95ER] (EUROPE) - 2018 года выпуска
-
№АртикулНазвание
-
11322953 CLUTCH, DRIVE, BASIC (INCL. 2-9, 11-13, 19-20)CLUTCH, DRIVE, BASIC (INCL. 2-9, 11-13, 19-20)
-
21521667 ASM., CLUTCH, ONEWAYASM., CLUTCH, ONEWAY
-
33514492 BEARING, 1.75IDBEARING, 1.75ID
-
45632328 SPACER, CLUTCH, PMSPACER, CLUTCH, PM
-
55439254 BUTTON, CLUTCHBUTTON, CLUTCH
-
65438247 WASHER, CLUTCH, SPIDER ROLLERWASHER, CLUTCH, SPIDER ROLLER
-
71321622 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
85020422 PIN, ROLLERPIN, ROLLER
-
97541906 NUT, FLEXLOCNUT, FLEXLOC
-
107044279 SPRING, CLUTCH, 40-210SPRING, CLUTCH, 40-210
-
113514684 COVER, BEARING, .75INCOVER, BEARING, .75IN
-
127518062 SCREWSCREW
-
137512266 BOLT, SHOULDERBOLT, SHOULDER
-
145633136 WEIGHT, SHIFT, 24-70, PMWEIGHT, SHIFT, 24-70, PM
-
155437682 BUSHINGBUSHING
-
167556468 WASHER, FLATWASHER, FLAT
-
177556377 WASHER, INTERLOCKWASHER, INTERLOCK
-
187518868 BOLTBOLT
-
197556335 WASHERWASHER
-
205438737 SPACER, CLUTCH LIMITERSPACER, CLUTCH LIMITER
