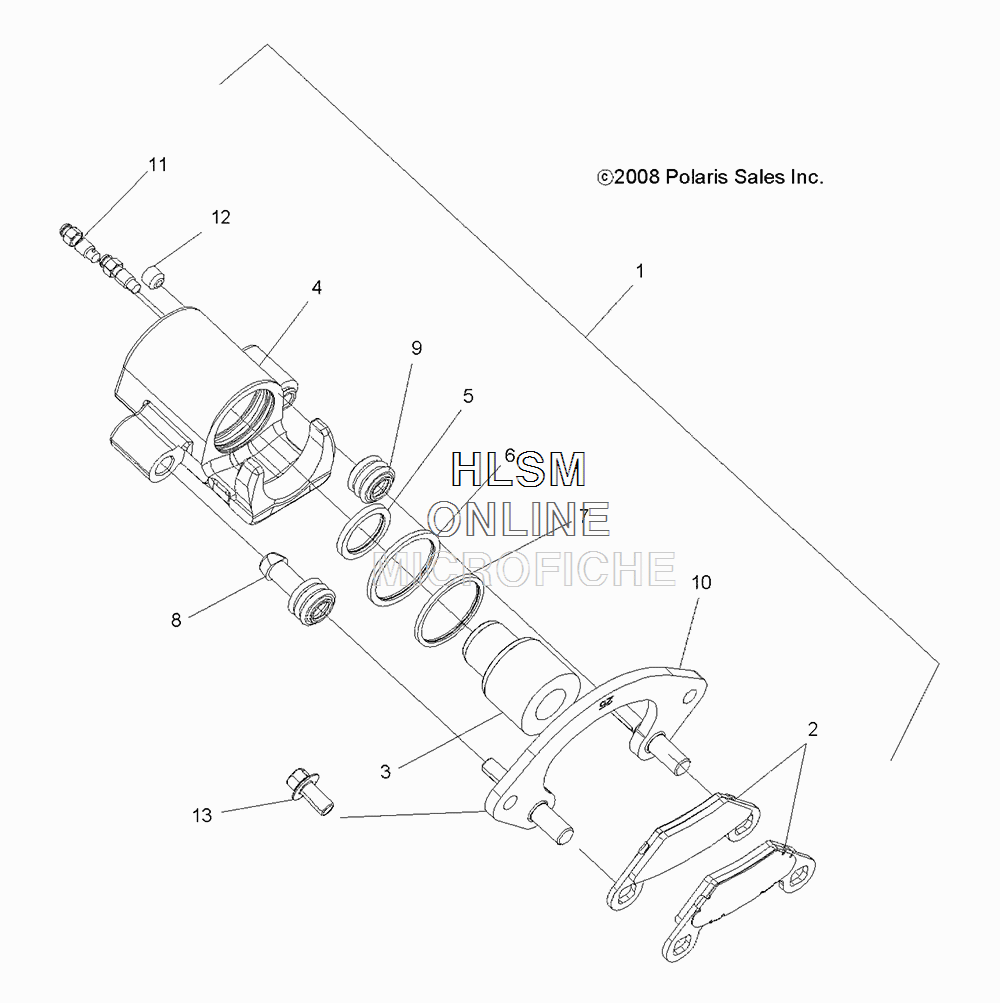

BRAKE - REAR CALIPER для Polaris SCRAMBLER 1000 XP ZUG (HAVASU RED PEARL) [A18SVS95FR] - 2018 года выпуска
-
№АртикулНазвание
-
11911458 CALIPER, DUAL INPUT, LEFT HAND (INCL. ALL LESS 13)CALIPER, DUAL INPUT, LEFT HAND (INCL. ALL LESS 13)
-
11911459 CALIPER, DUAL INPUT, RIGHT HAND (INCL. ALL LESS 13)CALIPER, DUAL INPUT, RIGHT HAND (INCL. ALL LESS 13)
-
22204088 KIT, BRAKE PAD, REAR (INCL. 2 PADS)KIT, BRAKE PAD, REAR (INCL. 2 PADS)
-
35136698 PISTON, BRAKE, STEPPISTON, BRAKE, STEP
-
55410766 RING, SQUARE, MOLDEDRING, SQUARE, MOLDED
-
65412010 SEAL, CALIPER, INNER, 1.50 INSEAL, CALIPER, INNER, 1.50 IN
-
75412011 SEAL, CALIPER, OUTER, 1.50 INSEAL, CALIPER, OUTER, 1.50 IN
-
85412505 BOOT, PIN BUSHINGBOOT, PIN BUSHING
-
95412506 BOOT, PIN SEALBOOT, PIN SEAL
-
101911225 ASM., CALIPER MOUNTASM., CALIPER MOUNT
-
117080352 SCREW, BLEEDERSCREW, BLEEDER
-
127515489 SCREW, SOCKET SETSCREW, SOCKET SET
-
137518760 BOLT, FLANGE (CALIPER MOUNTING)BOLT, FLANGE (CALIPER MOUNTING)
