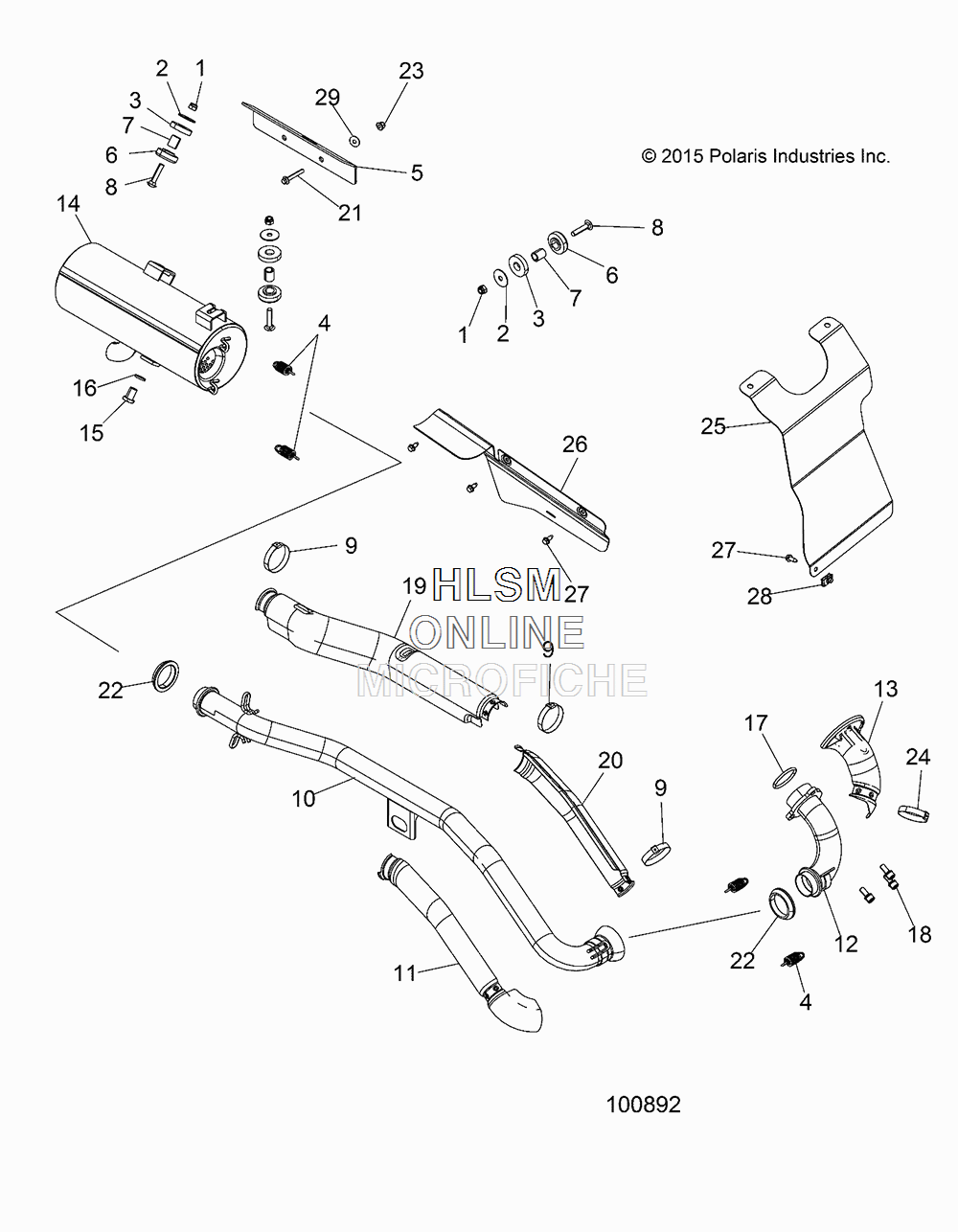

EXHAUST SYSTEM для Polaris SCRAMBLER 850 (SUNSET RED) [A18SHE57FS] - 2018 года выпуска
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
27555716 WASHERWASHER
-
35414945 WASHER, RUBBERWASHER, RUBBER
-
47041804 SPRINGSPRING
-
55263678 BRACKET, SILENCER, FRAMEBRACKET, SILENCER, FRAME
-
65414946 DAMPENER, VIBRATIONDAMPENER, VIBRATION
-
75010192 BUSHINGBUSHING
-
87515316 BOLTBOLT
-
97082359 CLAMP-HOSE, 2.00-SSCLAMP-HOSE, 2.00-SS
-
101263100 ASM-EXHAUST PIPE, 570 EFI, SS (INCL. PIPE, SHIELDS, CLAMPS)ASM-EXHAUST PIPE, 570 EFI, SS (INCL. PIPE, SHIELDS, CLAMPS)
-
115260801 SHIELD-HEAT, EXHAUST, MIDSHIELD-HEAT, EXHAUST, MID
-
121263099 WELD-MANIFOLDWELD-MANIFOLD
-
135260800 SHIELD-HEAT, EXHAUST HEADPIPESHIELD-HEAT, EXHAUST HEADPIPE
-
141263139 WELD-EXHAUST, SILENCERWELD-EXHAUST, SILENCER
-
157520756 BOLT-1/2-20X5/8 HXHDCAP-GR5-PBOLT-1/2-20X5/8 HXHDCAP-GR5-P
-
167557077 WASHER-CLEAN OUT .51X75X.09WASHER-CLEAN OUT .51X75X.09
-
175253989 GASKET, EXHAUST SEALINGGASKET, EXHAUST SEALING
-
187517555 SCREWSCREW
-
195265059 SHIELD-HEAT, EXHAUST, REARSHIELD-HEAT, EXHAUST, REAR
-
205260808 SHIELD-HEAT, EXHAUST MID, INNERSHIELD-HEAT, EXHAUST MID, INNER
-
217518341 BOLTBOLT
-
225256385 SEAL, EXHAUSTSEAL, EXHAUST
-
237542343 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
247082132 CLAMPCLAMP
-
255263226 SHIELD-HEAT, FUEL TANKSHIELD-HEAT, FUEL TANK
-
262636957 ASM-SHIELD, AIRBOXASM-SHIELD, AIRBOX
-
277517386 SCR-1/4-20X5/8, TAP/R-YSCR-1/4-20X5/8, TAP/R-Y
-
287670096 NUT-CHIMNEY 1/4-20, GR-5NUT-CHIMNEY 1/4-20, GR-5
-
297556099 WASHER-FL 10.7X21.9X2.5-YWASHER-FL 10.7X21.9X2.5-Y
