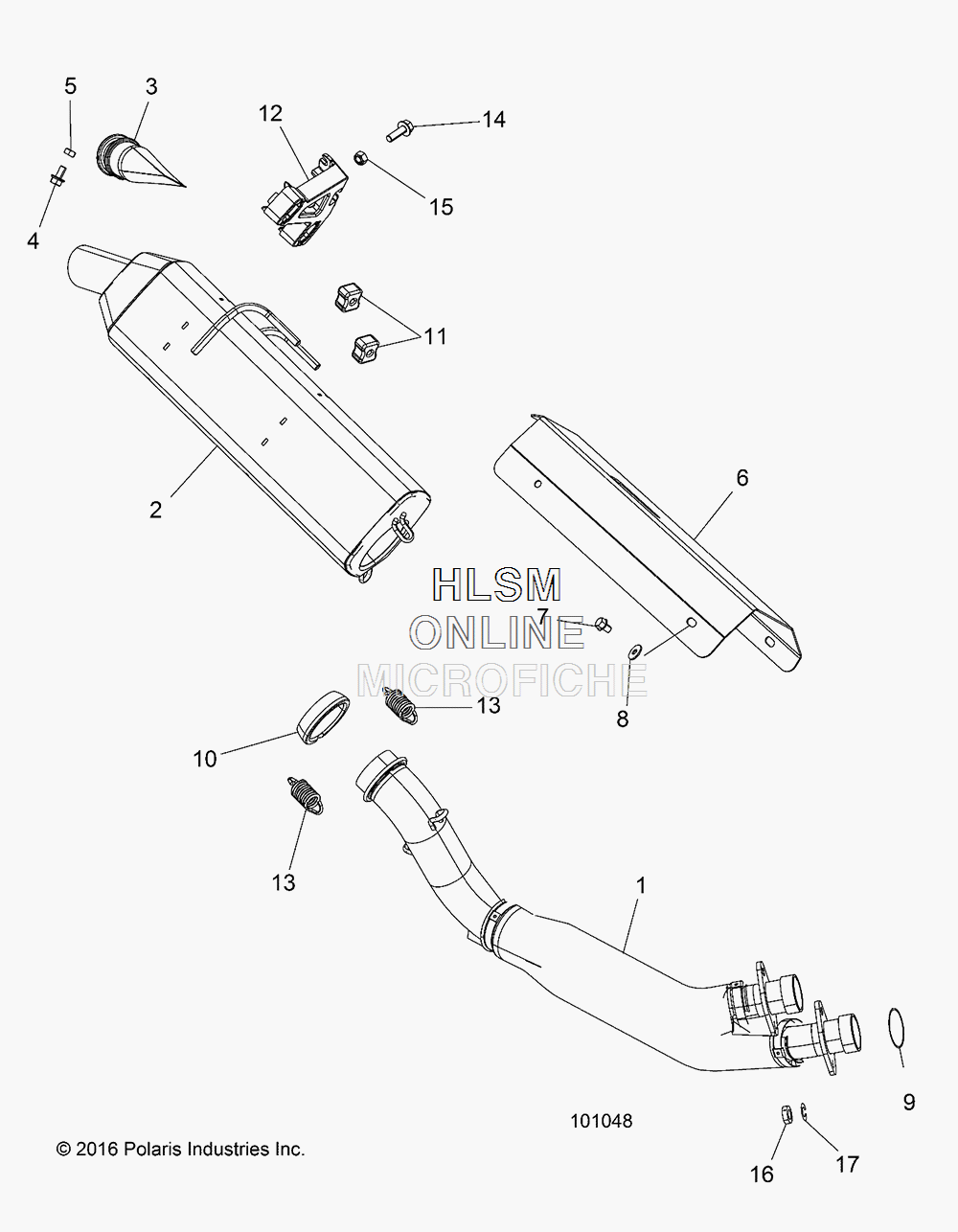

EXHAUST SYSTEM для Polaris SCRAMBLER 850 (VELOCITY BLUE) [A18SVA85B5] - 2018 года выпуска
-
№АртикулНазвание
-
11263073 ASM-EXHAUST PIPE, TWIN (INCL PIPE, SHIELDS, CLAMPS)ASM-EXHAUST PIPE, TWIN (INCL PIPE, SHIELDS, CLAMPS)
-
21262299 SILENCER, EXHAUSTSILENCER, EXHAUST
-
31262239 ARRESTOR, SPARKARRESTOR, SPARK
-
47517257 SCREWSCREW
-
57547120 NUTNUT
-
65257321 SHIELD, HEAT, EXHAUST, SILENCERSHIELD, HEAT, EXHAUST, SILENCER
-
77518490 SCREWSCREW
-
87555935 WASHERWASHER
-
95255577 GASKET, EXHAUST, SEALINGGASKET, EXHAUST, SEALING
-
103610204 SEAL, EXHAUSTSEAL, EXHAUST
-
115413383 GROMMET, SILENCER MOUNTGROMMET, SILENCER MOUNT
-
125632668 BRACKET, EXHAUST, SUPPORTBRACKET, EXHAUST, SUPPORT
-
137041789 SPRING, EXHAUSTSPRING, EXHAUST
-
147518548 SCREWSCREW
-
157546703 NUT, NYLOKNUT, NYLOK
-
167547076 NUTNUT
-
177556111 WASHER, LOCKWASHER, LOCK
