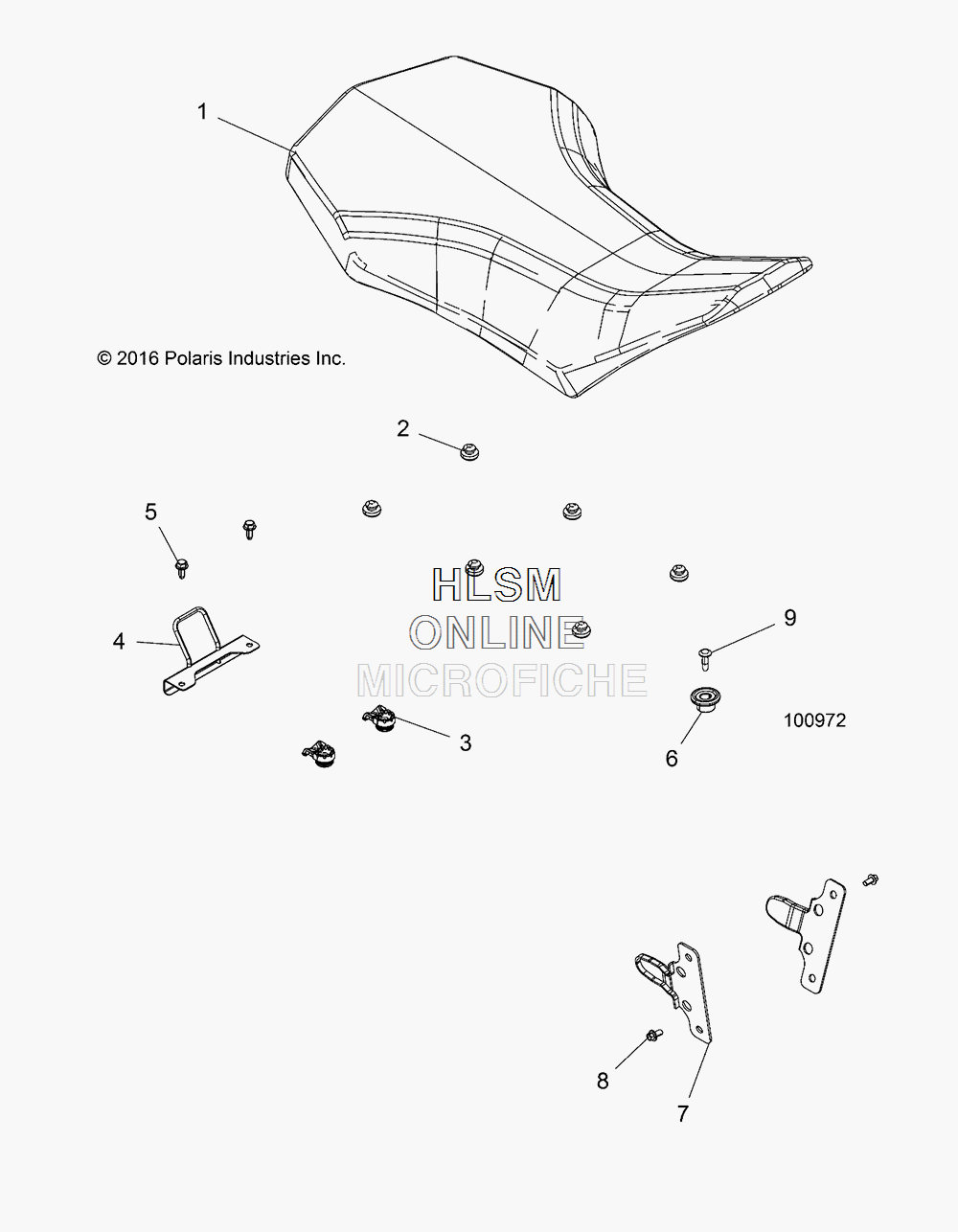

SEAT ASM. для Polaris SPORTSMAN 1000 XP EU (HAVASU RED PEARL) [A18SXE95FR] - 2018 года выпуска
-
№АртикулНазвание
-
12688432-070 ASM-SEAT,NAD,BLACK [INCL. 2, COVERING]ASM-SEAT,NAD,BLACK [INCL. 2, COVERING]
-
12688464-070 COVERING-SEAT,BLACKCOVERING-SEAT,BLACK
-
25412067 BUMPER-RUBBERBUMPER-RUBBER
-
35415539 GROMMET-SEAT LATCHGROMMET-SEAT LATCH
-
41022751-067 WELD-SEAT LATCH,BLACKWELD-SEAT LATCH,BLACK
-
57518555 BOLT-M8X1.25X20,HXFLGBOLT-M8X1.25X20,HXFLG
-
65451185 MOUNT-SEAT FRONTMOUNT-SEAT FRONT
-
75250682 BRKT-SEAT BASE,LOCATEBRKT-SEAT BASE,LOCATE
-
87519045 SCR-TX TRUSS-#14X3/4,HI/LO ZBKSCR-TX TRUSS-#14X3/4,HI/LO ZBK
-
97517441 SCR-10X.75 TX PN PLST-243SCR-10X.75 TX PN PLST-243
