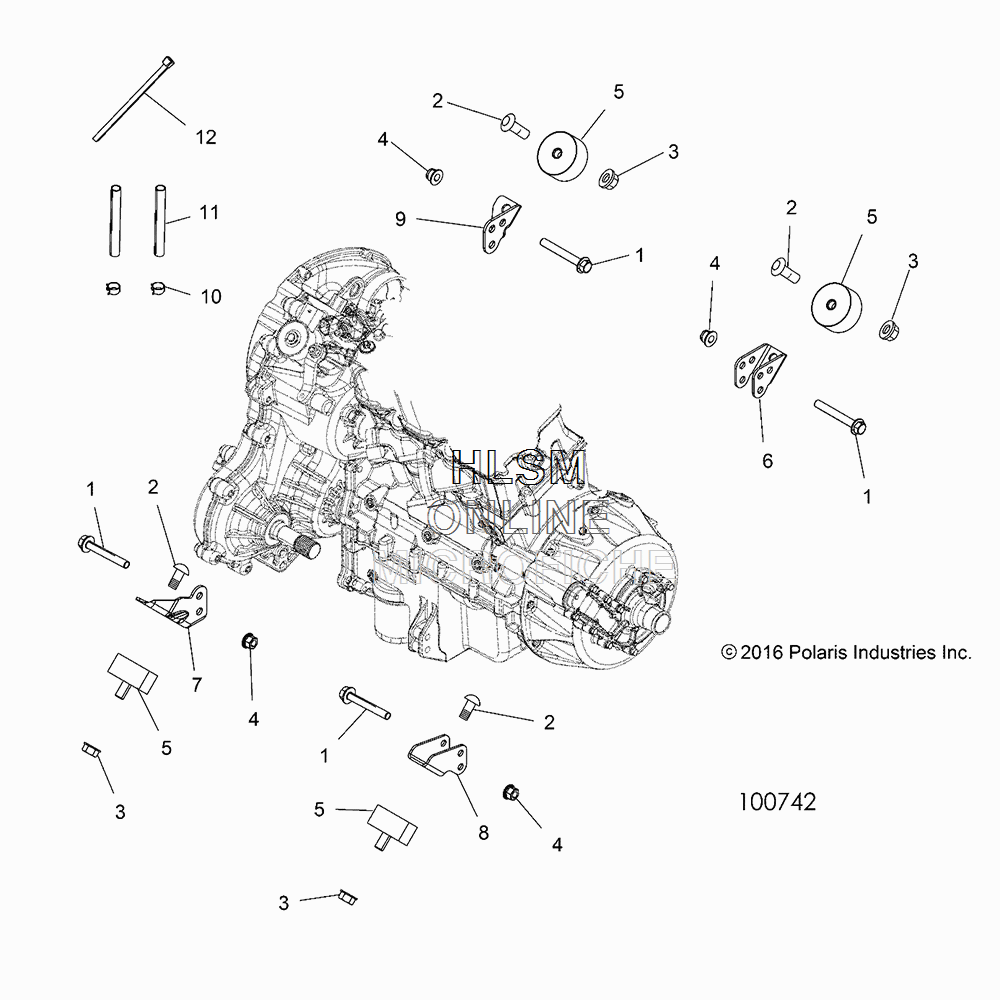

MOUNTING - ENGINE W/ TRANSMISSION для Polaris SPORTSMAN 1000 XP TRACTOR (HAVASU RED PEARL) [A18SXS95CR] - 2018 года выпуска
-
№АртикулНазвание
-
17516732 SCREW, FLANGESCREW, FLANGE
-
27519032 SCREWSCREW
-
37547313 NUT, FLANGENUT, FLANGE
-
47547317 NUT, FLANGENUT, FLANGE
-
53022154 ISOLATORISOLATOR
-
65251716 BRACKET, TRANSMISSION MOUNT, LEFT HANDBRACKET, TRANSMISSION MOUNT, LEFT HAND
-
75252091 BRACKET, TRANSMISSION, RIGHT HANDBRACKET, TRANSMISSION, RIGHT HAND
-
85251717 BRACKET, ENGINE, MOUNT, RIGHT HANDBRACKET, ENGINE, MOUNT, RIGHT HAND
-
95253340 BRACKET, TRANSMISSION, LEFT HANDBRACKET, TRANSMISSION, LEFT HAND
-
107081432 CLAMP-HOSE, 17/32, GREEN [TRANSMISSION VENTING]CLAMP-HOSE, 17/32, GREEN [TRANSMISSION VENTING]
-
118450040-600 LINE, FUEL,1/4 ID(600 CM.) [TRANSMISSION VENTING]LINE, FUEL,1/4 ID(600 CM.) [TRANSMISSION VENTING]
-
127080761 STRAP-PANDUIT,14 IN.STRAP-PANDUIT,14 IN.
