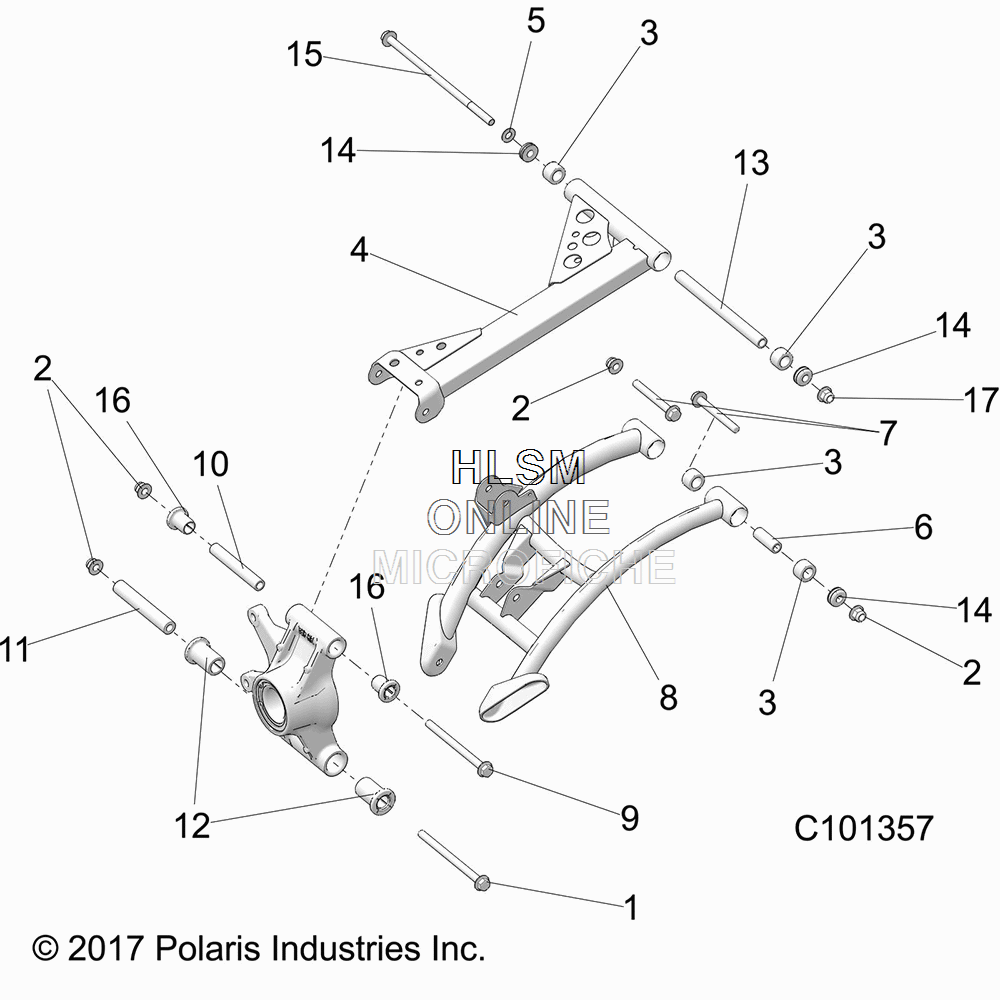

SUSPENSION - REAR для Polaris SPORTSMAN 1000 XP ZUG (HAVASU RED PEARL) [A18SXS95FR] - 2018 года выпуска
-
№АртикулНазвание
-
17518467 BOLT, FLANGEBOLT, FLANGE
-
27547313 NUT, FLANGENUT, FLANGE
-
35452233 BUSHING-STANDARD,SUSP,M10BUSHING-STANDARD,SUSP,M10
-
41023470-293 WELD-UCA,SEAL,REAR,LEFT HAND,HAVASU RED PEARLWELD-UCA,SEAL,REAR,LEFT HAND,HAVASU RED PEARL
-
41023471-293 WELD-UCA,SEAL,REAR,RIGHT HAND,HAVASU RED PEARLWELD-UCA,SEAL,REAR,RIGHT HAND,HAVASU RED PEARL
-
57556153 WASHER-3/8 FW SAE STL THRU-HRDWASHER-3/8 FW SAE STL THRU-HRD
-
65141292 SHAFT-PIVOT,SHORT,M10,43MMSHAFT-PIVOT,SHORT,M10,43MM
-
77518466 BOLT, FLANGEBOLT, FLANGE
-
81023459-293 WELD-LCA,SEAL,REAR,LEFT HAND,HAVASU RED PEARLWELD-LCA,SEAL,REAR,LEFT HAND,HAVASU RED PEARL
-
81544013-293 ASM-LCA,SEAL,REAR,RIGHT HAND,HAVASU RED PEARLASM-LCA,SEAL,REAR,RIGHT HAND,HAVASU RED PEARL
-
97518675 BOLT, FLANGEBOLT, FLANGE
-
105137590 SHAFT, PIVOT,104.9MM,ZINC YELSHAFT, PIVOT,104.9MM,ZINC YEL
-
115136473 SHAFT, A-ARM, LOWER CONTROL ARM,0.75 IN ODSHAFT, A-ARM, LOWER CONTROL ARM,0.75 IN OD
-
125437651 BUSHING, LOWER CONTROL ARM,0.75 IN IDBUSHING, LOWER CONTROL ARM,0.75 IN ID
-
135141510 SHAFT-PIVOT,190MM,M10SHAFT-PIVOT,190MM,M10
-
141543611 ASM-PIVOT CAP,SEALED,M10ASM-PIVOT CAP,SEALED,M10
-
157519086 SCR-HXFL-M10X1.25X235 10.9 ZODSCR-HXFL-M10X1.25X235 10.9 ZOD
-
165439874 BUSHING-STANDARD,ORVBUSHING-STANDARD,ORV
-
177547333 NUT-M10X1.25,FLG,NYLOC-OLIVE DNUT-M10X1.25,FLG,NYLOC-OLIVE D
