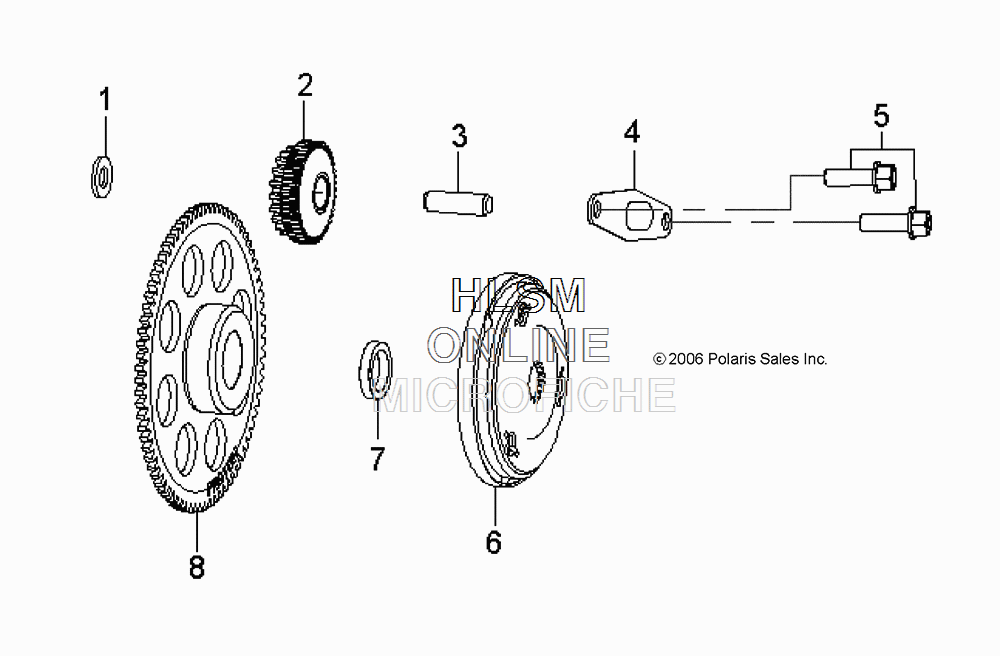

STARTER - RECOIL для Polaris SPORTSMAN 110 (VELOCITY BLUE) [A18YAF11N5] (EUROPE) - 2018 года выпуска
-
№АртикулНазвание
-
10450192 WASHERWASHER
-
20455258 ASM-IDLE GEAR 23422-117-001ASM-IDLE GEAR 23422-117-001
-
30453558 SHAFT, PIN, STARTER MOTORSHAFT, PIN, STARTER MOTOR
-
40453467 PLATE, IDLER GEARPLATE, IDLER GEAR
-
50452330 BOLTBOLT
-
60454961 ASM., STARTER, KICKASM., STARTER, KICK
-
70453588 WASHERWASHER
-
80453466 GEAR, STARTERGEAR, STARTER
