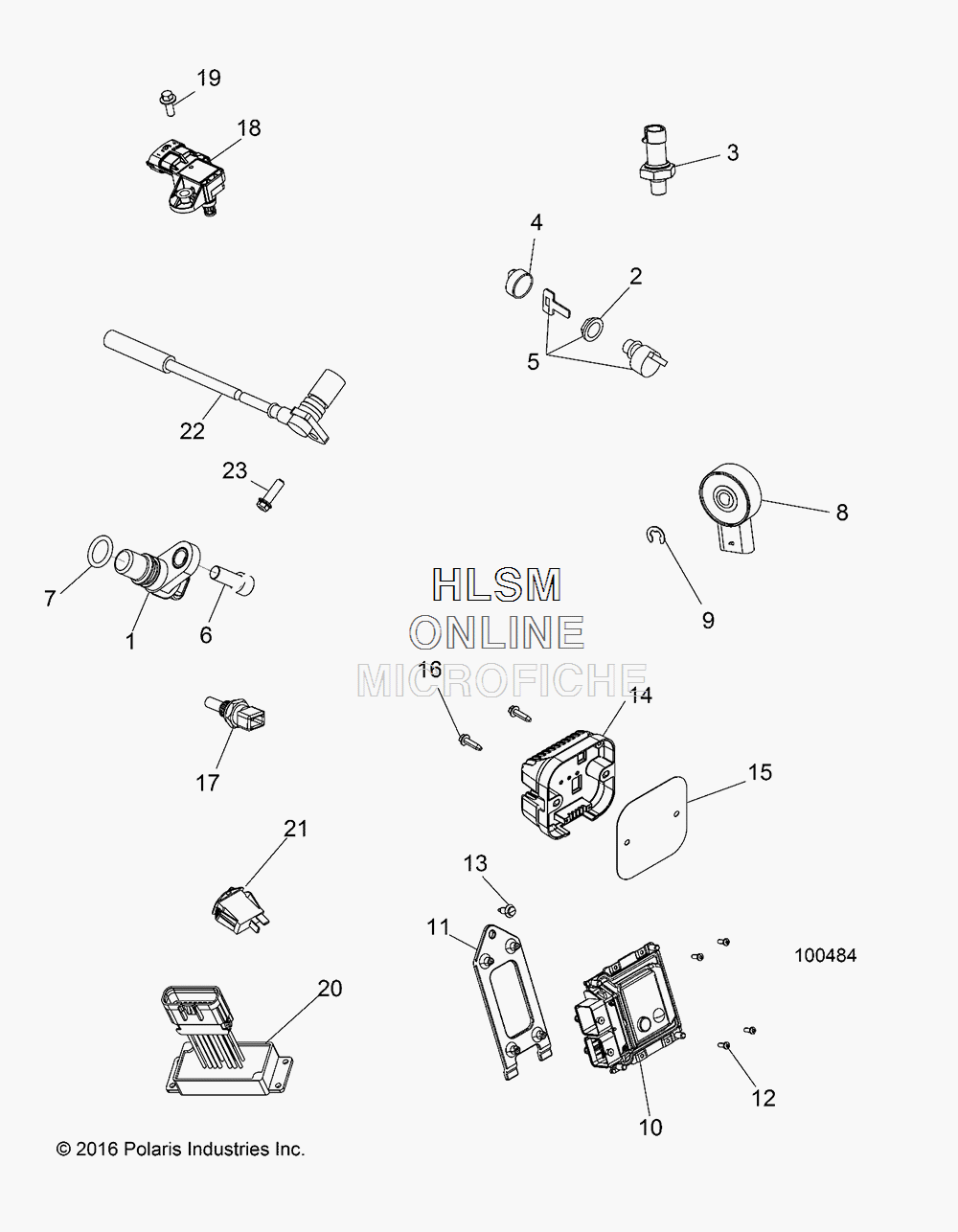

SWITCHES- SENSORS AND ECU для Polaris SPORTSMAN 570 6X6 TRACTOR (SAGE BRUSH GREEN ) [A18S6S57C1] - 2018 года выпуска
-
№АртикулНазвание
-
14013908 SENSOR, SPEEDSENSOR, SPEED
-
25433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
-
34015069 SWITCH-BRK, 1/8 IN-27 NPTF, SEALED (BRAKE LIGHTS)SWITCH-BRK, 1/8 IN-27 NPTF, SEALED (BRAKE LIGHTS)
-
45433534 COVER, KEYCOVER, KEY
-
54012166 SWITCH-KEY, 4 POS, ATV, MT SLV (INCL. 5, 7, KEY)SWITCH-KEY, 4 POS, ATV, MT SLV (INCL. 5, 7, KEY)
-
54010278 BLANK, KEY, SERIES 2000, 2100, 6700, 6800BLANK, KEY, SERIES 2000, 2100, 6700, 6800
-
54010321 BLANK, KEY, SERIES 2200, 2300, 2700, 2800BLANK, KEY, SERIES 2200, 2300, 2700, 2800
-
63234247 SCREWSCREW
-
73234302 O-RINGO-RING
-
87661999 SWITCH, ROTARY, 2 PIN RESISTIVE (GEAR POSITION)SWITCH, ROTARY, 2 PIN RESISTIVE (GEAR POSITION)
-
93233834 RING, RETAININGRING, RETAINING
-
104014125 ECL-NO START, ME17ECL-NO START, ME17
-
115438708-070 MOUNT, ECL, REAR, BLACKMOUNT, ECL, REAR, BLACK
-
127519091 SCREWSCREW
-
137661855 RIVETRIVET
-
144015231 REGULATOR, 3PH, 50 AMPREGULATOR, 3PH, 50 AMP
-
155253294 COVER, VOLTAGE REGULATORCOVER, VOLTAGE REGULATOR
-
167515179 SCREWSCREW
-
174010644 SENSOR, THERMISTERSENSOR, THERMISTER
-
182411528 SENSOR, TMAPSENSOR, TMAP
-
197516603 BOLTBOLT
-
204016552 MODULE-FLASH, TURN, TRAILER, TRCMODULE-FLASH, TURN, TRAILER, TRC
-
207512084 SCR-10-24X1/2, PHTXTRIRD, SEMS-YSCR-10-24X1/2, PHTXTRIRD, SEMS-Y
-
214011074 SWITCH-WORKLIGHT, ON/OFFSWITCH-WORKLIGHT, ON/OFF
-
222411719 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
227080367 CLAMP, CABLECLAMP, CABLE
-
237518576 SCREWSCREW
