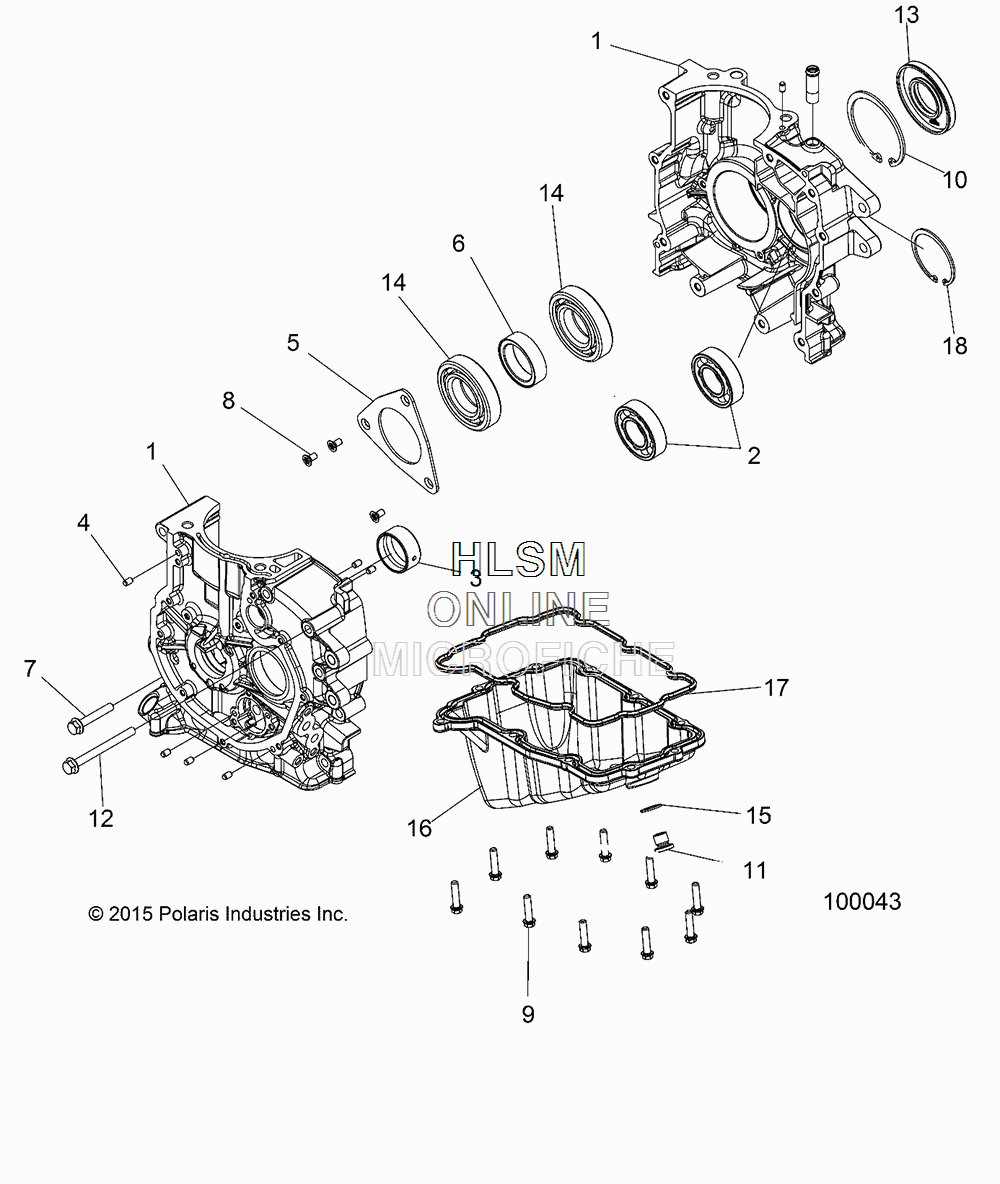

CRANKCASE для Polaris SPORTSMAN 570 SP (POLARIS PURSUIT CAMO) [A18SHD57B9] - 2018 года выпуска
-
№АртикулНазвание
-
12206361 KIT, CRANKCASE (INCL. 7, CASES, PINS, BREATHER PIPE)KIT, CRANKCASE (INCL. 7, CASES, PINS, BREATHER PIPE)
-
23514426 BEARING, BALLBEARING, BALL
-
45137611 PIN, DOWELPIN, DOWEL
-
55256915 PLATE, BEARING RETAINERPLATE, BEARING RETAINER
-
65140919 SPACER-BRG, MACHSPACER-BRG, MACH
-
77520105 SCREWSCREW
-
87517598 SCREWSCREW
-
97519754 SCREWSCREW
-
107710660 RING, SNAPRING, SNAP
-
117052306 PLUG, SOCKET, M12X1.5 DIN 908APLUG, SOCKET, M12X1.5 DIN 908A
-
127520104 SCREWSCREW
-
133610171 SEAL, CRANKSHAFTSEAL, CRANKSHAFT
-
143514389 BEARING, BALLBEARING, BALL
-
155812232 WASHER, COPPERWASHER, COPPER
-
165138327 PAN, OILPAN, OIL
-
175414626 GASKET, OIL PANGASKET, OIL PAN
-
187710681 RING, RETAININGRING, RETAINING
