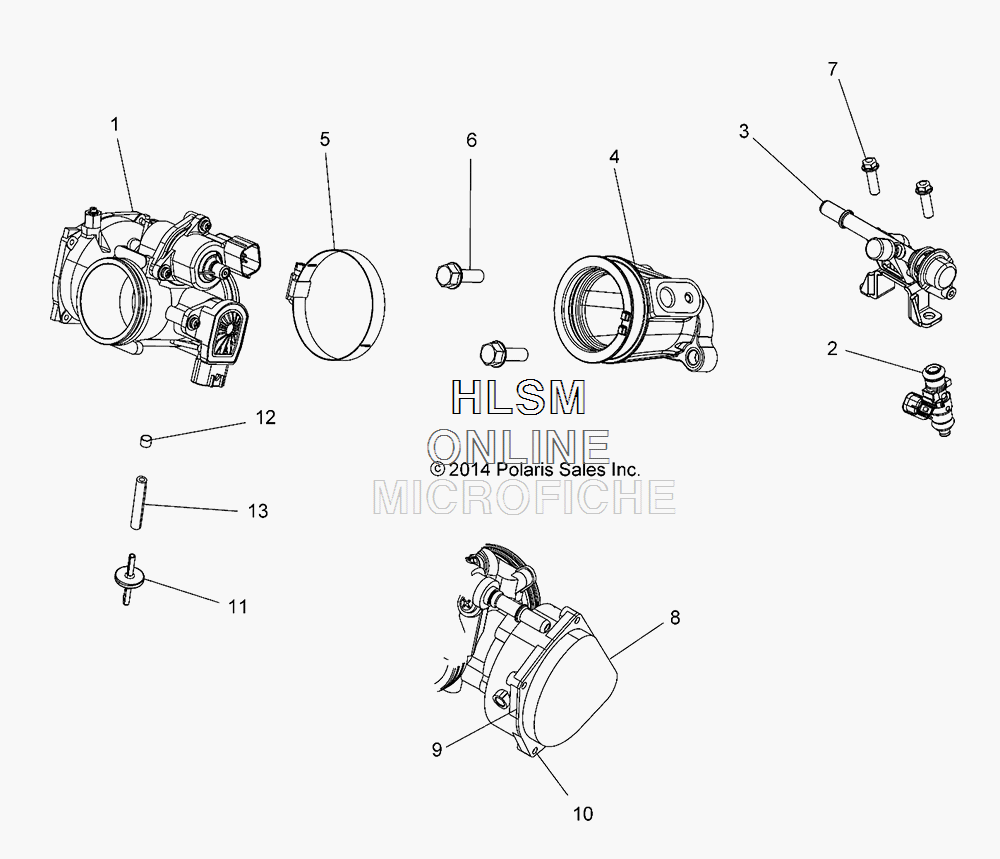

THROTTLE BODY W/ FUEL RAIL для Polaris SPORTSMAN 570 SP TR (TURBO SILVER) [A18SJE57BU] - 2018 года выпуска
-
№АртикулНазвание
-
11205009 ASM., THROTTLE BODYASM., THROTTLE BODY
-
22521068 INJECTOR, FUEL (INCL. O-RING)INJECTOR, FUEL (INCL. O-RING)
-
21500198 O-RING-BOSCH, EV-14, UPPERO-RING-BOSCH, EV-14, UPPER
-
32521403 RAIL, FUELRAIL, FUEL
-
45415524 ADAPTER-THROTTLE BODY, MECHADAPTER-THROTTLE BODY, MECH
-
57081623 CLAMP, HOSECLAMP, HOSE
-
67516734 SCREWSCREW
-
77518576 SCREWSCREW
-
85259059 COVER-THROTTLE BODYCOVER-THROTTLE BODY
-
95415104 GASKET-TB HOUSINGGASKET-TB HOUSING
-
107519292 SCREW, M4X0.7X8MMSCREW, M4X0.7X8MM
-
117052038 CHECK VALVECHECK VALVE
-
127080307 CLAMP, HOSECLAMP, HOSE
-
138450003-55 FUEL LINE, 1/4 ID(1525 CM.)FUEL LINE, 1/4 ID(1525 CM.)
