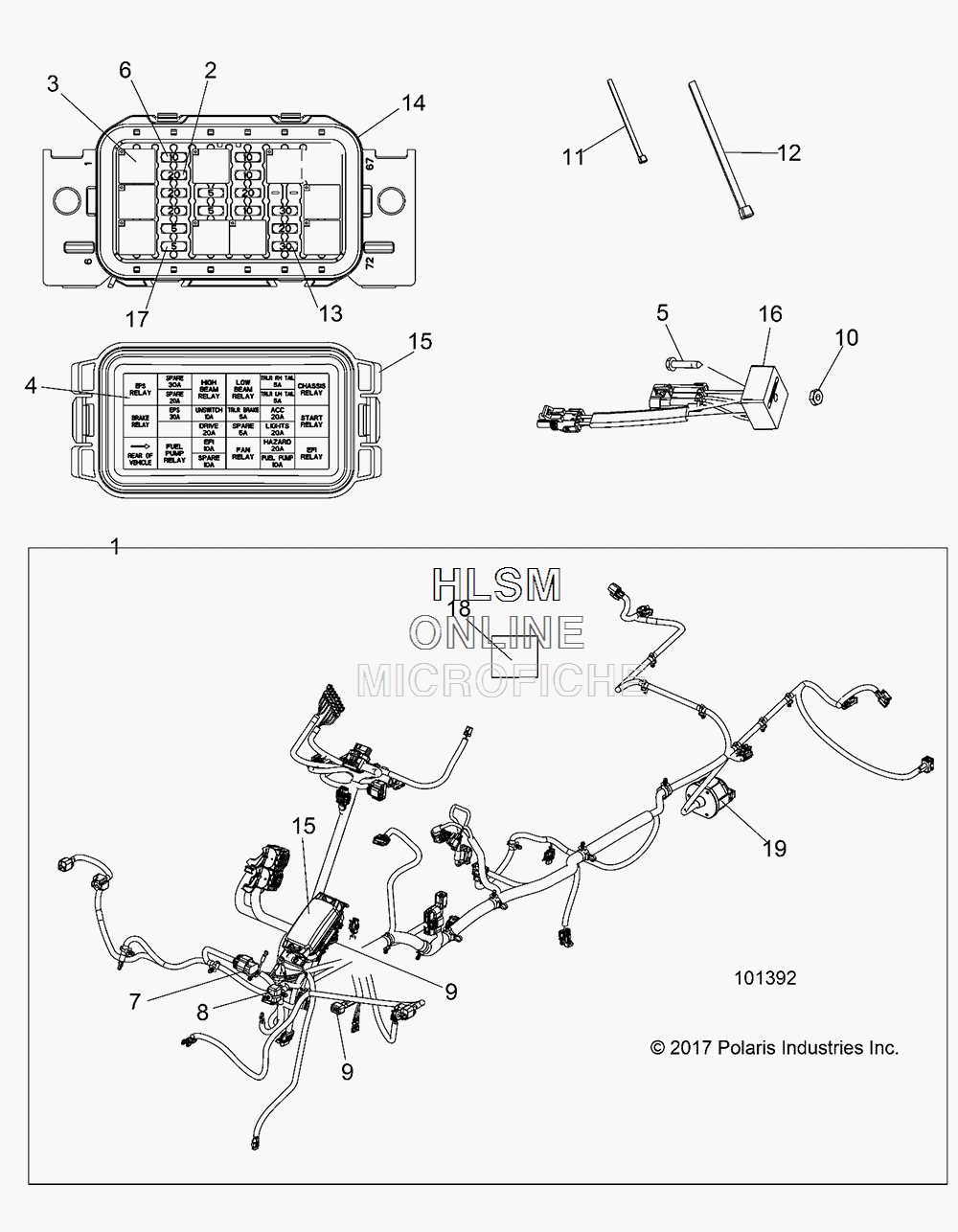

WIRE HARNESS для Polaris SPORTSMAN 570 X2 EPS EU (SAGE BRUSH GREEN METALLIC) [A18SWE57F1] - 2018 года выпуска
-
№АртикулНазвание
-
12414018 HARNESS-MAIN, 570 X2/UTE TRCTR (INCL., 7-9, 15, 18-19 COVER)HARNESS-MAIN, 570 X2/UTE TRCTR (INCL., 7-9, 15, 18-19 COVER)
-
22434017 FUSE, 20 AMPFUSE, 20 AMP
-
34011283 RELAY, 12V, 20ARELAY, 12V, 20A
-
47186744 LABEL, FUSE BOXLABEL, FUSE BOX
-
57518418 SCREWSCREW
-
62434016 FUSE, 10 AMPFUSE, 10 AMP
-
74012170 CLIP, DIAGNOSTICCLIP, DIAGNOSTIC
-
82411086 BREAKER-CIRCUIT, 15 AMP, SEALEDBREAKER-CIRCUIT, 15 AMP, SEALED
-
92410000 DIODE, 6 AMPDIODE, 6 AMP
-
107542122 NUTNUT
-
117080138 CABLE TIECABLE TIE
-
127080761 STRAP-PANDUIT, 14 INSTRAP-PANDUIT, 14 IN
-
132434015 FUSE, 30 AMPFUSE, 30 AMP
-
144015058 FUSEBOXFUSEBOX
-
154014047 COVER, FUSEBOXCOVER, FUSEBOX
-
164012829 RELAY, 9A, LONG LDRELAY, 9A, LONG LD
-
174011652 FUSE, 5 AMPFUSE, 5 AMP
-
184016237 SWITCH, KI OTTOSWITCH, KI OTTO
-
194012558 CONNECTOR, & WAYCONNECTOR, & WAY
