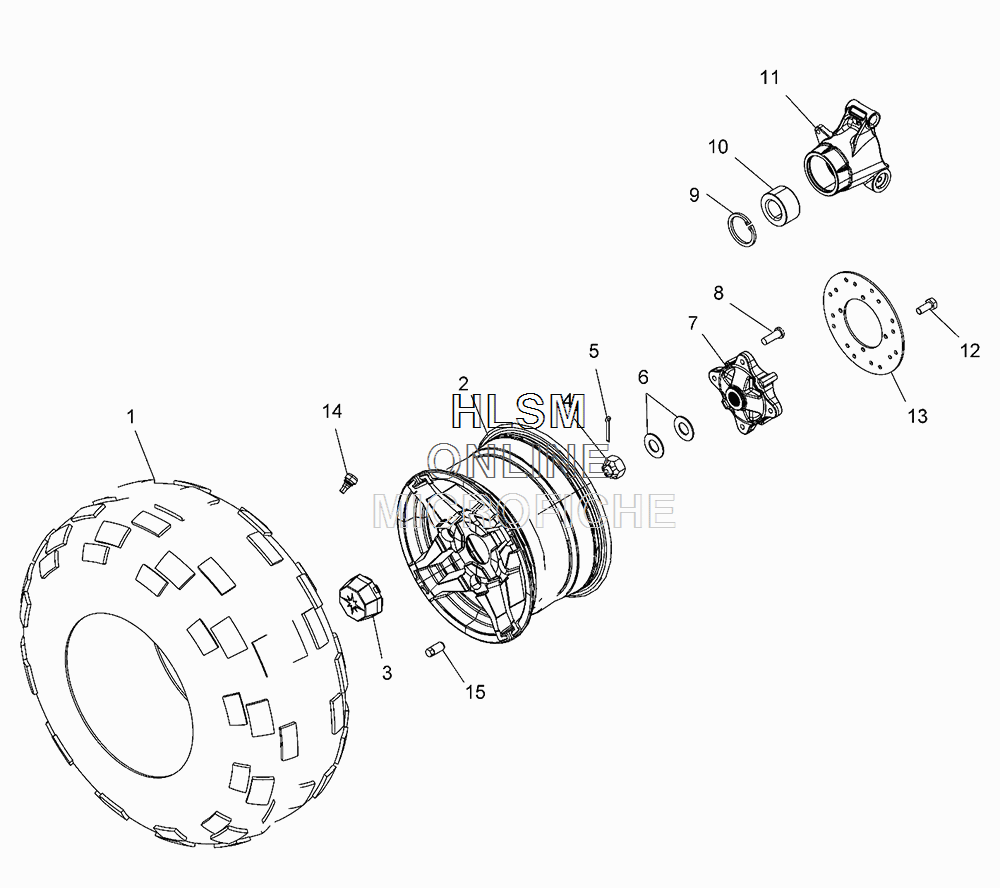

WHEEL - REAR W/ BRAKE DISK для Polaris SPORTSMAN 570 X2 EPS TRACTOR (WHITE LIGHTING) [A18SWS57E3] (EUROPE) - 2018 года выпуска
-
№АртикулНазвание
-
15414105 TIRE-REAR,26X10-14,ECON,E-MARKTIRE-REAR,26X10-14,ECON,E-MARK
-
21522276-067 RIM-REAR,CAST,14X7.5,BLACKRIM-REAR,CAST,14X7.5,BLACK
-
35451374-067 COVER-HUB,BLACKCOVER-HUB,BLACK
-
47547337 NUT, CASTLENUT, CASTLE
-
57661404 PIN, COTTERPIN, COTTER
-
67555796 WASHER, CONEWASHER, CONE
-
75135113 HUB, REAR WHEELHUB, REAR WHEEL
-
87518378 STUDSTUD
-
97710440 RING, RETAININGRING, RETAINING
-
103514635 BEARING, WHEEL,40X74X40MMBEARING, WHEEL,40X74X40MM
-
115135563 CARRIER, BEARING, WHEELCARRIER, BEARING, WHEEL
-
127518903 BOLTBOLT
-
135248250 DISC, BRAKE, REARDISC, BRAKE, REAR
-
141525017 VALVE, RIMVALVE, RIM
-
157547309 NUT, WHEELNUT, WHEEL
