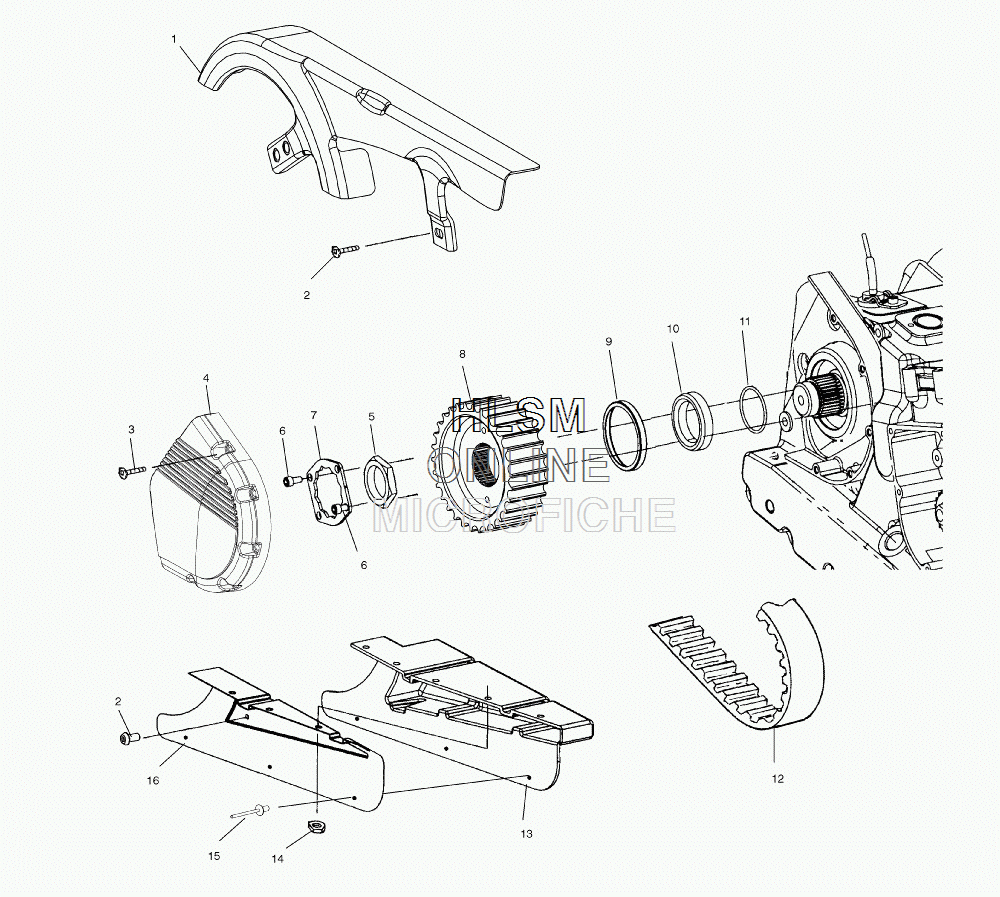

FRONT DRIVE SPROCKET для Polaris SPORT CRUISER (49 STATE) [V00CS15DC] - 2000 года выпуска
-
№АртикулНазвание
-
11013123-067 GUARD,BELT,UPPER,1 PC, BLACKGUARD,BELT,UPPER,1 PC, BLACK
-
27517359 SCREWSCREW
-
37517259 SCREW,SOCHD,SCREW,SOCHD,
-
45132267 COVER-SPROCKET OUTER BLACK, DCCOVER-SPROCKET OUTER BLACK, DC
-
57547020 NUT,HEX SNUT,HEX S
-
67517272 SCREW,SOCHD,M6X15SCREW,SOCHD,M6X15
-
75244114 WASHER-LOCK PLATE M36WASHER-LOCK PLATE M36
-
85132748 SPROCKET,DRIVE,30TSPROCKET,DRIVE,30T
-
93610057 SEALSEAL
-
105131559 SLEEVE,SEAL SSLEEVE,SEAL S
-
113610056 O-RINGO-RING
-
123211085 BELT,DRIVE,GLASSBELT,DRIVE,GLASS
-
135433347 GUARD,BELT,LWR SGUARD,BELT,LWR S
-
147547120 NUTNUT
-
157621478 RIVETRIVET
-
165243654 CVR,BELTGUARD,LWR SCVR,BELTGUARD,LWR S
