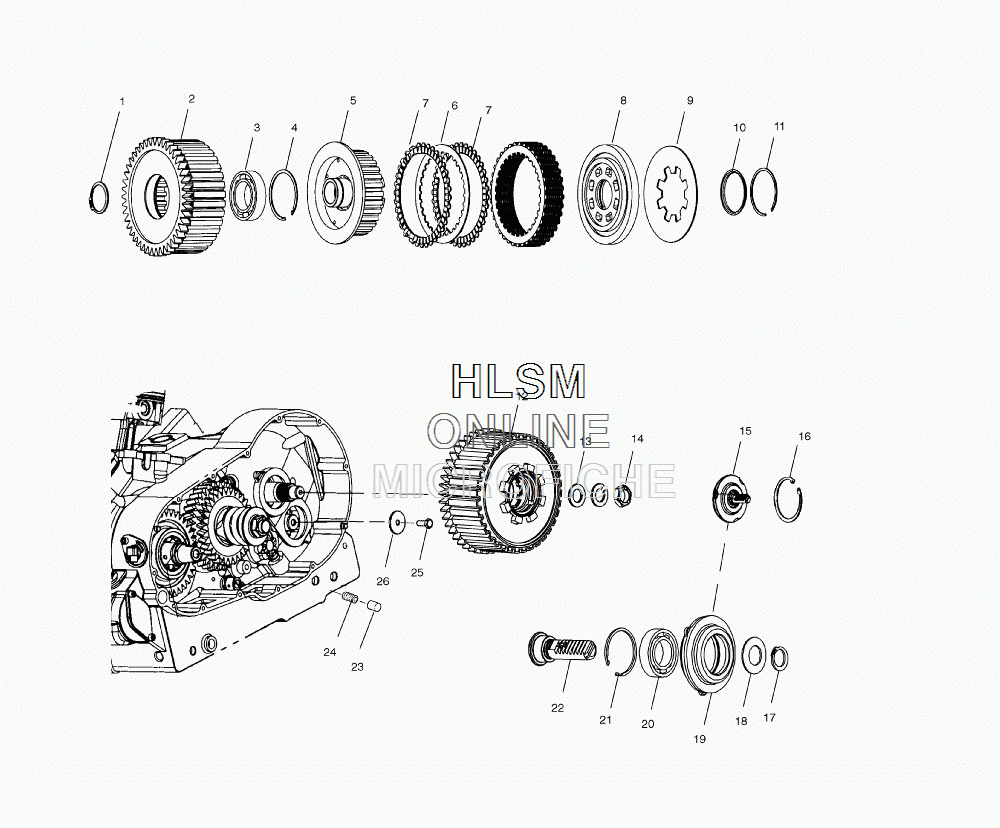

DRIVE CLUTCH для Polaris DELUXE CRUISER (49 STATE) [V01CD15DA] - 2001 года выпуска

№

Артикул

Название
1A

2202434 KIT, CLUTCH PACK

KIT, CLUTCH PACK

106 080 ₽
1

7670122 CIRCLIP-EXTERNAL,40MM

CIRCLIP-EXTERNAL,40MM

1 870 ₽
2

1341348 ASM-GEAR/BASKET

ASM-GEAR/BASKET

63 400 ₽
3

3514358 BEARING-BALL 40X68X15

BEARING-BALL 40X68X15

6 450 ₽
4

7670123 CIRCLIP-INTERNAL,62MM

CIRCLIP-INTERNAL,62MM

2 910 ₽
5

5132704 HUB-CLUTCH,MACH

HUB-CLUTCH,MACH

47 840 ₽
8

5132703 PLATE-PRESSURE,CLUTCH

PLATE-PRESSURE,CLUTCH

20 800 ₽
9

7041944 SPRING-DIAPHRAM,CLUTCH

SPRING-DIAPHRAM,CLUTCH

18 720 ₽
10

7710510 RING-SEAT,SNAP RING

RING-SEAT,SNAP RING

2 910 ₽
11

7670124 CIRCLIP-INTERNAL 68MM

CIRCLIP-INTERNAL 68MM

3 950 ₽
12

1321898 ASM-CLUTCH

ASM-CLUTCH

130 ₽
13

5131658 WASHER,HUB

WASHER,HUB

1 870 ₽
14

7547019 NUT

NUT

4 990 ₽
15

1321935 ASM-INSERT,PRESSURE PLATE/BRG (INCL. 19,20,21)

ASM-INSERT,PRESSURE PLATE/BRG (INCL. 19,20,21)

0 ₽
16

7710506 CIRCLIP-INTERNAL 49MM

CIRCLIP-INTERNAL 49MM

460 ₽
17

7710508 RING-RTNG,EXT,11.9X.6,0600096

RING-RTNG,EXT,11.9X.6,0600096

250 ₽
18

7556165 WASHER-SPRING,23X1.6X12.1

WASHER-SPRING,23X1.6X12.1

880 ₽
19

5132553 INSERT-PRESSURE PLATE,MACH

INSERT-PRESSURE PLATE,MACH

19 760 ₽
20

3514356 BEARING-BALL,17X30X7,6903

BEARING-BALL,17X30X7,6903

3 540 ₽
21

7670128 CIRCLIP-INTERNAL,30MM

CIRCLIP-INTERNAL,30MM

4 580 ₽
22

6230196 RACK-CLUTCH,MACH

RACK-CLUTCH,MACH

37 440 ₽
23

7051528 PLUG,M14X10

PLUG,M14X10

2 710 ₽
24

7517449 SCREW,SET,M10X16

SCREW,SET,M10X16

880 ₽
25

7517587 SCREW

SCREW

460 ₽
26

7556139 WASHER, FLAT

WASHER, FLAT

1 250 ₽
