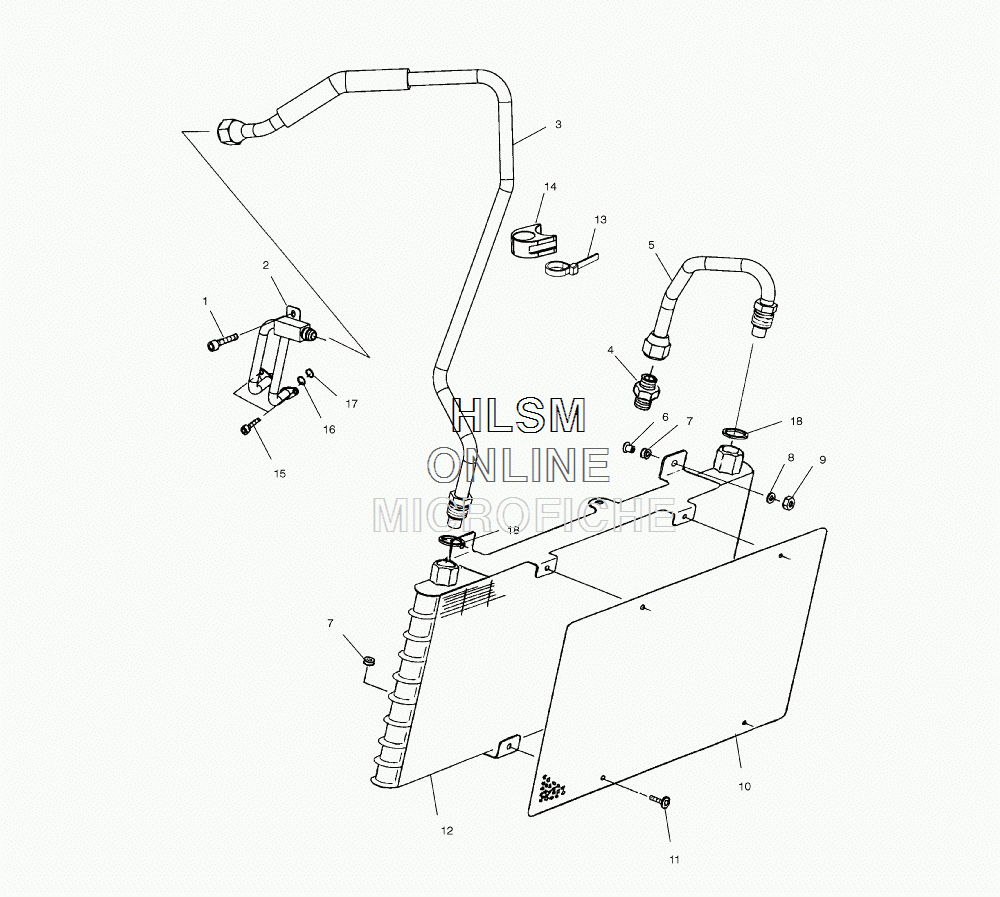

OIL COOLING для Polaris STANDARD CRUISER (CALIFORNIA) [V01CB15LC] - 2001 года выпуска
-
№АртикулНазвание
-
17517370 SCREW SSCREW S
-
22540043 MANIFOLD,COOLING,OILMANIFOLD,COOLING,OIL
-
35333908 TUBE-FORMED,OIL INLETTUBE-FORMED,OIL INLET
-
47052186 FITTING,OIL LINE,ENGINEFITTING,OIL LINE,ENGINE
-
55333909 TUBE-FORMED,OIL OUTLETTUBE-FORMED,OIL OUTLET
-
65010474 SLEEVE,COOLER MOUNTSLEEVE,COOLER MOUNT
-
75411579 GROMMET-OIL COLLERGROMMET-OIL COLLER
-
87556064 WASHERWASHER
-
97547120 NUTNUT
-
105243033 GUARD,COOLER,11 ROWGUARD,COOLER,11 ROW
-
117517573 SCREWSCREW
-
121240070 COOLER-OILCOOLER-OIL
-
137080906 CABLE TIE,HVY DUTY8-7/8'CABLE TIE,HVY DUTY8-7/8'
-
145411838 RUBBER-MOUNT,OIL HOSE,01RUBBER-MOUNT,OIL HOSE,01
-
157517405 SCREWSCREW
-
167556113 WASHERWASHER
-
175411356 O-RINGO-RING
-
185412027 O-RING,10.90X1.78,0600083O-RING,10.90X1.78,0600083
