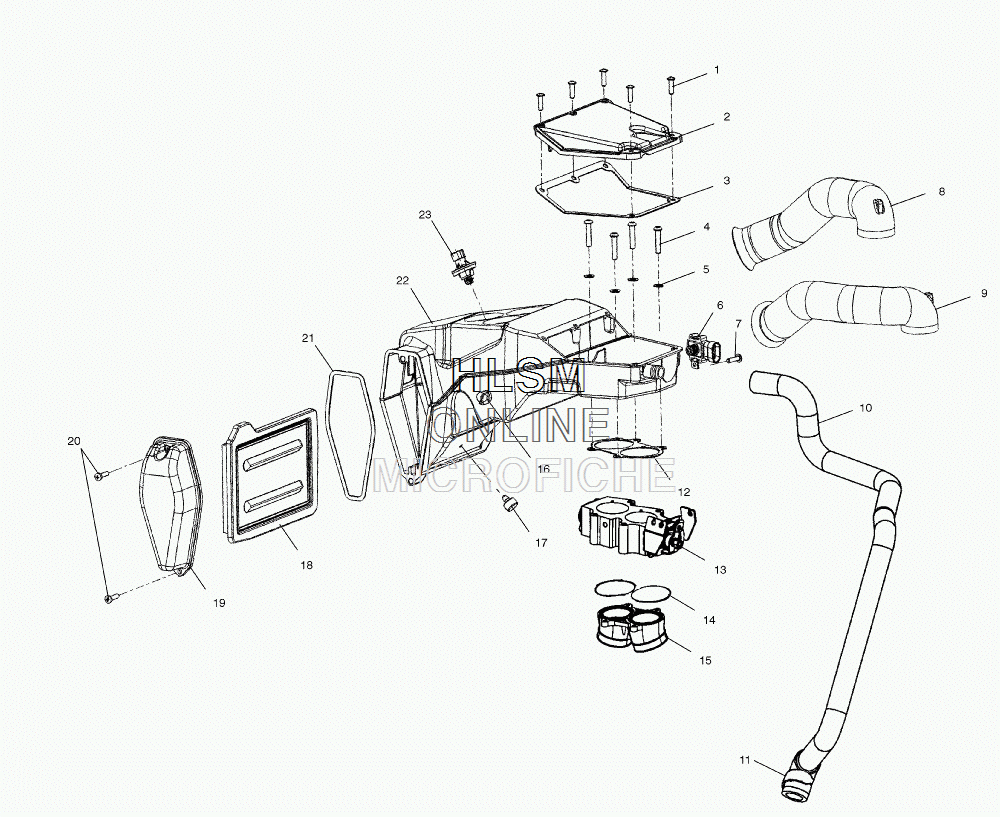

AIR BOX для Polaris DELUXE TOURING CRUISER (UK) [V02TD16UC] - 2002 года выпуска
-
№АртикулНазвание
-
17517842 SCREWSCREW
-
25433466 COVER, AIRBOXCOVER, AIRBOX
-
35811867 SEAL, AIRBOX COVERSEAL, AIRBOX COVER
-
47517885 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
57556121 WASHER, FLATWASHER, FLAT
-
75211907 BRACKET, MAP SENSORBRACKET, MAP SENSOR
-
85433471 TUBE, INTAKE, RIGHT HANDTUBE, INTAKE, RIGHT HAND
-
95433470 TUBE, INTAKE, LEFT HANDTUBE, INTAKE, LEFT HAND
-
105434070 HOSE, BREATHERHOSE, BREATHER
-
117080782 CLAMP, BREATHER HOSECLAMP, BREATHER HOSE
-
125811908 GASKET, AIRBOXGASKET, AIRBOX
-
145412259 O-RINGO-RING
-
151253335 ADAPTOR, THROTTLE BODYADAPTOR, THROTTLE BODY
-
165432302 CLIP, RETAINERCLIP, RETAINER
-
175811869 BUMPER, RUBBERBUMPER, RUBBER
-
187080858 FILTER, AIRFILTER, AIR
-
195433469 COVER, AIR FILTERCOVER, AIR FILTER
-
207517816 SCREWSCREW
-
215811866 SEAL, FILTER, ACCESS HATCHSEAL, FILTER, ACCESS HATCH
-
221013720 AIRBOXAIRBOX
