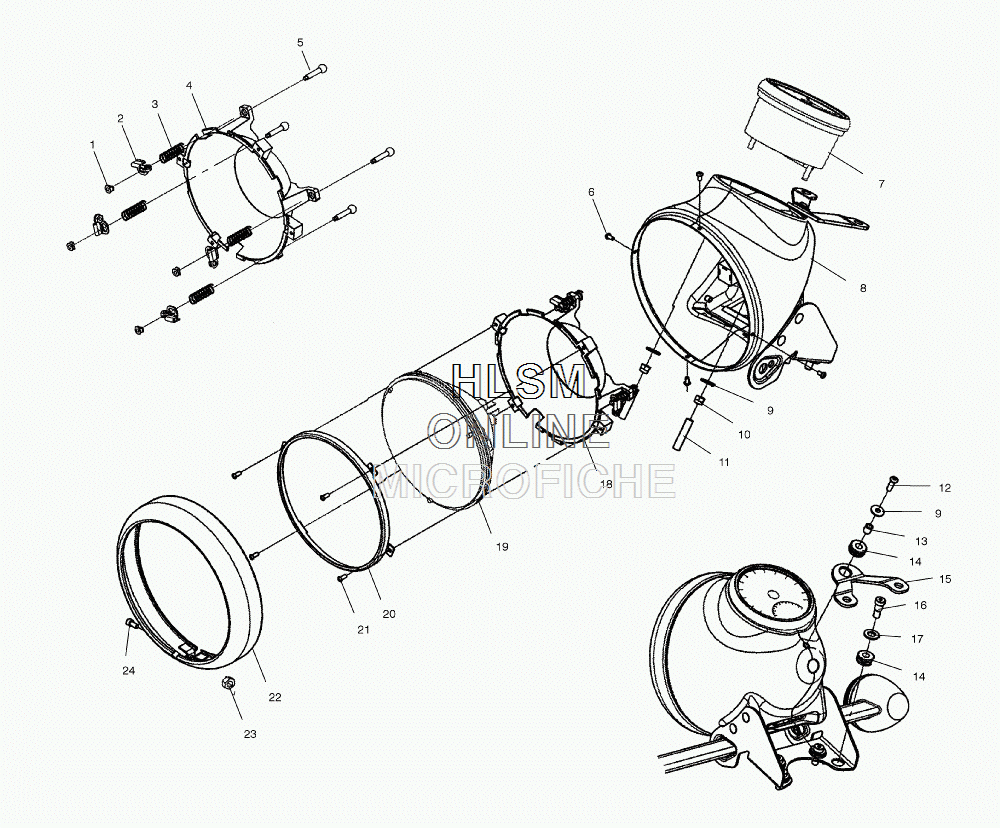

HEADLIGHT для Polaris STANDARD CRUISER (49 STATE) [V02CB16DC] - 2002 года выпуска
-
№АртикулНазвание
-
15433953 NUT, ADJUSTNUT, ADJUST
-
21013696 BRACKET, ADJUSTBRACKET, ADJUST
-
37041958 SPRINGSPRING
-
45433952 MOUNT, INNERMOUNT, INNER
-
57547162 SCREWSCREW
-
67517486 SCREWSCREW
-
73280386 ASM., GAUGE, SPEED/TACHASM., GAUGE, SPEED/TACH
-
75811529 GASKET, SPEEDOMETERGASKET, SPEEDOMETER
-
81013272 ASM., HEADLIGHT HOUSINGASM., HEADLIGHT HOUSING
-
97556064 WASHER, FLATWASHER, FLAT
-
107547106 NUT, NYLOKNUT, NYLOK
-
115411938 CAP, THREAD COVERCAP, THREAD COVER
-
127517504 SCREWSCREW
-
135132725 SLEEVE, UPPERSLEEVE, UPPER
-
145411982 GROMMET, UPPERGROMMET, UPPER
-
155244942 BRACKET, UPPERBRACKET, UPPER
-
167517852 SCREWSCREW
-
177556123 WASHER, FLATWASHER, FLAT
-
181013362 ASM, MOUNT ADJUST, INNERASM, MOUNT ADJUST, INNER
-
194010160 HEADLIGHT, SEALED BEAMHEADLIGHT, SEALED BEAM
-
205244923 RING, RETAININGRING, RETAINING
-
217517829 SCREWSCREW
-
221013290 BEZELBEZEL
-
237547059 NUT, NYLOKNUT, NYLOK
-
247517967 SCREWSCREW
