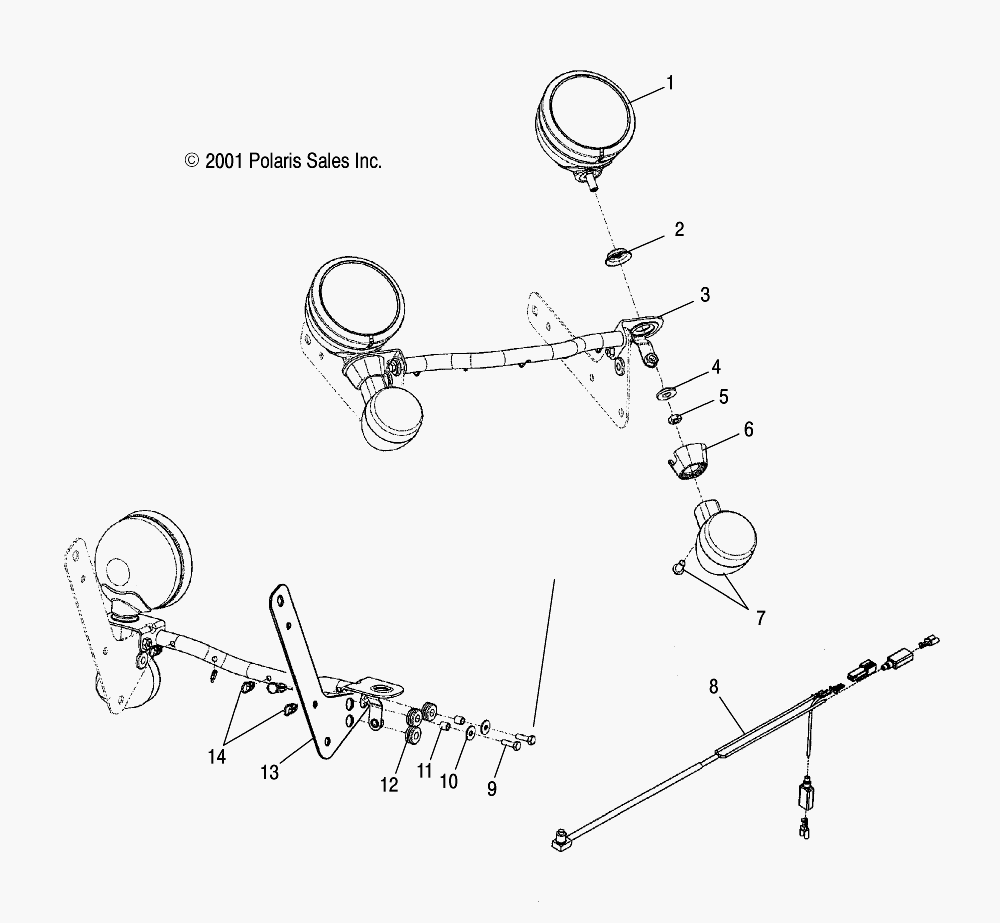

TURN SIGNAL AND LIGHT BAR для Polaris TOURING CRUISER (CALIFORNIA) [V03TB16LA] - 2003 года выпуска
-
№АртикулНазвание
-
12410167 ASM., DRIVING LIGHTASM., DRIVING LIGHT
-
14010759 BULB, DRIVING LIGHTBULB, DRIVING LIGHT
-
25245530 MOUNT, DRIVING LIGHT, UPPERMOUNT, DRIVING LIGHT, UPPER
-
31013111 TUBE/MOUNTS, LIGHT BARTUBE/MOUNTS, LIGHT BAR
-
45133037 MOUNT, DRIVING LIGHT, INNERMOUNT, DRIVING LIGHT, INNER
-
57542414 NUTNUT
-
65434219 MOUNT, TURN SIGNALMOUNT, TURN SIGNAL
-
72410262 ASM., TURN SIGNAL, FRONT, LEFT HANDASM., TURN SIGNAL, FRONT, LEFT HAND
-
72410263 ASM., TURN SIGNAL, FRONT, RIGHT HANDASM., TURN SIGNAL, FRONT, RIGHT HAND
-
72202737 KIT, TURN SIGNAL LENS, AMBER (INCL. SCREW)KIT, TURN SIGNAL LENS, AMBER (INCL. SCREW)
-
74030064 BULB, DUAL FILAMENTBULB, DUAL FILAMENT
-
82460956 HARNESS, DRIVING LIGHTHARNESS, DRIVING LIGHT
-
97517429 SCREWSCREW
-
107556064 WASHER, FLATWASHER, FLAT
-
115132725 SLEEVE, UPPERSLEEVE, UPPER
-
125411982 GROMMET, UPPERGROMMET, UPPER
-
135245531 MOUNT, DRIVING LIGHTMOUNT, DRIVING LIGHT
-
145433140 DART, HANDLEBARDART, HANDLEBAR
