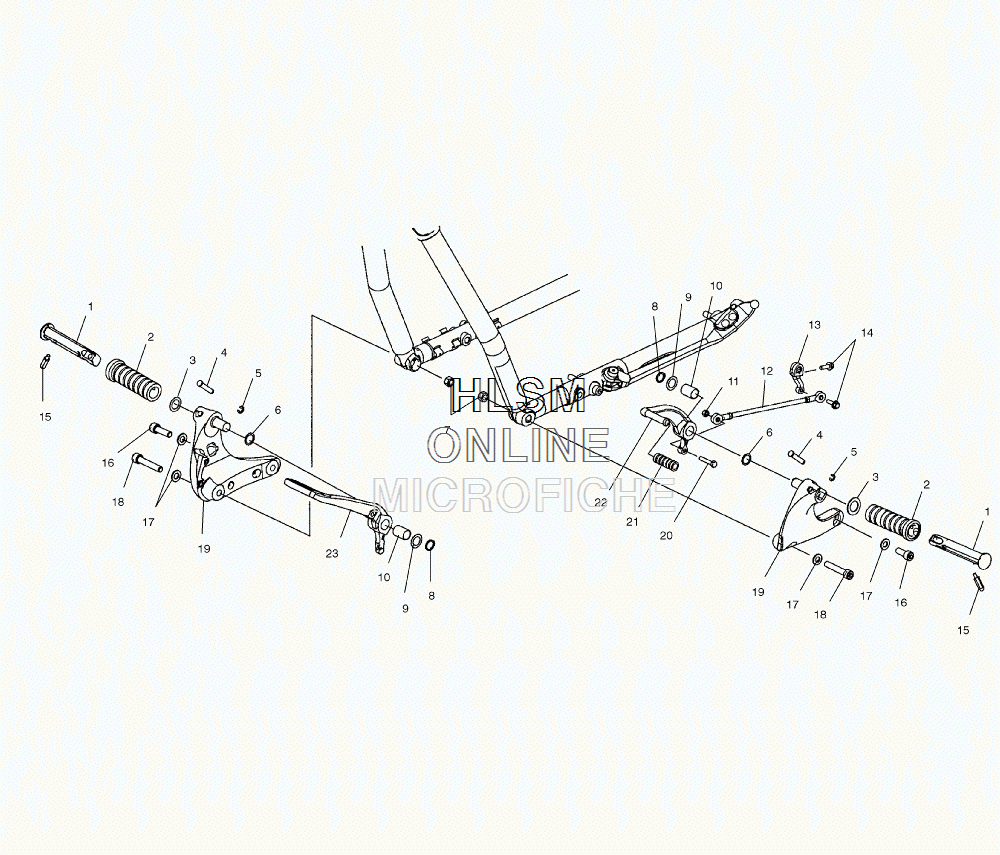

FOOTREST AND CONTROLS для Polaris VICTORY VEGAS (CALIFORNIA) [V03GB16LA] - 2003 года выпуска
-
№АртикулНазвание
-
15133540-411 FOOTPEG, CC, LEFT HANDFOOTPEG, CC, LEFT HAND
-
15133526-411 FOOTPEG, CC, RIGHT HANDFOOTPEG, CC, RIGHT HAND
-
15133540-156 FOOTPEG, CC, LEFT HAND, CHROMEFOOTPEG, CC, LEFT HAND, CHROME
-
15133526-156 FOOTPEG, CC, RIGHT HAND, CHROMEFOOTPEG, CC, RIGHT HAND, CHROME
-
25412256 PAD, FOOTPEGPAD, FOOTPEG
-
37556241 WASHER, FLATWASHER, FLAT
-
47661167 PIN, PIVOTPIN, PIVOT
-
57710545 RING, RETAININGRING, RETAINING
-
67556273 WASHER, WAVEWASHER, WAVE
-
77547039 NUTNUT
-
87710499 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
97556075 WASHER, FLATWASHER, FLAT
-
103514335 BEARING, SHIFT PEDALBEARING, SHIFT PEDAL
-
117547230 NUTNUT
-
121013957 ASM., SHIFTER LINKAGEASM., SHIFTER LINKAGE
-
135133530 LEVER, SHIFTERLEVER, SHIFTER
-
147518141 SCREWSCREW
-
155133539 FEELER, FOOTPEGFEELER, FOOTPEG
-
167518101 SCREWSCREW
-
177556234 WASHER, FLATWASHER, FLAT
-
187518146 SCREWSCREW
-
195133527-385 SUPPORT, FOOTPEG, LEFT HANDSUPPORT, FOOTPEG, LEFT HAND
-
195133529-385 SUPPORT, FOOTPEG, RIGHT HANDSUPPORT, FOOTPEG, RIGHT HAND
-
207518147 SCREWSCREW
-
215411364 PAD, SHIFT PEDALPAD, SHIFT PEDAL
-
225133528-385 PEDAL, SHIFT LEVERPEDAL, SHIFT LEVER
-
235133525-385 PEDAL, BRAKE LEVERPEDAL, BRAKE LEVER
