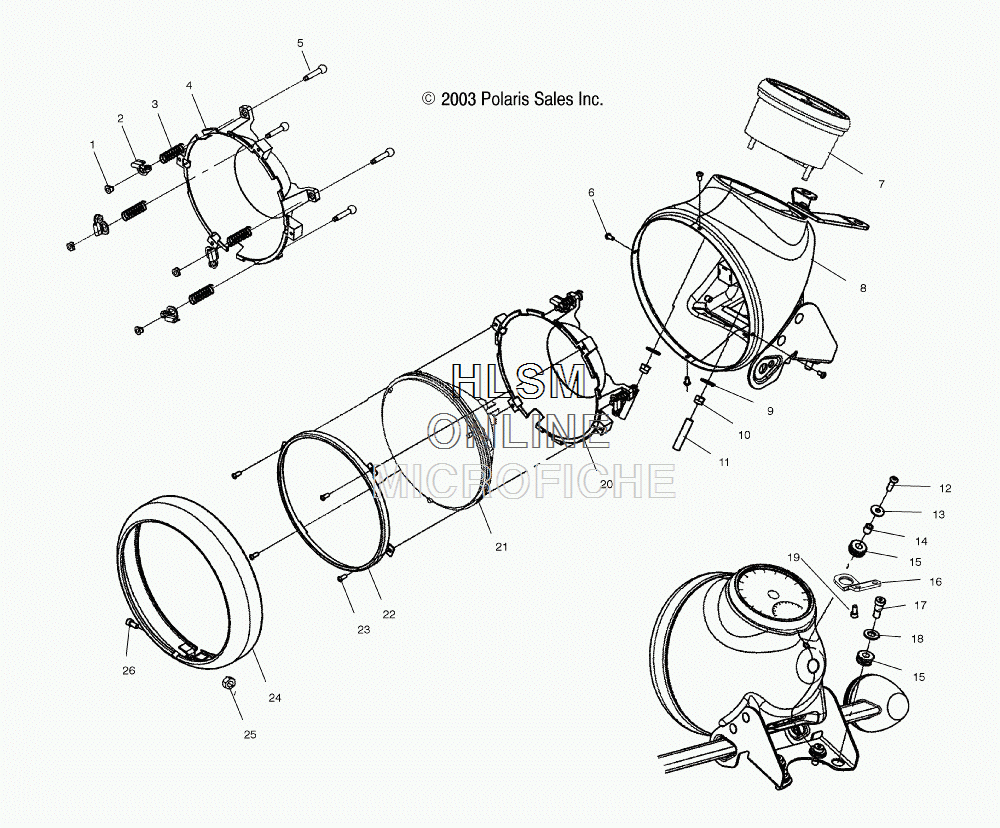

HEADLIGHT для Polaris TOURING CRUISER (49 STATE) [V04TB16DA] - 2004 года выпуска
-
№АртикулНазвание
-
15433953 NUT, ADJUST, HEADLIGHTNUT, ADJUST, HEADLIGHT
-
21013696 BRACKET, ADJUST, HEADLIGHTBRACKET, ADJUST, HEADLIGHT
-
37041958 SPRING, COMPRESSION, HEADLIGHTSPRING, COMPRESSION, HEADLIGHT
-
45433952 MOUNT, INNER, HEADLIGHTMOUNT, INNER, HEADLIGHT
-
57547162 SCREW, ADJUSTER, HEADLIGHTSCREW, ADJUSTER, HEADLIGHT
-
67517486 SCREWSCREW
-
73280446 GAUGE, SPEED/TACHGAUGE, SPEED/TACH
-
75811529 GASKET, SPEEDOMETERGASKET, SPEEDOMETER
-
81013468 ASM., HEADLIGHT HOUSINGASM., HEADLIGHT HOUSING
-
97556064 WASHER, FLATWASHER, FLAT
-
107547106 NUT, NYLOKNUT, NYLOK
-
115411938 CAP, THREAD COVERCAP, THREAD COVER
-
127517504 SCREWSCREW
-
137556228 WASHERWASHER
-
145132725 SLEEVE, UPPERSLEEVE, UPPER
-
155411982 GROMMET, UPPERGROMMET, UPPER
-
165247320 BRACKET, HEADLIGHT, UPPERBRACKET, HEADLIGHT, UPPER
-
177517852 SCREWSCREW
-
187556155 WASHER, FLATWASHER, FLAT
-
197517704 SCREWSCREW
-
201013362 ASM, MOUNT ADJUSTMENT, INNER (INCL. 1-5)ASM, MOUNT ADJUSTMENT, INNER (INCL. 1-5)
-
214010160 HEADLIGHT, SEALED BEAMHEADLIGHT, SEALED BEAM
-
214010441 HEADLIGHT, HALOGEN, UKHEADLIGHT, HALOGEN, UK
-
225244923 RING, RETAININGRING, RETAINING
-
237517910 SCREWSCREW
-
241013290 BEZEL, HEADLIGHTBEZEL, HEADLIGHT
-
257547059 NUT, NYLOKNUT, NYLOK
-
267517845 SCREWSCREW
