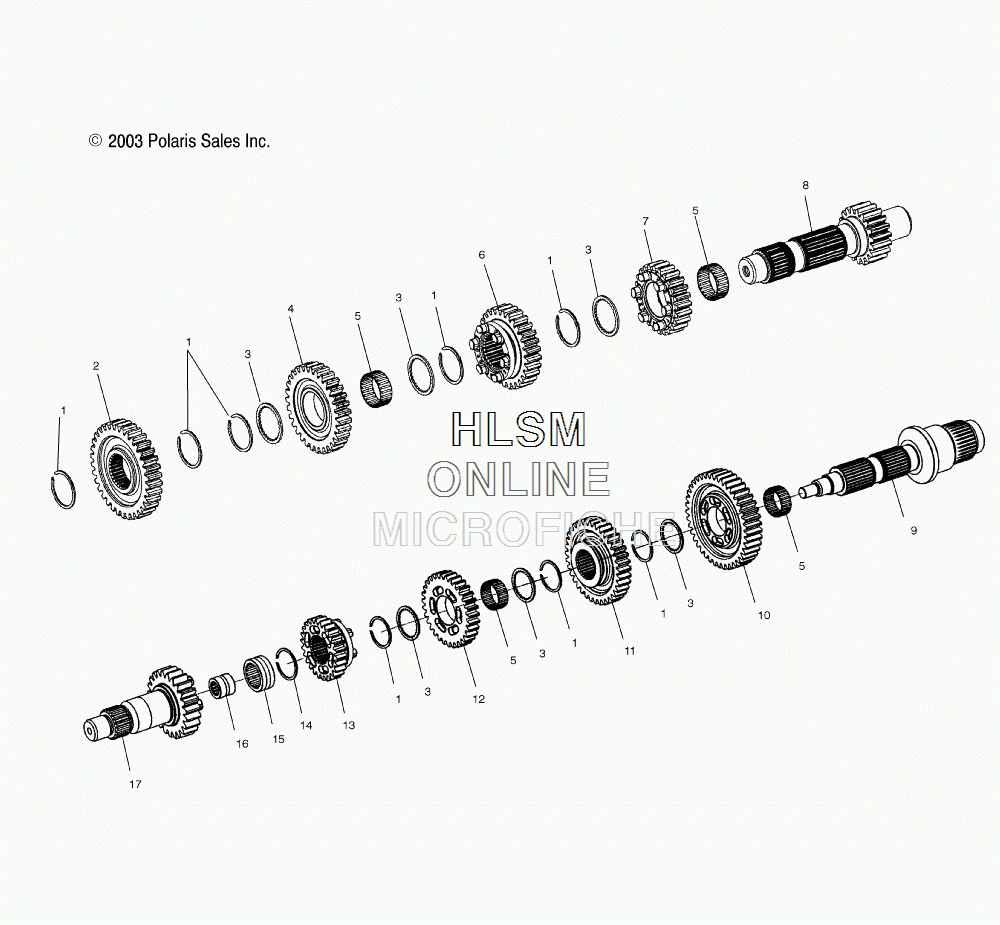

TRANSMISSION для Polaris TOURING CRUISER (CALIFORNIA) [V04TB16LA] - 2004 года выпуска
-
№АртикулНазвание
-
17710525 RING, RETAININGRING, RETAINING
-
26230234 GEAR, COMMON, COUNTERSHAFT, 34TGEAR, COMMON, COUNTERSHAFT, 34T
-
35246272 WASHER, THRUSTWASHER, THRUST
-
46230264 GEAR, 4TH COUNTERSHAFT, 31TGEAR, 4TH COUNTERSHAFT, 31T
-
53584006 BEARING, ROLLERBEARING, ROLLER
-
66230263 GEAR, 3RD COUNTERSHAFT, 28TGEAR, 3RD COUNTERSHAFT, 28T
-
76230257 GEAR 2ND COUNTERSHAFT, 24TGEAR 2ND COUNTERSHAFT, 24T
-
86230259 SHAFT, COUNTER, 19TSHAFT, COUNTER, 19T
-
96230228 SHAFT, MAINSHAFT, MAIN
-
106230260 GEAR, 1ST MAINSHAFT, 38TGEAR, 1ST MAINSHAFT, 38T
-
116230258 GEAR, 2ND MAINSHAFT, 33TGEAR, 2ND MAINSHAFT, 33T
-
126230261 GEAR, 3RD MAINSHAFT, 29TGEAR, 3RD MAINSHAFT, 29T
-
136230262 GEAR, 4TH MAINSHAFT, 26TGEAR, 4TH MAINSHAFT, 26T
-
147710535 RING, RETAININGRING, RETAINING
-
153514401 BEARING, ROLLERBEARING, ROLLER
-
163514359 BEARING, NEEDLEBEARING, NEEDLE
-
171341411 ASM., CLUTCHSHAFT, 5TH GEAR (INCL. 15,16)ASM., CLUTCHSHAFT, 5TH GEAR (INCL. 15,16)
-
171341452 ASM., COUNTERSHAFT (INCL. 1-8)ASM., COUNTERSHAFT (INCL. 1-8)
-
171341451 ASM., MAINSHAFT (INCL. 1,3-12)ASM., MAINSHAFT (INCL. 1,3-12)
