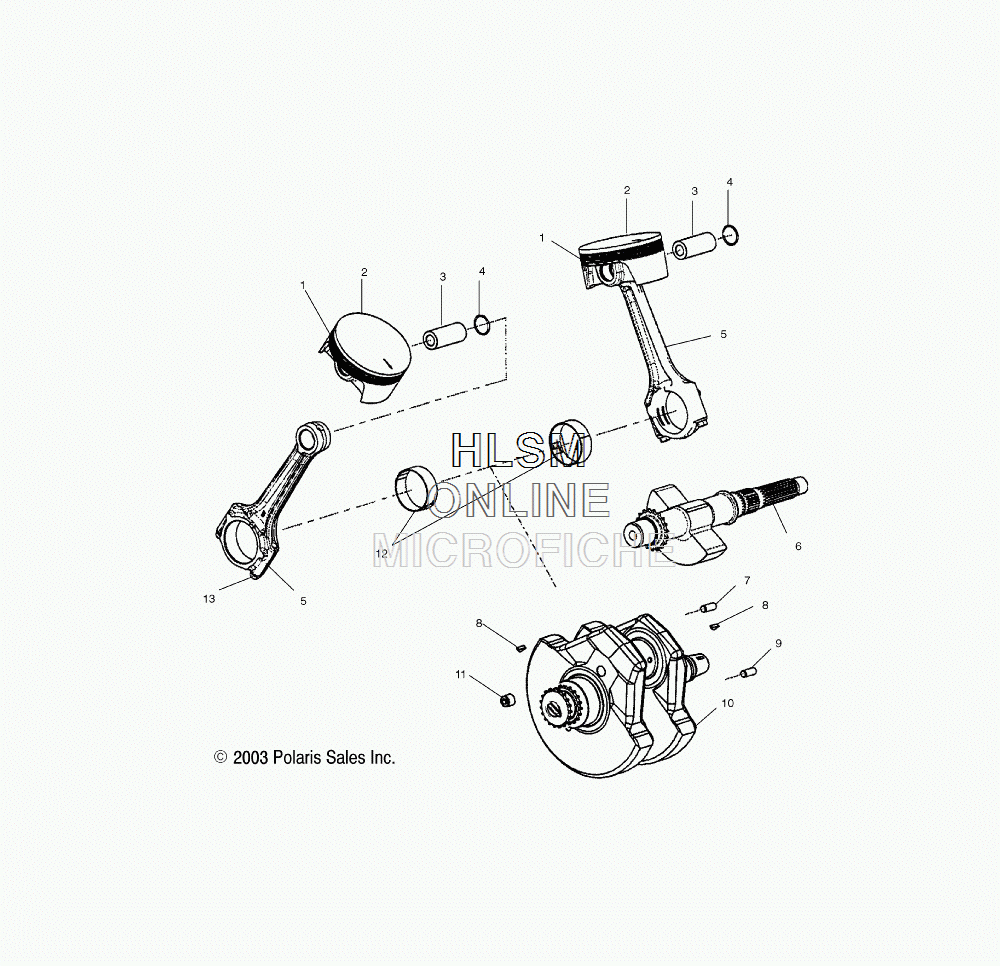

CRANKSHAFT для Polaris TOURING CRUISER (CANADA) [V04TB16CA] - 2004 года выпуска
-
№АртикулНазвание
-
12202393 KIT, PISTON RING (INCL. TOP, MIDDLE, BOTTOM RINGS)KIT, PISTON RING (INCL. TOP, MIDDLE, BOTTOM RINGS)
-
23021419 ASM., PISTON (INCL. PISTON, RINGS, CLIPS, PIN)ASM., PISTON (INCL. PISTON, RINGS, CLIPS, PIN)
-
35131860 PIN, WRISTPIN, WRIST
-
47710479 RING, RETAININGRING, RETAINING
-
53021196 ASM., CONNECTING ROD (INCL. 13)ASM., CONNECTING ROD (INCL. 13)
-
65133674 SHAFT, BALANCESHAFT, BALANCE
-
77661045 PIN, SOLIDPIN, SOLID
-
87721122 KEY, WOODRUFFKEY, WOODRUFF
-
97663010 PIN, SOLIDPIN, SOLID
-
103021274 ASM., CRANKSHAFT (INCL. 8,11)ASM., CRANKSHAFT (INCL. 8,11)
-
117052320 PLUGPLUG
-
123514390-067 BEARING, ROD, BLACKBEARING, ROD, BLACK
-
123514390-159 BEARING, ROD, ORANGEBEARING, ROD, ORANGE
-
123514390-027 BEARING, ROD, BLUEBEARING, ROD, BLUE
-
137517937 SCREWSCREW
