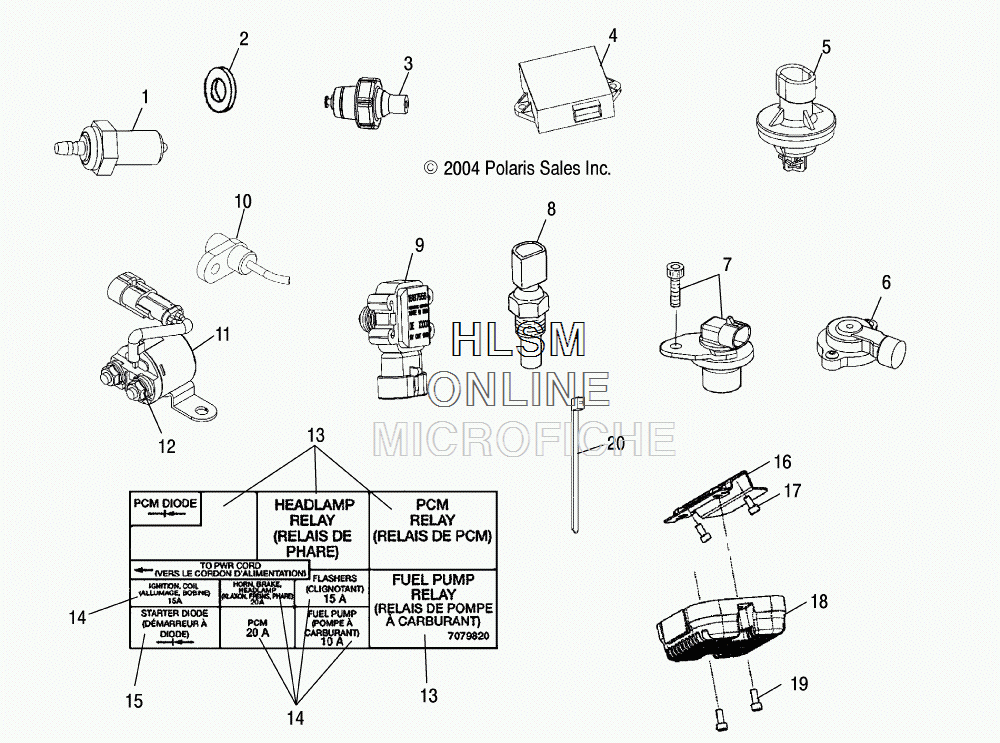

RELAYS AND SENSORS для Polaris TOURING CRUISER (CANADA) [V05TB16CA] - 2005 года выпуска
-
№АртикулНазвание
-
14110235 SWITCH, NEUTRAL INDICATORSWITCH, NEUTRAL INDICATOR
-
27556154 WASHER, FLATWASHER, FLAT
-
34010649 SENSOR, OIL PRESSURESENSOR, OIL PRESSURE
-
42410101 FLASHER, TURN SIGNAL, HAZARDFLASHER, TURN SIGNAL, HAZARD
-
54040077 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
64010225 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
61500201 O-RING, THROTTLE POSITIONO-RING, THROTTLE POSITION
-
74110217 SENSOR, CRANKSHAFT POSITIONSENSOR, CRANKSHAFT POSITION
-
77517272 SCREWSCREW
-
84040076 SENSOR, ENGINE TEMPERATURESENSOR, ENGINE TEMPERATURE
-
94040078 SENSOR, MAPSENSOR, MAP
-
104011111 SENSOR, SPEEDSENSOR, SPEED
-
114010947 SOLENOID, STARTERSOLENOID, STARTER
-
127547270 NUTNUT
-
132410314 RELAY, MICRORELAY, MICRO
-
142434016 FUSE, IGNITION, 10 AMP.FUSE, IGNITION, 10 AMP.
-
142434017 FUSE, PARK, 20 AMP.FUSE, PARK, 20 AMP.
-
142410280 FUSE, MINI BLADE, 15 AMP.FUSE, MINI BLADE, 15 AMP.
-
152434019 DIODE, STARTER CIRCUITDIODE, STARTER CIRCUIT
-
161013510 BRACKET, VOLTAGE REGULATOR (BLACK)BRACKET, VOLTAGE REGULATOR (BLACK)
-
161013623 BRACKET, VOLTAGE REGULATOR (SILVER)BRACKET, VOLTAGE REGULATOR (SILVER)
-
177517739 SCREWSCREW
-
182410337 ASM., REGULATOR, VOLTAGE (BLACK)ASM., REGULATOR, VOLTAGE (BLACK)
-
182410329 ASM., REGULATOR, VOLTAGE (SILVER)ASM., REGULATOR, VOLTAGE (SILVER)
-
197517272 SCREWSCREW
-
207080138 CABLE TIECABLE TIE
-
207080492 CABLE TIE, 11 INCHCABLE TIE, 11 INCH
-
207079820 DECAL, FUSE BOXDECAL, FUSE BOX
-
202460956 HARNESS, DRIVING LIGHTHARNESS, DRIVING LIGHT
-
202461130 HARNESS, JUMPER (PARKING LAMP)HARNESS, JUMPER (PARKING LAMP)
-
202460954 HARNESS, REARHARNESS, REAR
-
204010153 CONNECTOR, FENDER, REARCONNECTOR, FENDER, REAR
-
204010154 LOCK, CONNECTOR, FENDER, REARLOCK, CONNECTOR, FENDER, REAR
-
207080737 CLIP, ELECTRICALCLIP, ELECTRICAL
-
202461224 HARNESS, MAIN WIREHARNESS, MAIN WIRE
-
207080930 CLIP, WIRE HARNESSCLIP, WIRE HARNESS
-
202461135 HARNESS, JUMPER, FUEL INJECTORHARNESS, JUMPER, FUEL INJECTOR
