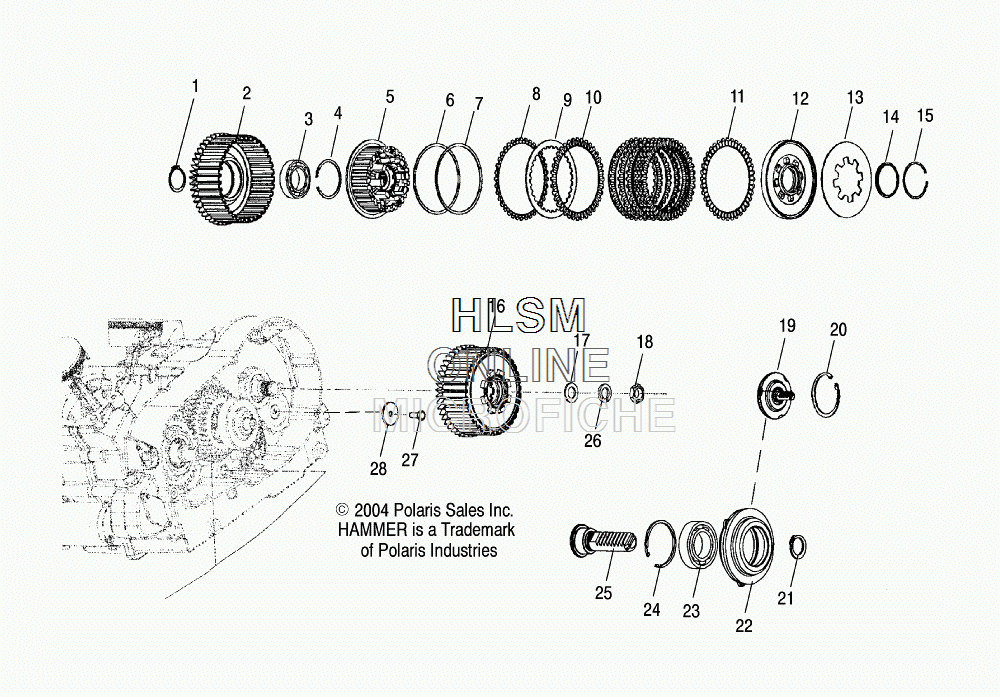

CLUTCH для Polaris VICTORY HAMMER (49 STATE) [V05HB26DA] - 2005 года выпуска
-
№АртикулНазвание
-
17710551 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
21341513 ASM., GEAR/BASKET, CLUTCHASM., GEAR/BASKET, CLUTCH
-
33514472 BEARING, BALLBEARING, BALL
-
47670123 CIRCLIP, INTERNALCIRCLIP, INTERNAL
-
55134324 HUB, CLUTCH, INNERHUB, CLUTCH, INNER
-
65246074 SEAT, JUDDER SPRINGSEAT, JUDDER SPRING
-
77042123 SPRING, DIAPHRAGM, JUDDERSPRING, DIAPHRAGM, JUDDER
-
85246077 PLATE, FRICTION JUDDERPLATE, FRICTION JUDDER
-
93230546 PLATE, SEPARATORPLATE, SEPARATOR
-
105246481 PLATE, FRICTIONPLATE, FRICTION
-
113230545 PLATE, FRICTION CLUTCHPLATE, FRICTION CLUTCH
-
125132703 PLATE, PRESSUREPLATE, PRESSURE
-
137041944 SPRING, CLUTCH, DIAPHRAGMSPRING, CLUTCH, DIAPHRAGM
-
147710510 RING, SNAPRING, SNAP
-
157670124 CIRCLIP, INTERNALCIRCLIP, INTERNAL
-
161322402 ASM., CLUTCHASM., CLUTCH
-
177556311 WASHERWASHER
-
187547019 NUTNUT
-
191341427 ASM., RACK INSERT (INCL. 22,23,24,25)ASM., RACK INSERT (INCL. 22,23,24,25)
-
207710506 CIRCLIPCIRCLIP
-
217710532 RING, RETAININGRING, RETAINING
-
225132553 INSERT, PRESSURE PLATEINSERT, PRESSURE PLATE
-
233514356 BEARING, BALLBEARING, BALL
-
247670128 CIRCLIP, INTERNALCIRCLIP, INTERNAL
-
256230245 RACK, CLUTCHRACK, CLUTCH
-
267556166 WASHER, LOCKWASHER, LOCK
-
277518312 SCREWSCREW
-
287556139 WASHER, FLATWASHER, FLAT
