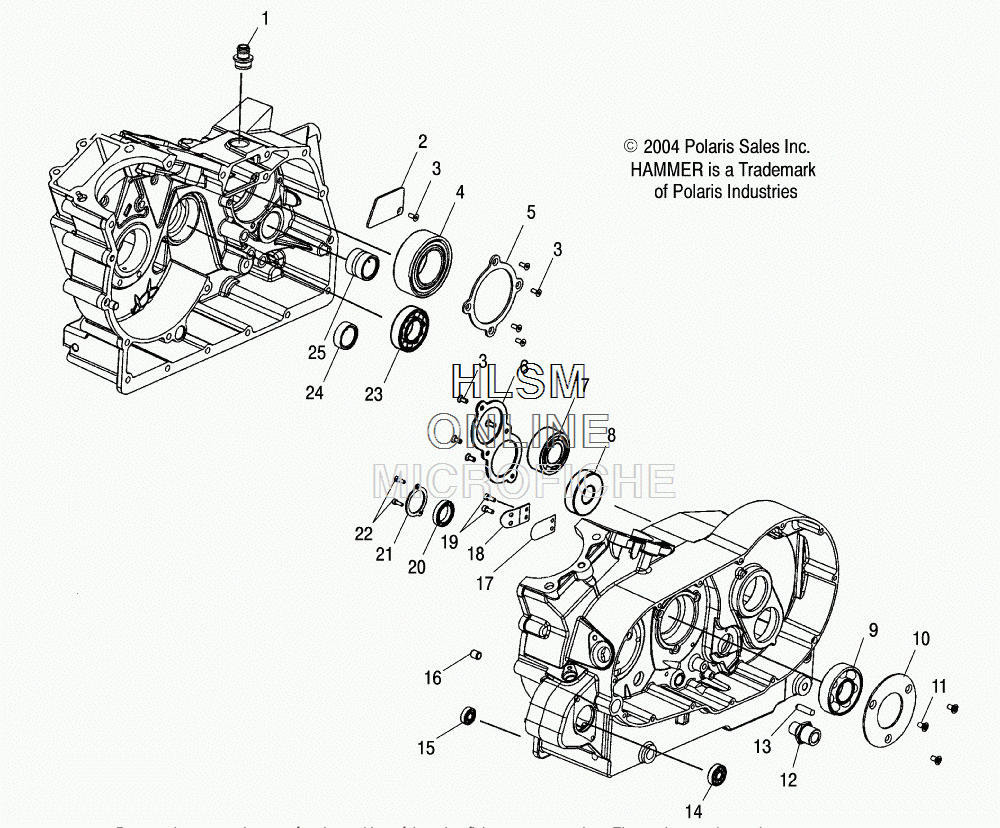

CRANKCASE BEARINGS для Polaris VICTORY HAMMER (CALIFORNIA) [V05HB26LA] - 2005 года выпуска
-
№АртикулНазвание
-
15132270 FITTING, BREATHERFITTING, BREATHER
-
25131792 PLATE, BREATHER BAFFLEPLATE, BREATHER BAFFLE
-
37517255 SCREWSCREW
-
43514529 BEARINGBEARING
-
55211817 PLATE, BEARING RETAINING (MAIN)PLATE, BEARING RETAINING (MAIN)
-
65211774 PLATE, BEARING RETAININGPLATE, BEARING RETAINING
-
73514465 BEARING, DOUBLE ROWBEARING, DOUBLE ROW
-
83513512 BEARING, BALLBEARING, BALL
-
93514404 BEARING, BALLBEARING, BALL
-
105211773 PLATE, RETAINING, BEARING (BALANCE)PLATE, RETAINING, BEARING (BALANCE)
-
117517598 SCREWSCREW
-
125132139 ADAPTOR, SHIFT SHAFTADAPTOR, SHIFT SHAFT
-
137661101 PIN, SOLIDPIN, SOLID
-
143513518 BEARING, BALLBEARING, BALL
-
153514313 BEARING, BALLBEARING, BALL
-
169810050 CAPLUGCAPLUG
-
175131793 PLATE, REED VALVEPLATE, REED VALVE
-
185131791 PLATE, REED BACKERPLATE, REED BACKER
-
197517276 SCREWSCREW
-
203513511 BEARING, BALLBEARING, BALL
-
215244477 PLATE, BEARINGPLATE, BEARING
-
227517797 SCREWSCREW
-
233514426 BEARING, BALLBEARING, BALL
-
243514477 BEARING, BALLBEARING, BALL
-
253514467 BEARING, NEEDLEBEARING, NEEDLE
