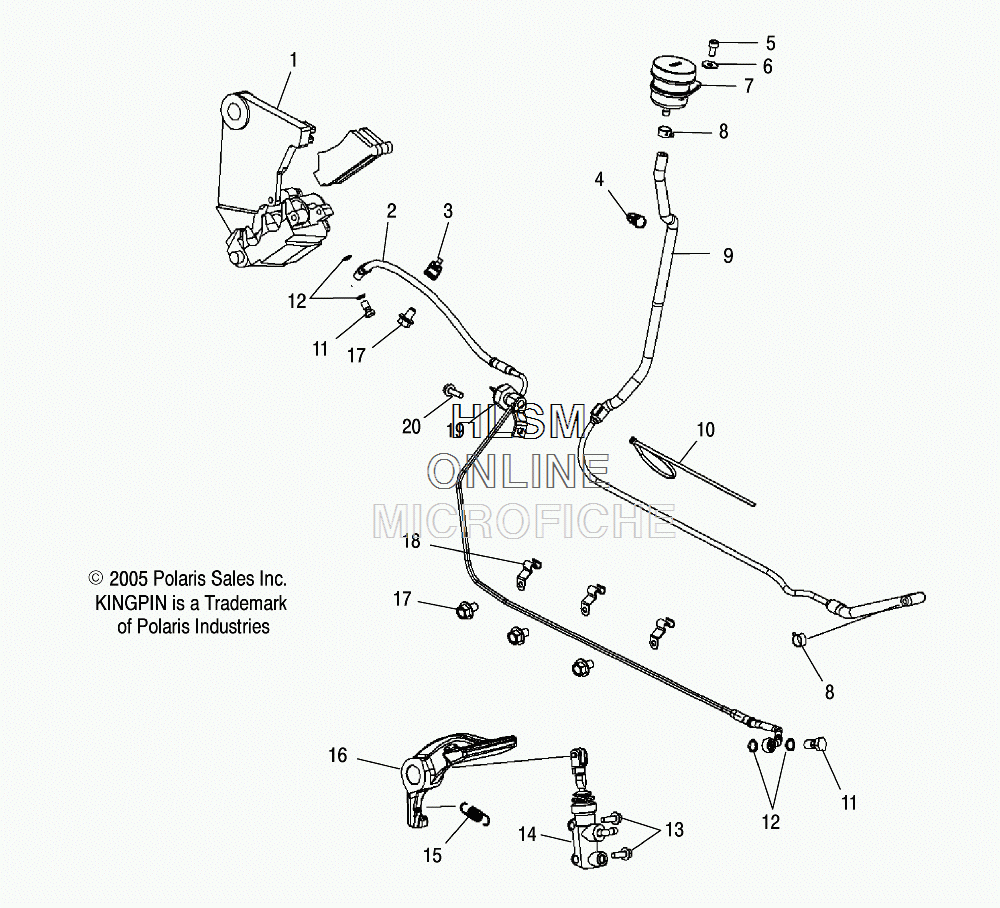

BRAKE- REAR для Polaris KINGPIN DELUXE (49 STATE) [V06CB26DAP] - 2006 года выпуска
-
№АртикулНазвание
-
11910619 ASM., CALIPER, REARASM., CALIPER, REAR
-
12202491 KIT, BRAKE PADKIT, BRAKE PAD
-
12201173 KIT, BLEEDER SCREW, BOOTKIT, BLEEDER SCREW, BOOT
-
12201174 KIT, BOOTS, CALIPER, REARKIT, BOOTS, CALIPER, REAR
-
12201175 KIT, PIN, RETAINER, SPRING, CLIPKIT, PIN, RETAINER, SPRING, CLIP
-
21910889 ASM., BRAKE HOSE, REAR (FOOTPEG)ASM., BRAKE HOSE, REAR (FOOTPEG)
-
21910850 ASM., BRAKE, HOSE, REAR (FLOORBOARD)ASM., BRAKE, HOSE, REAR (FLOORBOARD)
-
37081239 CLAMPCLAMP
-
45433140 DARTDART
-
57517405 SCREWSCREW
-
67556088 WASHER, FLATWASHER, FLAT
-
71930882 RESERVOIRRESERVOIR
-
87080904 CLAMP, HOSECLAMP, HOSE
-
91910772 HOSE, RESERVOIR (FOOTPEG)HOSE, RESERVOIR (FOOTPEG)
-
91910851 HOSE, RESERVOIR (FLOORBOARD)HOSE, RESERVOIR (FLOORBOARD)
-
107080138 CABLE TIECABLE TIE
-
111911008 BOLTBOLT
-
127556372 WASHER, COPPER SEALINGWASHER, COPPER SEALING
-
137518141 SCREW (FOOTPEG)SCREW (FOOTPEG)
-
137517391 SCREW (FLOORBOARD)SCREW (FLOORBOARD)
-
141910620 CYLINDER, MASTER, REAR (FOOTPEG)CYLINDER, MASTER, REAR (FOOTPEG)
-
141910762 CYLINDER, MASTER, REAR (FLOORBOARD)CYLINDER, MASTER, REAR (FLOORBOARD)
-
157042186 SPRING, EXT., BRAKE RETURN (FOOTPEG)SPRING, EXT., BRAKE RETURN (FOOTPEG)
-
157042288 SPRING, EXT., BRAKE PEDAL (FLOORBOARD)SPRING, EXT., BRAKE PEDAL (FLOORBOARD)
-
177518393 SCREWSCREW
-
187081271 CLIP, BRAKE LINECLIP, BRAKE LINE
-
194010372 SWITCH, PRESSURESWITCH, PRESSURE
-
207517704 SCREWSCREW
