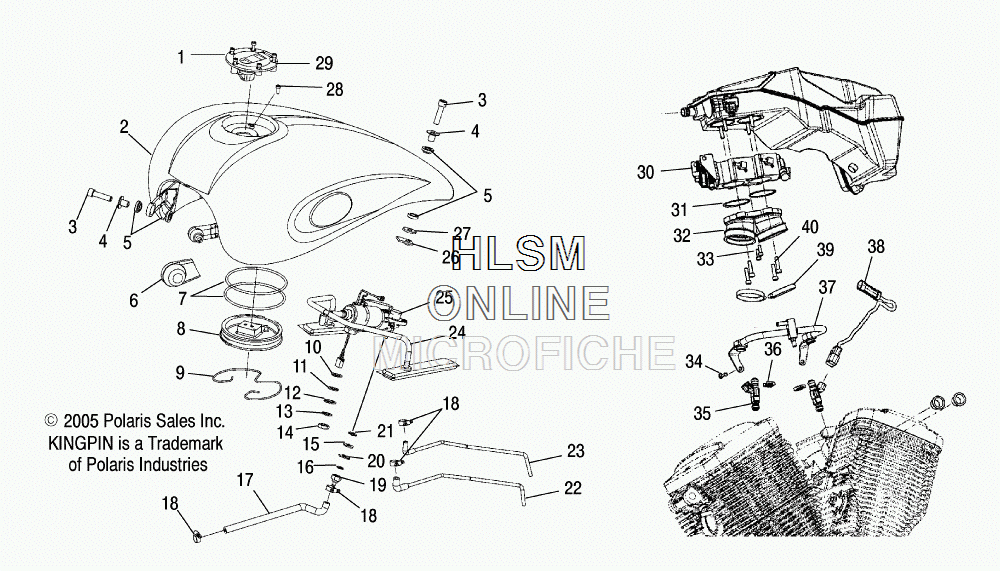

FUEL SYSTEM для Polaris KINGPIN (UK) [V06CB26UA] - 2006 года выпуска
-
№АртикулНазвание
-
17518086 SCREWSCREW
-
21014739-266 TANK, FUEL, NO SPINE (BLACK)TANK, FUEL, NO SPINE (BLACK)
-
21014739-293 TANK, FUEL, NO SPINE (INDY RED)TANK, FUEL, NO SPINE (INDY RED)
-
21014739-1216 TANK, FUEL, NO SPINE (SED/SB)TANK, FUEL, NO SPINE (SED/SB)
-
21014739-1217 TANK, FUEL, NO SPINE (GRPH/SILVER)TANK, FUEL, NO SPINE (GRPH/SILVER)
-
21014739-1218 TANK, FUEL, NO SPINE (PWH/SB/FL)TANK, FUEL, NO SPINE (PWH/SB/FL)
-
21014739-1219 TANK, FUEL, NO SPINE (SLV/BK/FL)TANK, FUEL, NO SPINE (SLV/BK/FL)
-
21014739-1231 TANK, FUEL, NO SPINE (SS BLUE)TANK, FUEL, NO SPINE (SS BLUE)
-
37517525 SCREWSCREW
-
45134160 BUSHINGBUSHING
-
55412480 BUSHING, FLANGEBUSHING, FLANGE
-
65412414 COVER, MOUNT, LEFT HANDCOVER, MOUNT, LEFT HAND
-
65412415 COVER, MOUNT, RIGHT HANDCOVER, MOUNT, RIGHT HAND
-
75412071 O-RINGO-RING
-
85133613 PLUGPLUG
-
97710515 RING, RETAININGRING, RETAINING
-
105412096 GROMMETGROMMET
-
115412095 GROMMETGROMMET
-
127556193 WASHERWASHER
-
137556192 WASHERWASHER
-
147547186 NUTNUT
-
155412093 GROMMETGROMMET
-
165411869 O-RINGO-RING
-
175412332 HOSEHOSE
-
187081151 CLAMP, HOSECLAMP, HOSE
-
192520251 FITTINGFITTING
-
207556131 WASHERWASHER
-
215412094 GROMMETGROMMET
-
225435764 LINE, WATER DRAINLINE, WATER DRAIN
-
235435763 LINE, FUEL VENTLINE, FUEL VENT
-
242520322 ASM., FUEL LINE, FILTERASM., FUEL LINE, FILTER
-
252520394 PUMP, FUELPUMP, FUEL
-
267547233 U-NUTU-NUT
-
277556260 WASHER, FLATWASHER, FLAT
-
287517845 SCREWSCREW
-
301253363 ASM., THROTTLE BODYASM., THROTTLE BODY
-
305411886 CAP, FITTINGCAP, FITTING
-
315412259 O-RINGO-RING
-
321253335 ADAPTER, THROTTLE BODYADAPTER, THROTTLE BODY
-
337516610 SCREWSCREW
-
347517405 SCREWSCREW
-
351253405 INJECTOR, FUELINJECTOR, FUEL
-
351500198 O-RINGO-RING
-
367670129 CLIP, INJECTOR CLOCKINGCLIP, INJECTOR CLOCKING
-
372520207 ASM., FUEL RAILASM., FUEL RAIL
-
397080656 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
407517259 SCREWSCREW
