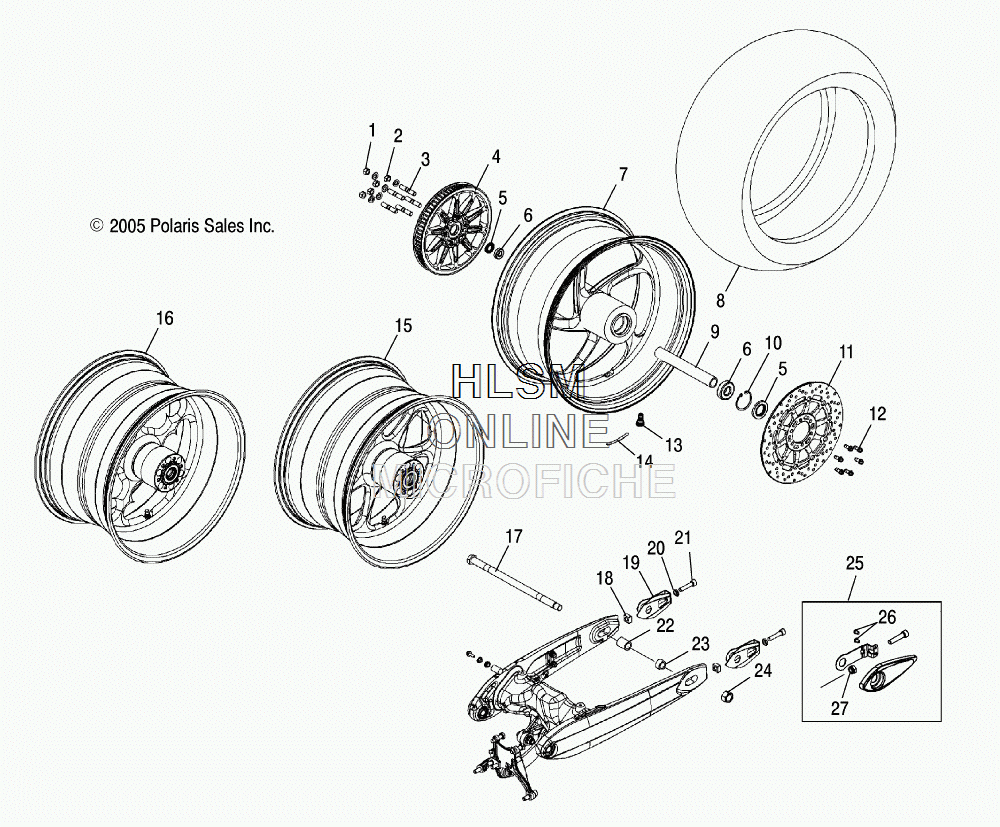

WHEEL- REAR (BILLET) для Polaris VEGAS JACKPOT (CALIFORNIA) [V06XB26LA] - 2006 года выпуска
-
№АртикулНазвание
-
17547232 NUTNUT
-
27556287 WASHER, FLATWASHER, FLAT
-
37518311 STUDSTUD
-
41332399-385 ASM., SPROCKET, DRIVEN, 70T, SILVERASM., SPROCKET, DRIVEN, 70T, SILVER
-
53610094 SEALSEAL
-
63514405 BEARING, BALLBEARING, BALL
-
71520721 ASM., WHEEL, BILLET, REAR (INCL. 5-10,13,14)ASM., WHEEL, BILLET, REAR (INCL. 5-10,13,14)
-
85412522 TIRE, REARTIRE, REAR
-
95334450 SPACER, BEARINGSPACER, BEARING
-
107710526 RING, RETAININGRING, RETAINING
-
111910623 ROTOR, BRAKE, FLOATINGROTOR, BRAKE, FLOATING
-
127518297 SCREWSCREW
-
131520995 VALVE, RIM, CHROMEVALVE, RIM, CHROME
-
141520618 WEIGHT, BALANCEWEIGHT, BALANCE
-
171014584 SPINDLESPINDLE
-
185134437 NUTNUT
-
195247599 BRACKET, AXLE, ADJUSTBRACKET, AXLE, ADJUST
-
207547284 NUTNUT
-
217518485 SCREWSCREW
-
225631581 SPACER, RIGHT HANDSPACER, RIGHT HAND
-
235631479 SPACER, BEARING, LEFT HANDSPACER, BEARING, LEFT HAND
-
247547226 NUT, HEX, FUJILOKNUT, HEX, FUJILOK
-
267517406 SCREWSCREW
-
277547268 NUT, NYLOKNUT, NYLOK
