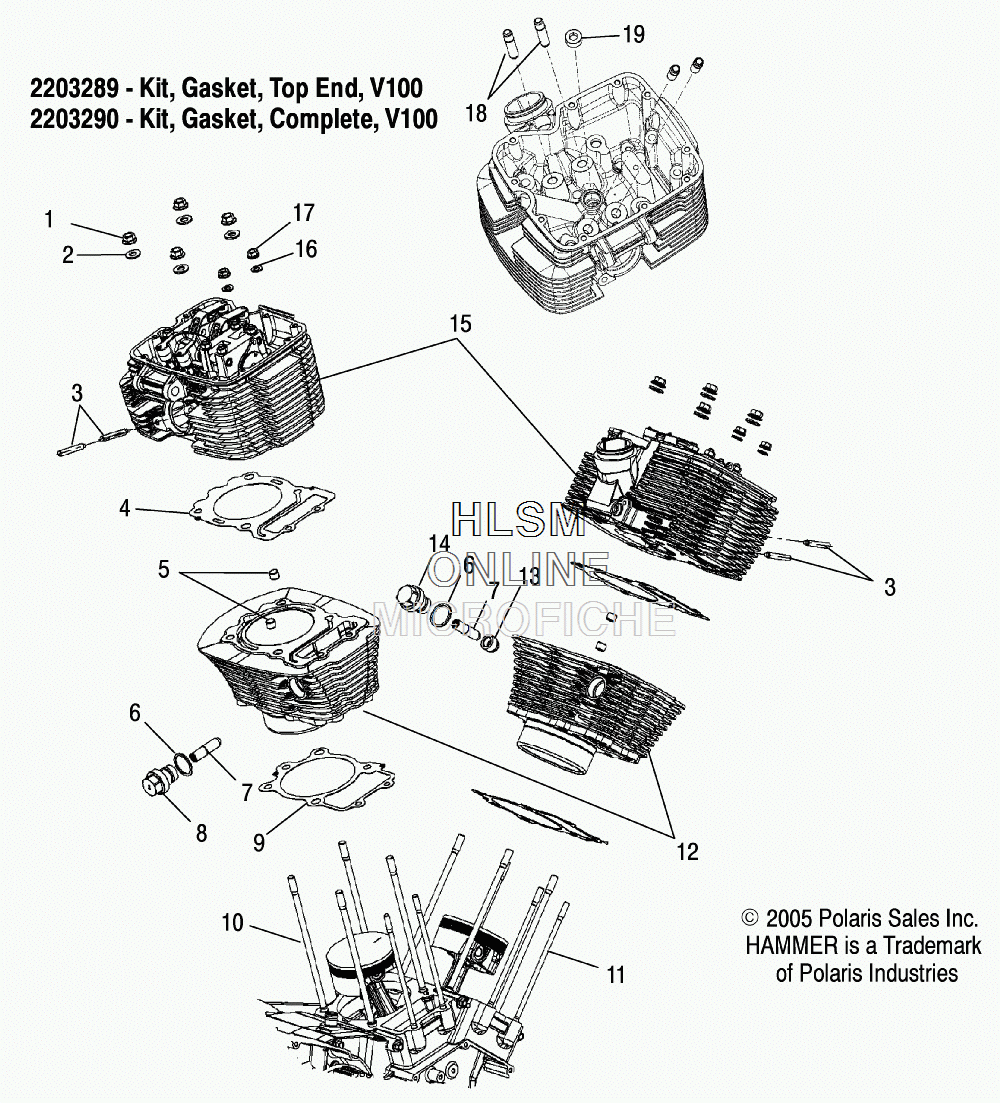

CYLINDER AND HEAD для Polaris VICTORY HAMMER (49 STATE) [V06HB26DA] - 2006 года выпуска
-
№АртикулНазвание
-
17547017 NUTNUT
-
27555986 WASHER, FLATWASHER, FLAT
-
35132040 STUD, EXHAUST MOUNTSTUD, EXHAUST MOUNT
-
45249360 GASKET, HEADGASKET, HEAD
-
57663008 DOWELDOWEL
-
67556310 WASHER, SEALINGWASHER, SEALING
-
73021517 TENSIONER, HYDRAULICTENSIONER, HYDRAULIC
-
83021538 PLUG, SCREW, REARPLUG, SCREW, REAR
-
95244365 GASKET, BASEGASKET, BASE
-
105134314 STUD, CYLINDER MOUNTINGSTUD, CYLINDER MOUNTING
-
115134315 STUD, CYLINDER MOUNTINGSTUD, CYLINDER MOUNTING
-
125130005 CYLINDER, BLACKCYLINDER, BLACK
-
125134497 CYLINDER, SILVERCYLINDER, SILVER
-
133021668 SLEEVE, DAMPER, CAM DRIVESLEEVE, DAMPER, CAM DRIVE
-
143021537 PLUG, SCREW, FRONTPLUG, SCREW, FRONT
-
153021547 HEAD, CYLINDER, FRONT (BLACK) (INCL. 18,19)HEAD, CYLINDER, FRONT (BLACK) (INCL. 18,19)
-
153021551 HEAD, CYLINDER, FRONT (SILVER) (INCL. 18,19)HEAD, CYLINDER, FRONT (SILVER) (INCL. 18,19)
-
153021548 HEAD, CYLINDER, REAR (BLACK) (INCL. 18,19)HEAD, CYLINDER, REAR (BLACK) (INCL. 18,19)
-
153021552 HEAD, CYLINDER, REAR (SILVER) (INCL. 18,19)HEAD, CYLINDER, REAR (SILVER) (INCL. 18,19)
-
167556043 WASHER, FLATWASHER, FLAT
-
177547014 NUTNUT
-
183021154 GUIDE, VALVEGUIDE, VALVE
-
197052315 PLUG, PIPEPLUG, PIPE
