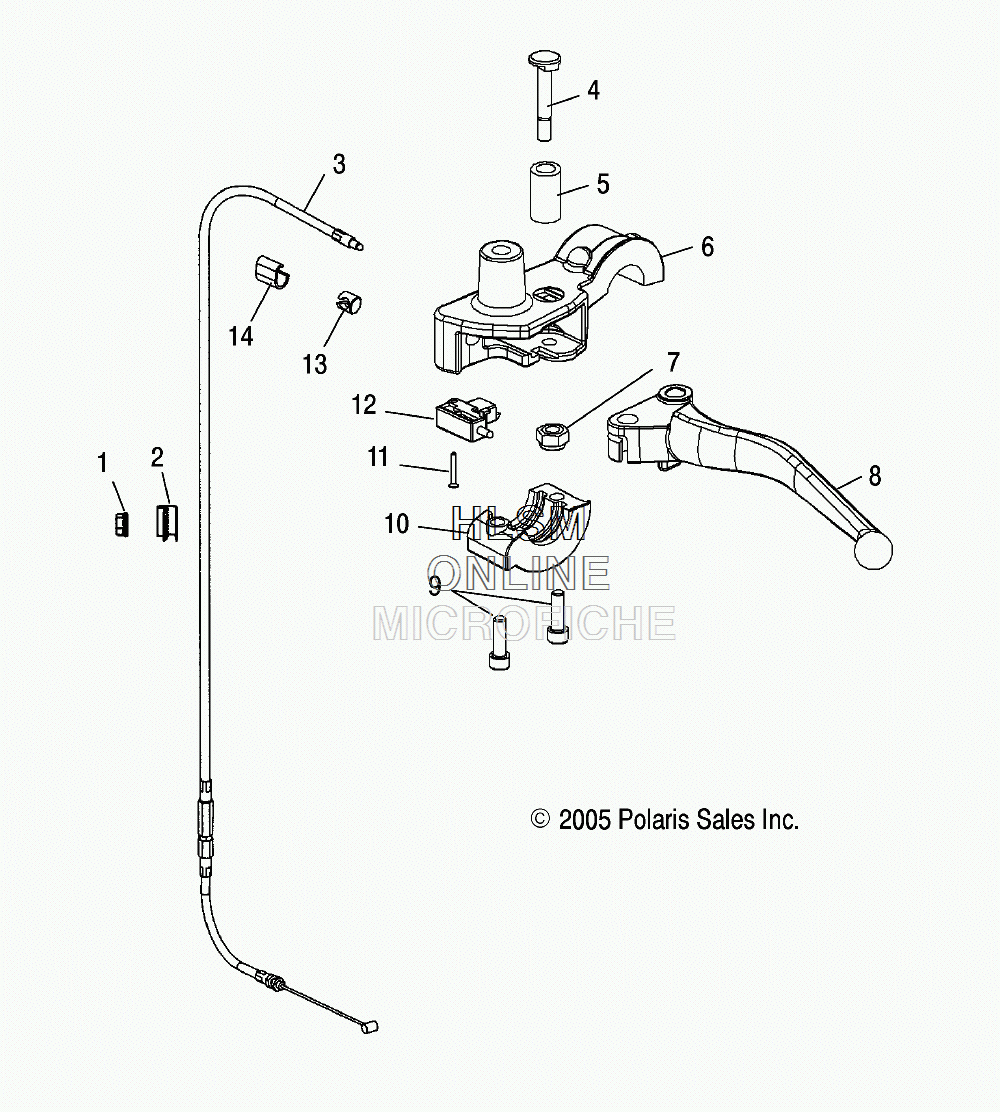

CLUTCH LEVER ASM. для Polaris VICTORY VEGAS (49 STATE) [V06GB26DA] - 2006 года выпуска
-
№АртикулНазвание
-
17710495 NUTNUT
-
27080998 CLAMP, VINYL COATEDCLAMP, VINYL COATED
-
37081120 CABLE, CLUTCH, EASY ADJUSTCABLE, CLUTCH, EASY ADJUST
-
45134478 PIN, CLUTCH LEVERPIN, CLUTCH LEVER
-
55334895 BUSHING, CLUTCH LEVERBUSHING, CLUTCH LEVER
-
65134475-385 BRACKET, CLUTCH, MIRROR, SILVERBRACKET, CLUTCH, MIRROR, SILVER
-
77547092 NUT, NYLOKNUT, NYLOK
-
85134477 LEVER, HAND, CLUTCHLEVER, HAND, CLUTCH
-
97517506 SCREWSCREW
-
105134476-385 CAP, CLUTCH, MIRROR, SILVERCAP, CLUTCH, MIRROR, SILVER
-
117518351 SCREWSCREW
-
124011050 SWITCHSWITCH
-
135433071 BUSHING, CLUTCH CABLE, UPPERBUSHING, CLUTCH CABLE, UPPER
-
145433070 CLIP, CLUTCH, FAST IDLE CABLESCLIP, CLUTCH, FAST IDLE CABLES
-
141322432-385 ASM., CLUTCH BRACKET, LEVER, SILVER (INCL. 4-12)ASM., CLUTCH BRACKET, LEVER, SILVER (INCL. 4-12)
