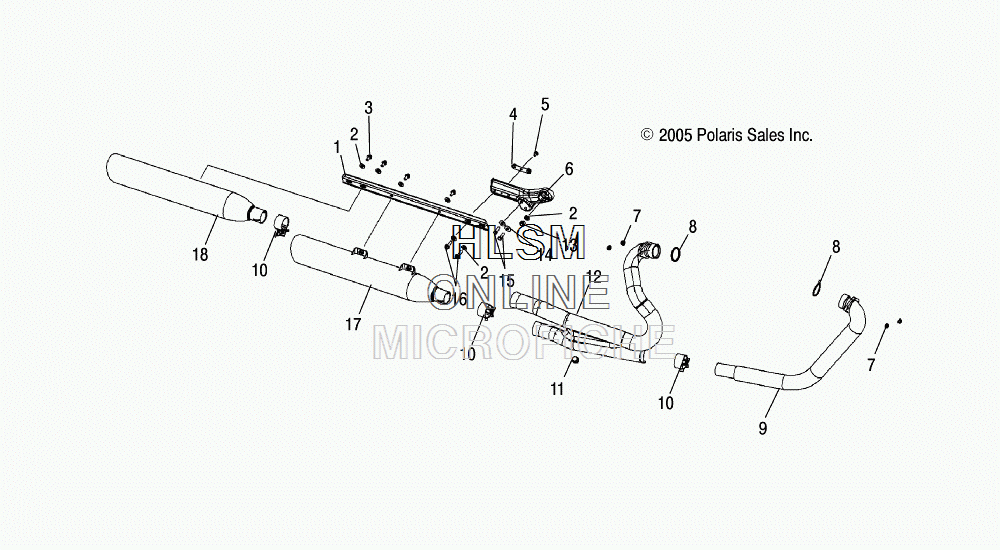

EXHAUST SYSTEM для Polaris KINGPIN (CANADA) [V07CB26CA] - 2007 года выпуска
-
№АртикулНазвание
-
15250030-236 BRACKET, MUFFLER TO MUFFLER, ZNCBRACKET, MUFFLER TO MUFFLER, ZNC
-
27556234 WASHER, FLATWASHER, FLAT
-
37518043 SCREWSCREW
-
41015173 PLATE, NUT, ZINCPLATE, NUT, ZINC
-
57518393 SCREWSCREW
-
65631652-472 SUPPORT, EXHAUSTSUPPORT, EXHAUST
-
77546805 NUTNUT
-
85246008 GASKETGASKET
-
91261398 ASM., EXHAUST HEADPIPE, FRONTASM., EXHAUST HEADPIPE, FRONT
-
91261414 SHIELD, FRONT,SHIELD, FRONT,
-
97080774 CLAMP, HEAT SHIELDCLAMP, HEAT SHIELD
-
107081179 CLAMPCLAMP
-
117518295 BOLTBOLT
-
121261397 ASM., HEADER PIPES, REARASM., HEADER PIPES, REAR
-
121261394 SHIELD, MID REARSHIELD, MID REAR
-
121241416 SHIELD, REAR CYL., UPPERSHIELD, REAR CYL., UPPER
-
121261417 SHIELD REAR CYL., LOWERSHIELD REAR CYL., LOWER
-
121261418 SHIELD, COLLECTORSHIELD, COLLECTOR
-
127080774 CLAMPCLAMP
-
121261547 HEADER PIPE W/ CATALYSTHEADER PIPE W/ CATALYST
-
137547268 NUT, NYLOKNUT, NYLOK
-
147556352 WASHER, FLATWASHER, FLAT
-
157518443 SCREWSCREW
-
167518391 SCREWSCREW
-
171261640 ASM., MUFFLER, FRONTASM., MUFFLER, FRONT
-
181261641 ASM., MUFFLER, REARASM., MUFFLER, REAR
