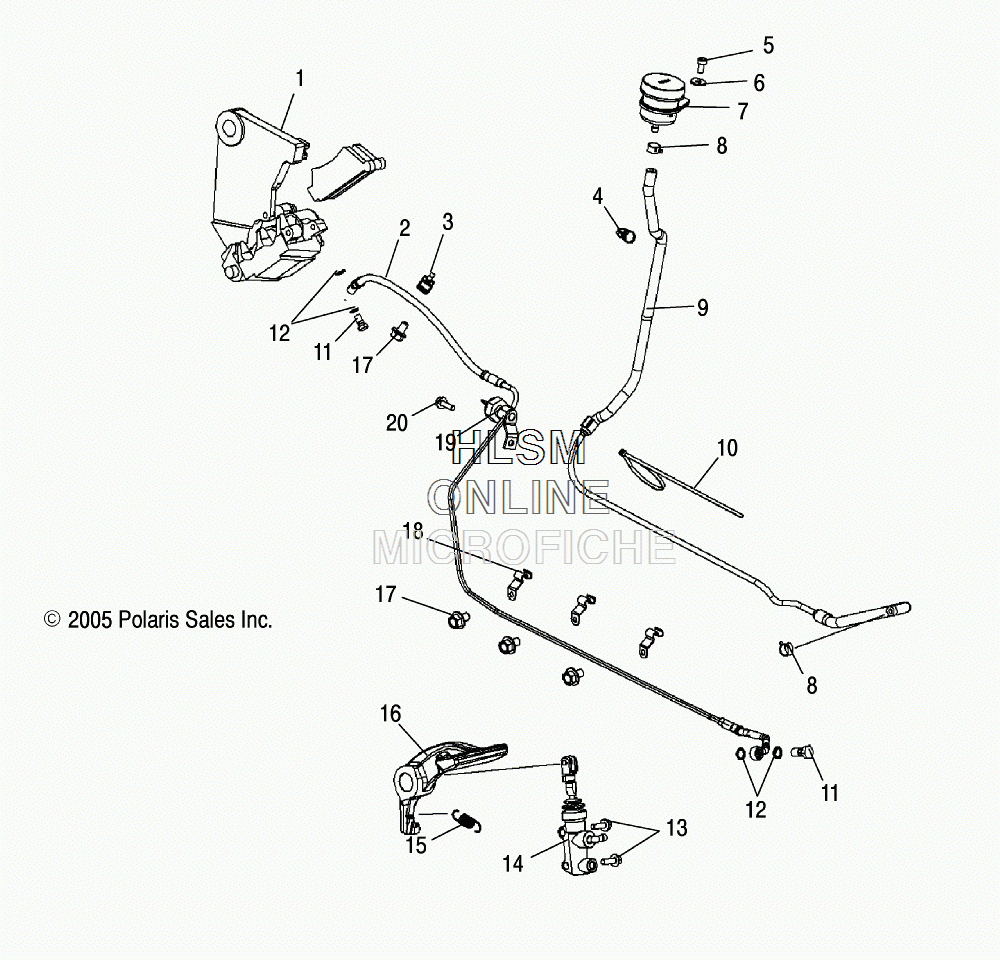

BRAKE- REAR для Polaris VEGAS JACKPOT (CALIFORNIA) [V07XB26LA] - 2007 года выпуска
-
№АртикулНазвание
-
11910619 ASM., CALIPER, REARASM., CALIPER, REAR
-
12202491 KIT, BRAKE PADKIT, BRAKE PAD
-
12201173 KIT, BLEEDER SCREW, BOOTKIT, BLEEDER SCREW, BOOT
-
12201174 KIT, BOOTS, CALIPER, REARKIT, BOOTS, CALIPER, REAR
-
12201175 KIT, PIN, RETAINER, SPRING, CLIPKIT, PIN, RETAINER, SPRING, CLIP
-
21910889 ASM., BRAKE HOSE, REARASM., BRAKE HOSE, REAR
-
37081239 CLIPCLIP
-
45433140 DARTDART
-
57517405 SCREWSCREW
-
67556088 WASHER, FLATWASHER, FLAT
-
71930882 RESERVOIRRESERVOIR
-
87080904 CLAMP, HOSECLAMP, HOSE
-
91910772 HOSE, RESERVOIRHOSE, RESERVOIR
-
107080138 CABLE TIECABLE TIE
-
111911008 BOLT, BANJOBOLT, BANJO
-
127556372 WASHER, COPPER SEALINGWASHER, COPPER SEALING
-
137518141 SCREWSCREW
-
141910620 CYLINDER, MASTER, REARCYLINDER, MASTER, REAR
-
157042186 SPRING, EXT, BRAKE RETURNSPRING, EXT, BRAKE RETURN
-
177518393 SCREWSCREW
-
187081271 CLIP, BRAKE-HARD LINECLIP, BRAKE-HARD LINE
-
194010372 SWITCH, PRESSURESWITCH, PRESSURE
-
207517704 SCREWSCREW
