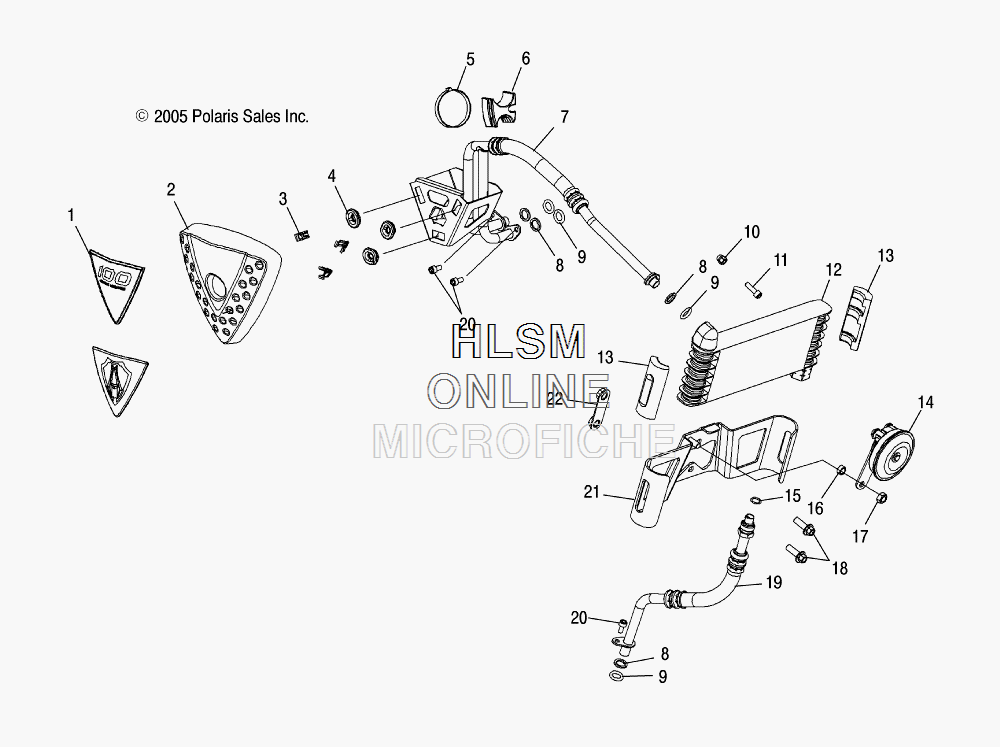

OIL COOLING для Polaris VEGAS JACKPOT NESS (49 STATE) [V07BC26DN] - 2007 года выпуска
-
№АртикулНазвание
-
17171549 BADGE, OIL LINE COVER, NESSBADGE, OIL LINE COVER, NESS
-
25245659 COVER, IGNITION/COILCOVER, IGNITION/COIL
-
37670136 CLIPCLIP
-
45433833 GROMMET, SIDE COVERGROMMET, SIDE COVER
-
57080906 CABLE TIECABLE TIE
-
65412188 MOUNT, RUBBERMOUNT, RUBBER
-
75334192 LINE, INLETLINE, INLET
-
87556113 WASHER, FLATWASHER, FLAT
-
95411356 O-RINGO-RING
-
107547115 NUT, ACORNNUT, ACORN
-
117517384 SCREWSCREW
-
121240145-385 COOLER, OIL (SILVER)COOLER, OIL (SILVER)
-
121240145-266 COOLER, OIL (BLACK)COOLER, OIL (BLACK)
-
135412105 ISOLATOR, COOLERISOLATOR, COOLER
-
144010739 HORN, DISKHORN, DISK
-
155412027 O-RINGO-RING
-
165133647 SPACER, HORNSPACER, HORN
-
177547076 NUTNUT
-
187517839 SCREWSCREW
-
195334191 LINE, OUTLETLINE, OUTLET
-
207517405 SCREWSCREW
-
211014761-385 BRACKET, OIL COOLER (SILVER)BRACKET, OIL COOLER (SILVER)
-
211014761-266 BRACKET, OIL COOLER (BLACK)BRACKET, OIL COOLER (BLACK)
-
221014760-408 PLATE, NUTPLATE, NUT
