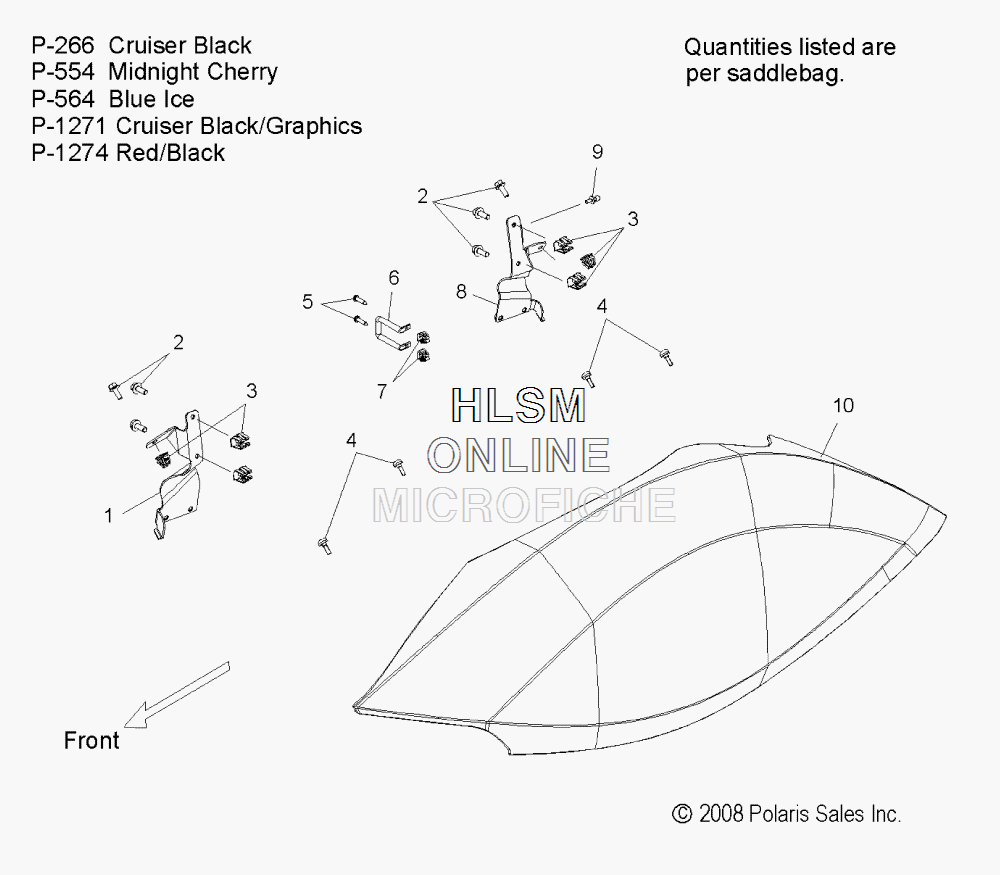

BODY- SADDLEBAG LID для Polaris VISION NESS (CALIFORNIA) [V09SC36] - 2009 года выпуска
-
№АртикулНазвание
-
11015966 HINGE, EXTENDER, FRONT, LEFT HANDHINGE, EXTENDER, FRONT, LEFT HAND
-
11015968 HINGE, EXTENDER, FRONT, RIGHT HANDHINGE, EXTENDER, FRONT, RIGHT HAND
-
27518591 SCREWSCREW
-
37081304 CLIP, EXPANSIONCLIP, EXPANSION
-
47518518 SCREWSCREW
-
57518590 SCREWSCREW
-
65335316 HOOP, LATCH, STRIKERHOOP, LATCH, STRIKER
-
77547324 NUT, PALNUT, PAL
-
81015964 HINGE, EXTENDER, REAR, LEFT HANDHINGE, EXTENDER, REAR, LEFT HAND
-
81015965 HINGE, EXTENDER, REAR, RIGHT HANDHINGE, EXTENDER, REAR, RIGHT HAND
-
95135170 STUD, BALL, DAMPERSTUD, BALL, DAMPER
-
105437637-266 LID, OUTER SADDLEBAG, LEFT HAND (BLACK) (INCL. 4,11)LID, OUTER SADDLEBAG, LEFT HAND (BLACK) (INCL. 4,11)
-
105437637-554 LID, OUTER SADDLEBAG, LEFT HAND (CHERRY) (INCL. 4,11)LID, OUTER SADDLEBAG, LEFT HAND (CHERRY) (INCL. 4,11)
-
105437637-1245 LID, OUTER SADDLEBAG, LEFT HAND (GRAY) (INCL. 4,11)LID, OUTER SADDLEBAG, LEFT HAND (GRAY) (INCL. 4,11)
-
105437637-564 LID, OUTER SADDLEBAG, LEFT HAND (BLUE ICE) (INCL. 4,11)LID, OUTER SADDLEBAG, LEFT HAND (BLUE ICE) (INCL. 4,11)
-
105437638-266 LID, OUTER SADDLEBAG, RIGHT HAND (BLACK) (INCL. 4,11)LID, OUTER SADDLEBAG, RIGHT HAND (BLACK) (INCL. 4,11)
-
105437638-554 LID, OUTER SADDLEBAG, RIGHT HAND (CHERRY) (INCL. 4,11)LID, OUTER SADDLEBAG, RIGHT HAND (CHERRY) (INCL. 4,11)
-
105437638-1245 LID, OUTER SADDLEBAG, RIGHT HAND (GRAY) (INCL. 4,11)LID, OUTER SADDLEBAG, RIGHT HAND (GRAY) (INCL. 4,11)
-
105437638-564 LID, OUTER SADDLEBAG, RIGHT HAND (BLUE ICE) (INCL. 4,11)LID, OUTER SADDLEBAG, RIGHT HAND (BLUE ICE) (INCL. 4,11)
