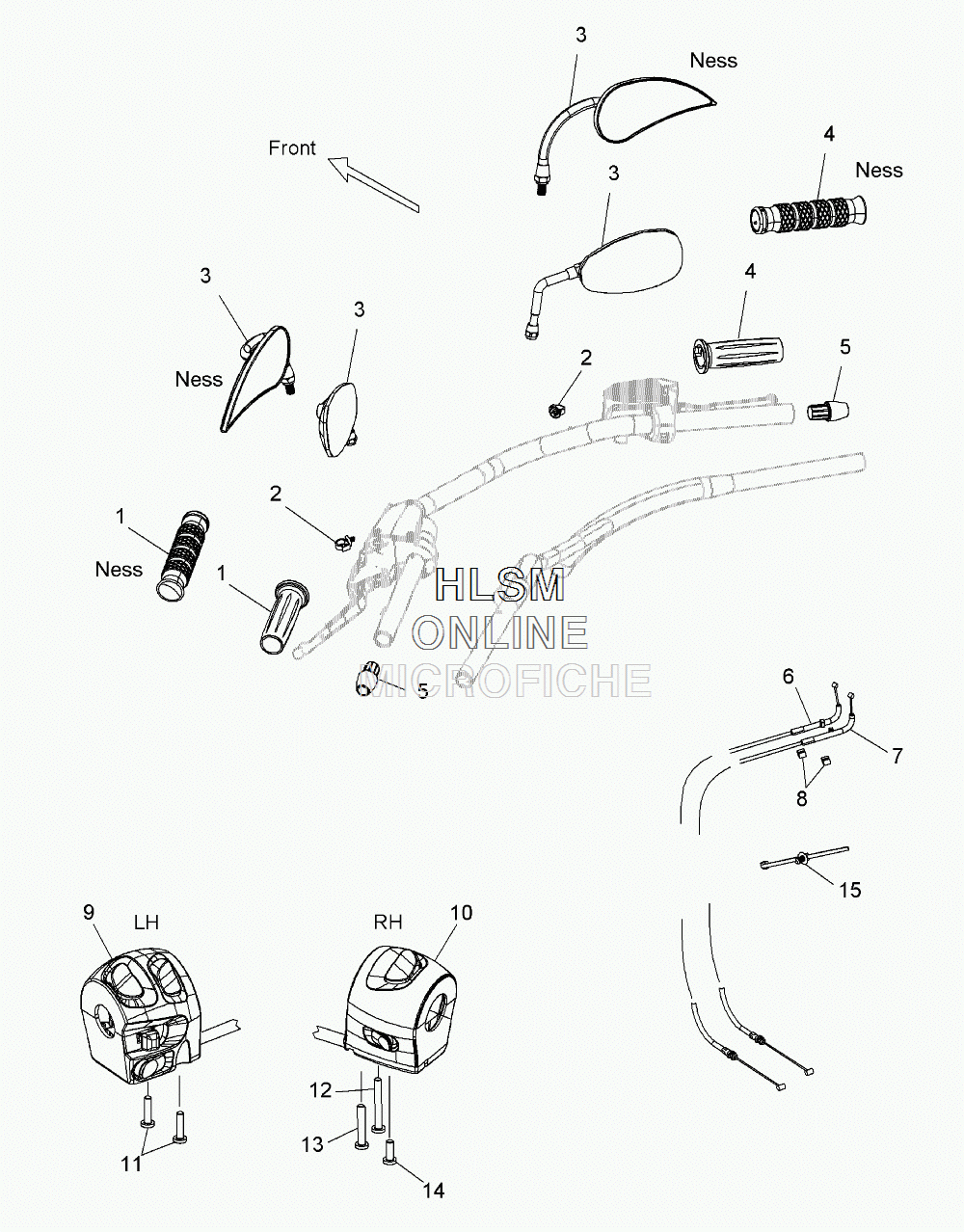

STEERING- CONTROLS AND MIRRORS для Polaris JACKPOT (EU) [V10XB36EJP] - 2010 года выпуска
-
№АртикулНазвание
-
15413019 GRIP, HANDLEBAR, 1 INCH, LEFT HANDGRIP, HANDLEBAR, 1 INCH, LEFT HAND
-
27670116 CLIP, ROUTING (QTY 4 FOR NESS)CLIP, ROUTING (QTY 4 FOR NESS)
-
32877740-156 ASM., MIRROR, LEFT HAND, CHROME (EU)ASM., MIRROR, LEFT HAND, CHROME (EU)
-
32877741-056 ASM., MIRROR, RIGHT HAND, CHROME (EU)ASM., MIRROR, RIGHT HAND, CHROME (EU)
-
37547455-156 NUT, MIRROR, CHROME (1 PER MIRROR)NUT, MIRROR, CHROME (1 PER MIRROR)
-
37517456-156 NUT, MIRROR, LEFT HAND THREAD, CHROME (1 PER MIRROR)NUT, MIRROR, LEFT HAND THREAD, CHROME (1 PER MIRROR)
-
45413501 GRIP, HANDLEBAR, 1 INCH, RIGHT HANDGRIP, HANDLEBAR, 1 INCH, RIGHT HAND
-
55437103 CAP, HANDLEBARCAP, HANDLEBAR
-
67081452 CABLE, THROTTLE, PULLCABLE, THROTTLE, PULL
-
77081448 CABLE, THROTTLE, PUSHCABLE, THROTTLE, PUSH
-
85433039 CLIP, THROTTLE CABLECLIP, THROTTLE CABLE
-
94011994-067 SWITCH, CONTROL, LEFT HAND, BLACKSWITCH, CONTROL, LEFT HAND, BLACK
-
104011357-067 SWITCH, CONTROL, RIGHT HAND, BLACKSWITCH, CONTROL, RIGHT HAND, BLACK
-
117517817 SCREW, 20MM (SS)SCREW, 20MM (SS)
-
117517816 SCREW, 20MM (BLACK)SCREW, 20MM (BLACK)
-
127518889 SCREW, 55MM (SS)SCREW, 55MM (SS)
-
127518890 SCREW, 55MM (BLACK)SCREW, 55MM (BLACK)
-
137518887 SCREW, 40MM (SS)SCREW, 40MM (SS)
-
137518888 SCREW, 40MM (BLACK)SCREW, 40MM (BLACK)
-
147518885 SCREW, 12MM (SS)SCREW, 12MM (SS)
-
147518886 SCREW, 12MM (BLACK)SCREW, 12MM (BLACK)
-
157081496 CLIP, ROUTINGCLIP, ROUTING
