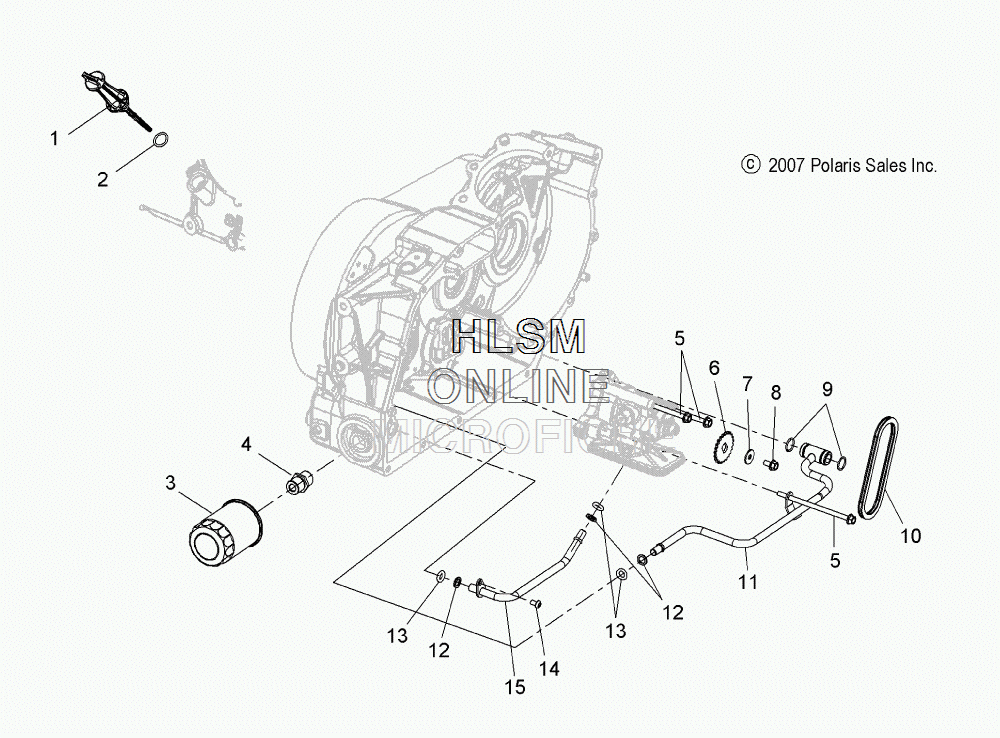

OIL PUMP MOUNTING AND DIPSTICK для Polaris CROSS ROADS CUSTOM [V11BB36] - 2011 года выпуска
-
№АртикулНазвание
-
15434349 DIPSTICK, OIL FILLDIPSTICK, OIL FILL
-
25411331 O-RING-17.12X2.62O-RING-17.12X2.62
-
32540086 FILTER, OILFILTER, OIL
-
42540115 NIPPLENIPPLE
-
57517256 SCREW, HXFLHD, M6X115SCREW, HXFLHD, M6X115
-
63222150 SPROCKET, 23TSPROCKET, 23T
-
77556054 WASHER, FLATWASHER, FLAT
-
87517257 SCREW, HXFLGHD, M6X12SCREW, HXFLGHD, M6X12
-
95412002 O-RING, 15.60X1.78O-RING, 15.60X1.78
-
103221173 CHAIN-OP, SILENT 6.35 PITCHCHAIN-OP, SILENT 6.35 PITCH
-
112520790 TUBE, FILTER/CRANKCASETUBE, FILTER/CRANKCASE
-
127556026 WASHERWASHER
-
135411231 O-RINGO-RING
-
147517406 SCREWSCREW
-
152521074 TUBE, OIL, OUTLETTUBE, OIL, OUTLET
