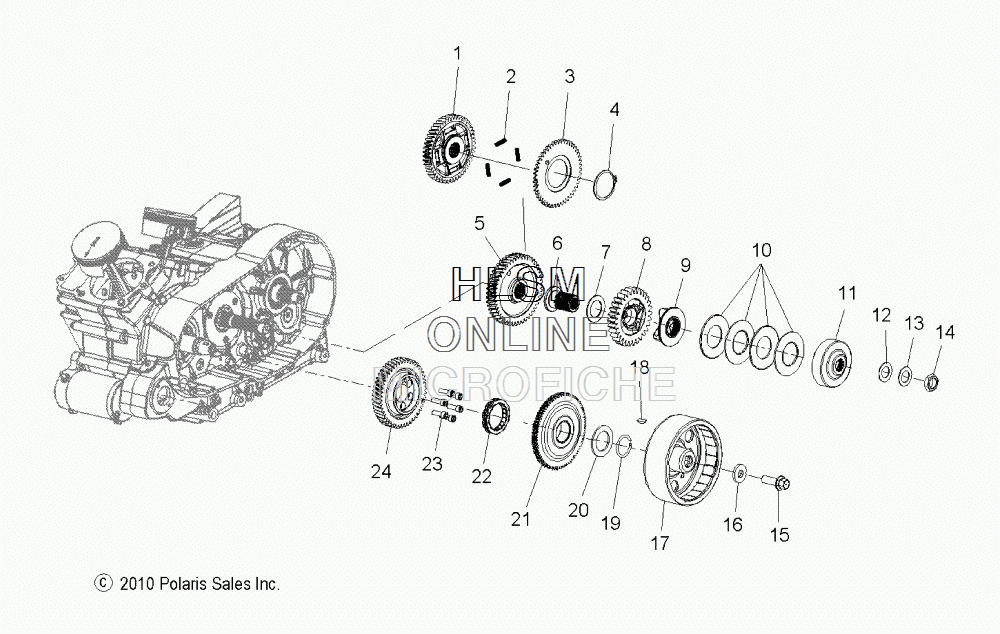

PRIMARY DRIVE для Polaris HAMMER S [V11HS36] - 2011 года выпуска
-
№АртикулНазвание
-
16230440 GEAR, BALANCE SHAFT, DRIVENGEAR, BALANCE SHAFT, DRIVEN
-
27042096 SPRING, SPLIT GEARSPRING, SPLIT GEAR
-
36230470 GEAR, SPLIT, BALANCE SHAFT, DRIVENGEAR, SPLIT, BALANCE SHAFT, DRIVEN
-
47710529 RING, RETAINING 55MMRING, RETAINING 55MM
-
51332830 ASM., SPLIT GEAR (INCL. 1-4)ASM., SPLIT GEAR (INCL. 1-4)
-
65137204 SHAFT, COMPENSATORSHAFT, COMPENSATOR
-
77556539 WASHER-35.5X55X2 SPC NITRIDEDWASHER-35.5X55X2 SPC NITRIDED
-
86230469 GEAR, COMPENSATOR, DRIVEGEAR, COMPENSATOR, DRIVE
-
95135550 SLIDER, COMPENSATORSLIDER, COMPENSATOR
-
107042019 SPRING, BELLEVILLE, COMPENSATORSPRING, BELLEVILLE, COMPENSATOR
-
115137561 RETAINER, COMPENSATOR, ONE PIECERETAINER, COMPENSATOR, ONE PIECE
-
127556518 WASHER, FLATWASHER, FLAT
-
137556519 SPRING-DISC, 2093A, 40X20.4X2.5SPRING-DISC, 2093A, 40X20.4X2.5
-
147547477 NUT-HEX, M20X1.5, 32 A/F, STAKINGNUT-HEX, M20X1.5, 32 A/F, STAKING
-
157518008 BOLT-OIL JET, M12X35BOLT-OIL JET, M12X35
-
167555987 WASHER, FLATWASHER, FLAT
-
174012716 ROTOR, CHARGINGROTOR, CHARGING
-
187721122 KEY, WOODRUFFKEY, WOODRUFF
-
197710490 RING, RETAINING, 35 DEGREERING, RETAINING, 35 DEGREE
-
207556237 WASHER, FLATWASHER, FLAT
-
211015167 ASM., CRANKSHAFT GEAR STARTER DRIVEASM., CRANKSHAFT GEAR STARTER DRIVE
-
224060156 CLUTCH, STARTER DRIVECLUTCH, STARTER DRIVE
-
237517260 SCREW, SOCHD, M8X25SCREW, SOCHD, M8X25
-
246230471 GEAR-CRANKSHAFT, PRI, HCL, 6 BOLTGEAR-CRANKSHAFT, PRI, HCL, 6 BOLT
