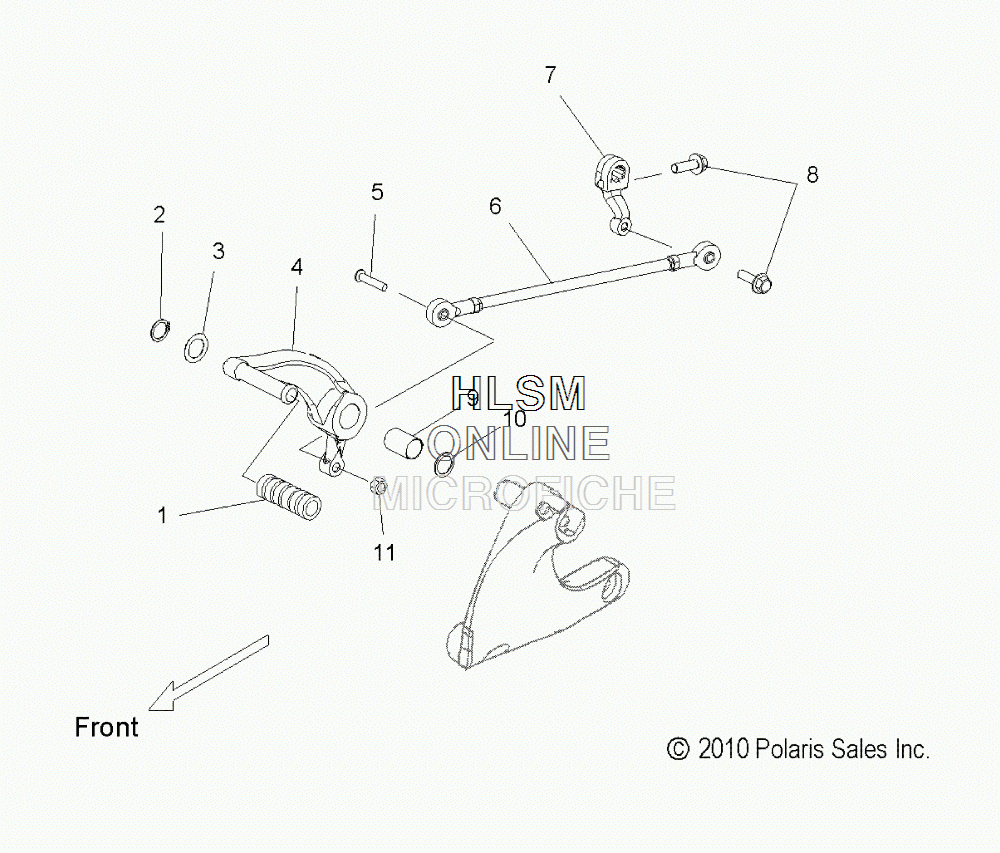

SHIFT LINKAGE для Polaris HAMMER [V11HA36] - 2011 года выпуска
-
№АртикулНазвание
-
15411364 PAD, SHIFT PEDALPAD, SHIFT PEDAL
-
27710499 RING, RETAINING , EXT, 14.7X1RING, RETAINING , EXT, 14.7X1
-
37556075 WASHER-SHIM, 25.4X.46X16.7WASHER-SHIM, 25.4X.46X16.7
-
45136122-385 PEDAL, SHIFT LEVER (SILVER)PEDAL, SHIFT LEVER (SILVER)
-
57518535 BOLT-M6X1.0X25, TORX, PNHD (BLACK)BOLT-M6X1.0X25, TORX, PNHD (BLACK)
-
61013957 ASM., SHIFTER LINKAGEASM., SHIFTER LINKAGE
-
75133530 LEVER, SHIFTERLEVER, SHIFTER
-
87518141 SCREW-HXFLGHD, M6X20, ZPCSCREW-HXFLGHD, M6X20, ZPC
-
93514490 BUSHING, FOOT PEDALBUSHING, FOOT PEDAL
-
107556273 WASHER-WAVE, M19 (10)WASHER-WAVE, M19 (10)
-
117547230 NUT-HEXHD, M6, DIN980VNUT-HEXHD, M6, DIN980V
