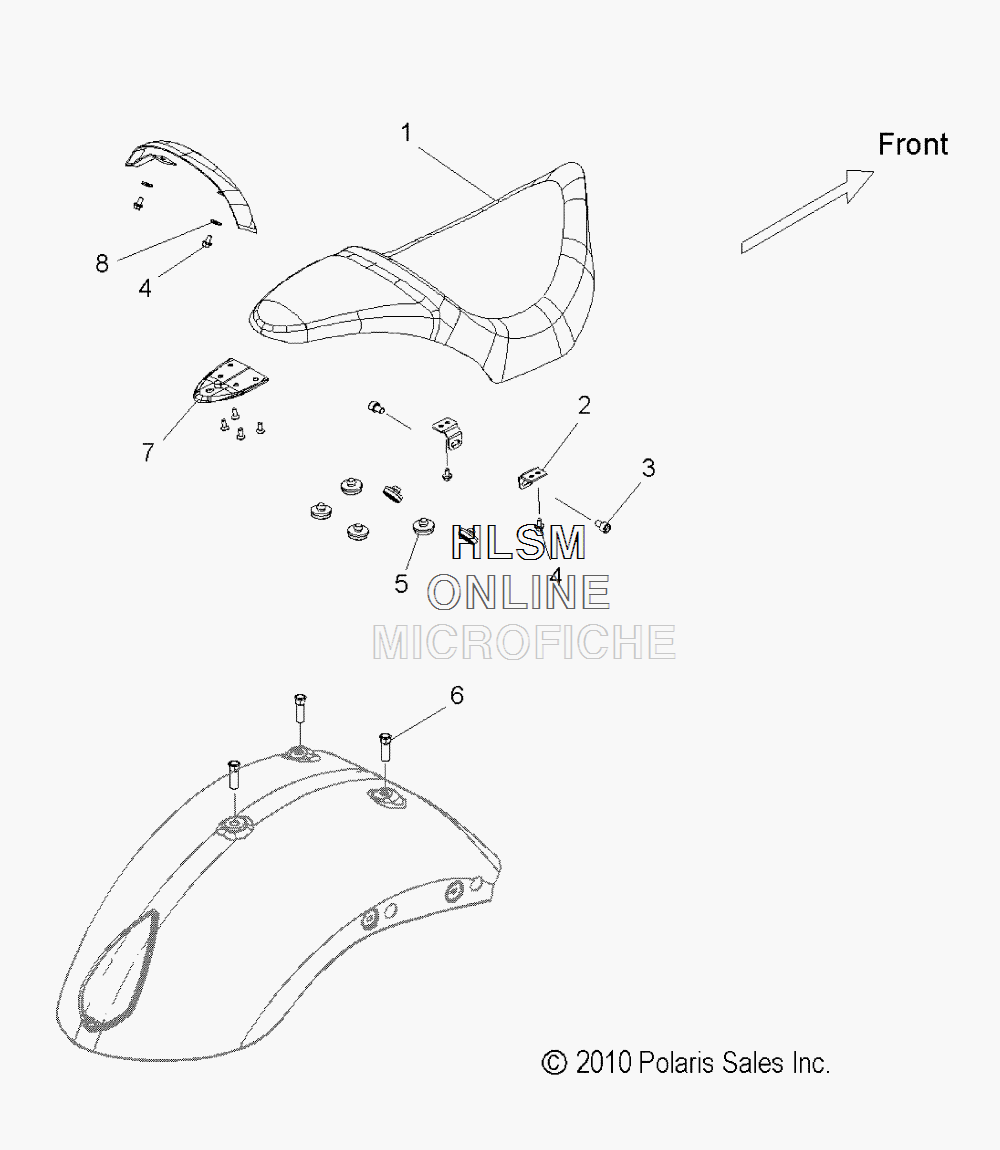

SEAT для Polaris JACKPOT [V11XB36] - 2011 года выпуска
-
№АртикулНазвание
-
12684209 ASM., SEAT, ONE PIECE (INCL. 2, 4, 5, 7-9)ASM., SEAT, ONE PIECE (INCL. 2, 4, 5, 7-9)
-
25251417 BRACKET, DRIVER SEAT, LOBRACKET, DRIVER SEAT, LO
-
37517410 SCREW, SOCHD, M8X20SCREW, SOCHD, M8X20
-
47517886 SCREW-HXFLGHD, M6X12 (10)SCREW-HXFLGHD, M6X12 (10)
-
55413388 BUMPER, RUBBERBUMPER, RUBBER
-
67518528 INSERT, HEX-M8X1.25, CLOSED ENDINSERT, HEX-M8X1.25, CLOSED END
-
75252632 BRACKET, SEAT, ONE PIECEBRACKET, SEAT, ONE PIECE
-
87556064 WASHER, FLATWASHER, FLAT
