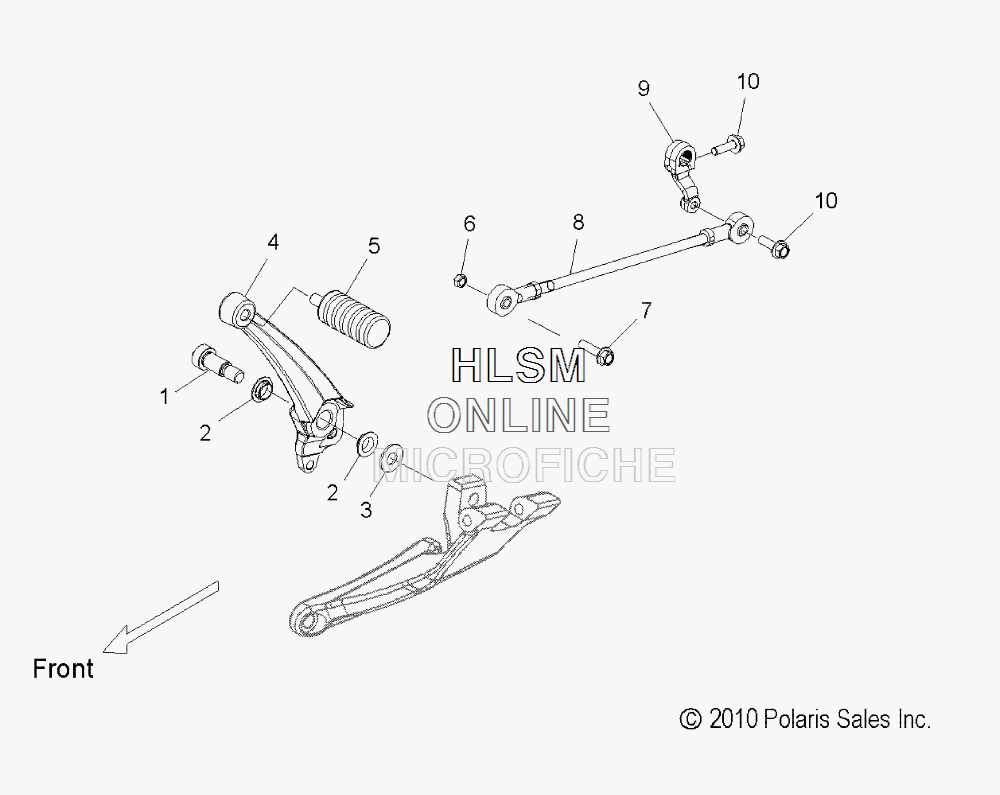

SHIFT LINKAGE для Polaris KINGPIN 8-BALL [V11CB36] - 2011 года выпуска
-
№АртикулНазвание
-
17519176 SCREW-SH-M12/M10X1.5X16 12.9 RIESCREW-SH-M12/M10X1.5X16 12.9 RIE
-
25438318 BUSHING-12X14X5X20BUSHING-12X14X5X20
-
37556575 WASHER-9.91X22.23X1.6 SPCWASHER-9.91X22.23X1.6 SPC
-
45137197-266 PEDAL, SHIFTER LEVER (CRUISER BLACK)PEDAL, SHIFTER LEVER (CRUISER BLACK)
-
55412493 PEG, SHIFTERPEG, SHIFTER
-
67547230 NUT-HEXHD, M6, DIN980VNUT-HEXHD, M6, DIN980V
-
77518329 SCREW-HXFLGHD, M6X25SCREW-HXFLGHD, M6X25
-
81016619 ASM., SHIFTER LINKAGE 196MMASM., SHIFTER LINKAGE 196MM
-
95133530 LEVER, SHIFTERLEVER, SHIFTER
-
107518141 SCREW-HXFLGHD, M6X20, ZPCSCREW-HXFLGHD, M6X20, ZPC
