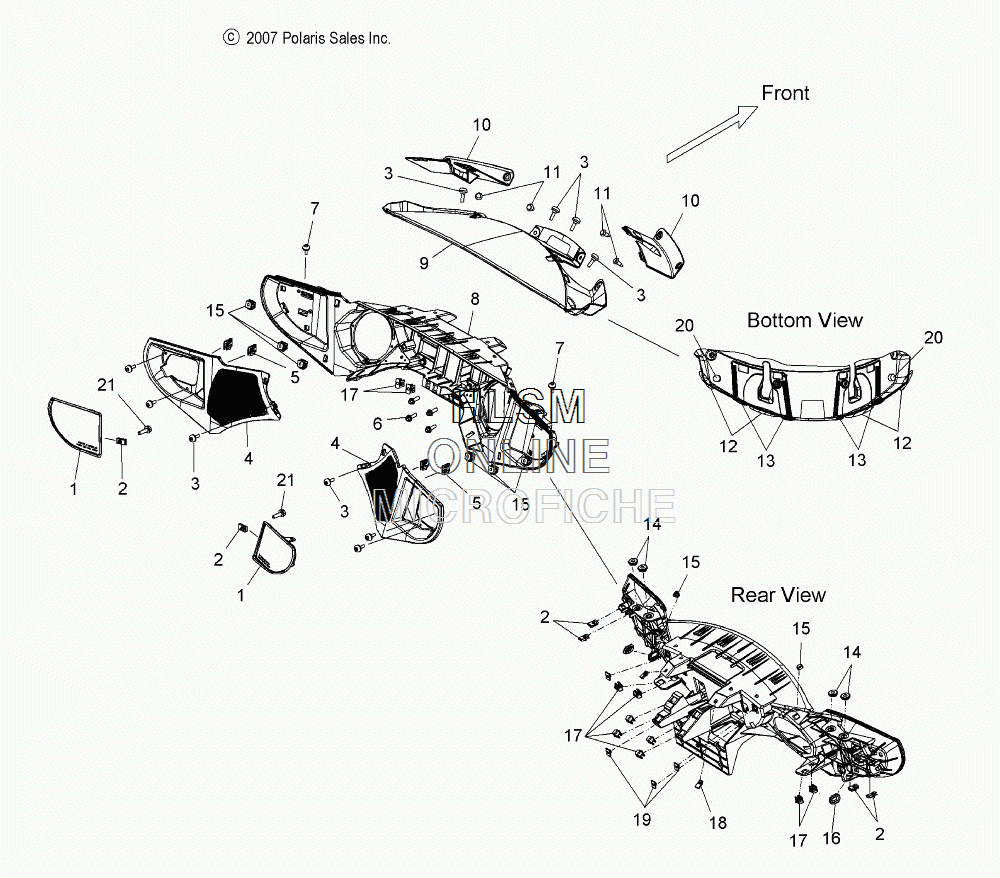

INSTRUMENT PANEL AND VISOR для Polaris VISION TOUR PREMIUM [V11SW36] - 2011 года выпуска
-
№АртикулНазвание
-
12633928 MIRROR (LEFT)MIRROR (LEFT)
-
12633929 MIRROR (RIGHT)MIRROR (RIGHT)
-
27081305 U-CLIP, SPEED NUTU-CLIP, SPEED NUT
-
37518518 SCREW-M4.2X1.40, 12, HEX, BUTT, SHLDSCREW-M4.2X1.40, 12, HEX, BUTT, SHLD
-
45436295 GRILL, SPEAKER, MIP (LEFT)GRILL, SPEAKER, MIP (LEFT)
-
45436296 GRILL, SPEAKER, MIP (RIGHT)GRILL, SPEAKER, MIP (RIGHT)
-
57081303 CLIP, TRIMCLIP, TRIM
-
67518569 SCREW-HXFLGHD, M8X25, 0600086SCREW-HXFLGHD, M8X25, 0600086
-
77518484 SCREW-M6X1.0, 15, HEX, BUTT, SHLDSCREW-M6X1.0, 15, HEX, BUTT, SHLD
-
85436294 SUPPORT, MAIN INSTRUMENT PANELSUPPORT, MAIN INSTRUMENT PANEL
-
95436995 VISOR, MIPVISOR, MIP
-
105437012 PANEL, ACCESS, VISOR (LEFT)PANEL, ACCESS, VISOR (LEFT)
-
105437013 PANEL, ACCESS, VISOR (RIGHT)PANEL, ACCESS, VISOR (RIGHT)
-
117661855 RIVET-TUFLOK, .315-.325X.787 (50RIVET-TUFLOK, .315-.325X.787 (50
-
125521770 TRIM, VISORTRIM, VISOR
-
135813263 FELT, VISORFELT, VISOR
-
145413055 GROMMET, ROUNDGROMMET, ROUND
-
157547324 NUT, PAL M14NUT, PAL M14
-
165413037 GROMMET, SIDE COVERGROMMET, SIDE COVER
-
177081304 CLIP, EXPANSIONCLIP, EXPANSION
-
187547386 NUT-CLIP, U SPEED, M4.2NUT-CLIP, U SPEED, M4.2
-
197547300 T-NUT M6T-NUT M6
-
205813262 FOAM, VISORFOAM, VISOR
-
217518141 SCREW-HXFLGHD, M6X20, ZPCSCREW-HXFLGHD, M6X20, ZPC
