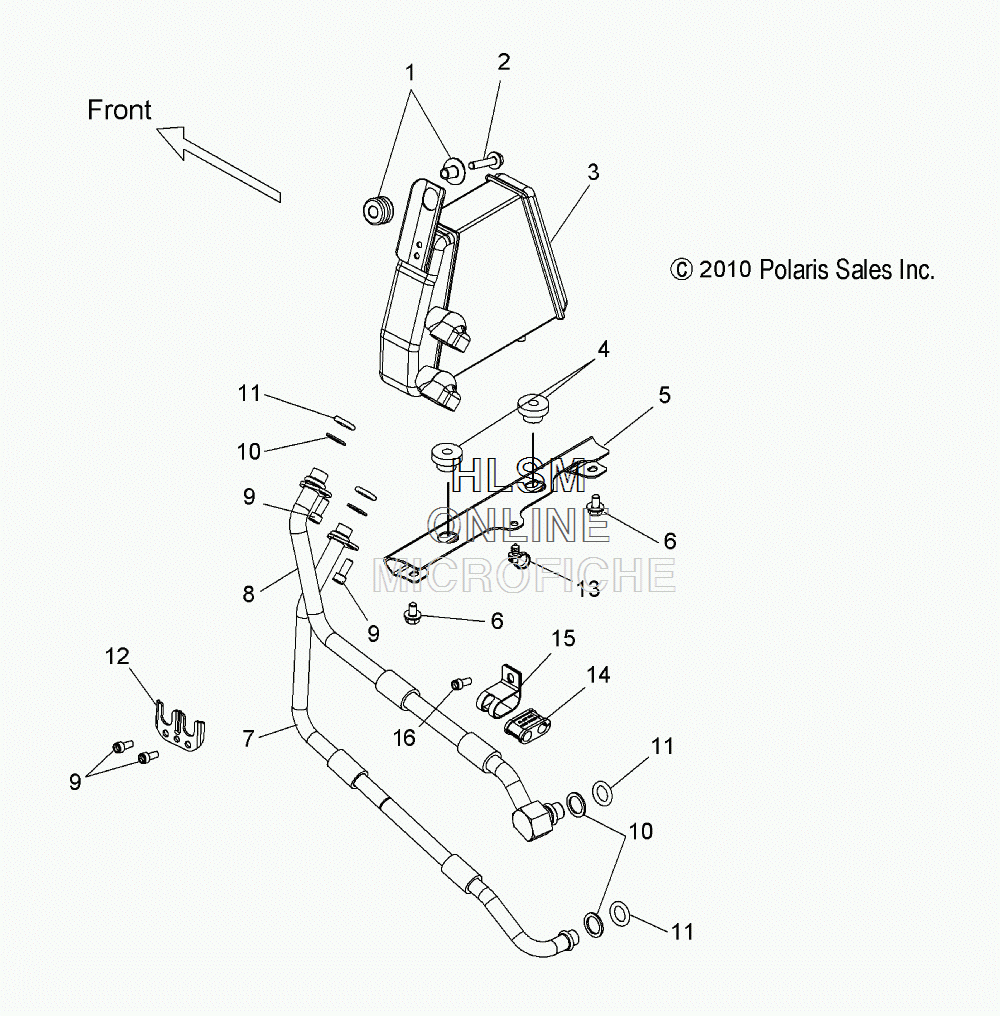

OIL COOLING SYSTEM для Polaris HIGHBALL - 2012 года выпуска
-
№АртикулНазвание
-
11016169 ASM., GROMMET AND INSERTASM., GROMMET AND INSERT
-
27518713 SCREWSCREW
-
31240266-266 COOLER, OIL (INCL. 1)COOLER, OIL (INCL. 1)
-
45410584 BUSHING, MOUNT, RADIATOR, LOWERBUSHING, MOUNT, RADIATOR, LOWER
-
55251230-266 BRACKET, OIL COOLER, LOWER, BLACKBRACKET, OIL COOLER, LOWER, BLACK
-
67518393 SCREWSCREW
-
72520780 ASM., OIL LINE, ENGINE OUTASM., OIL LINE, ENGINE OUT
-
82520781 ASM., OIL LINE, ENGINE INASM., OIL LINE, ENGINE IN
-
97517272 SCREWSCREW
-
107556380 RING, BACK-UPRING, BACK-UP
-
115411356 O-RINGO-RING
-
125135945 RETAINER, OIL LINERETAINER, OIL LINE
-
137081334 CABLE TIE, TREE MOUNTCABLE TIE, TREE MOUNT
-
145437099 GROMMET, OIL LINEGROMMET, OIL LINE
-
157081457 CLAMP, OIL LINECLAMP, OIL LINE
-
167519061 SCREWSCREW
