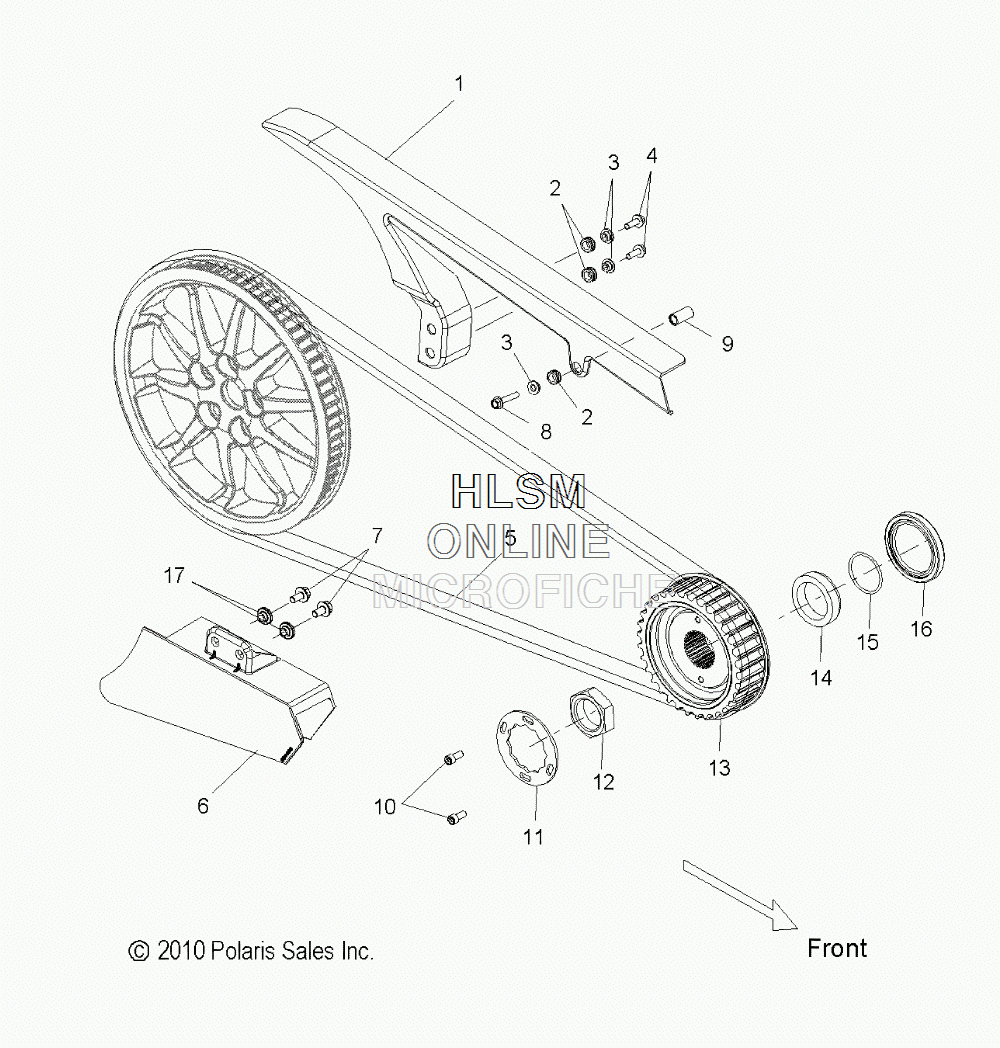

DRIVE SPROCKET AND BELT AND GUARDS для Polaris JACKPOT - 2012 года выпуска
-
№АртикулНазвание
-
15247719-156 GUARD, BELT, UPPER, CHROMEGUARD, BELT, UPPER, CHROME
-
25412265 GROMMETGROMMET
-
35134082 SLEEVESLEEVE
-
47518141 SCREWSCREW
-
53211102 BELT, DRIVEBELT, DRIVE
-
65438684 GUARD, BELTGUARD, BELT
-
77518591 SCREWSCREW
-
87518591 SCREWSCREW
-
95135339 SPACERSPACER
-
107517272 SCREWSCREW
-
115244114 WASHER, LOCKWASHER, LOCK
-
127547311 NUT, HEX, THINNUT, HEX, THIN
-
131332392 SPROCKET, DRIVE, 33T, WIDESPROCKET, DRIVE, 33T, WIDE
-
145137737 SPACER, SPROCKETSPACER, SPROCKET
-
155413767 O-RINGO-RING
-
163610118 SEAL, LIPSEAL, LIP
-
175134083 SLEEVESLEEVE
